150mm Thyristor Synchronous 2.3m Reinforcing Mesh Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-3000A
Minimum Order Quantity One set
Packaging Details The reinforcing mesh welding machine is nude packing. Need one 40 ft container to load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Reinforcing Mesh Welding Machine Wire Diameter 5-12mm
Voltage 380V/220V/415V/440V Weight 13T
Warranty 1 Year Welding Speed 40--65 Times Per Min
Mesh Length Max. 12m Control System Panasonic PLC
Falling Mesh System Automatic Falling Mesh Labor Required Two Workers
High Light

2.3m Reinforcing Mesh Machine


150mm Reinforcing Mesh Machine


Thyristor Synchronous mesh panel welding machine

Leave a Message
Product Description

Mesh Size 150*150mm Bridge Construction Rebar Reinforced Mesh Welding Machine



Rebar Reinforced Mesh Welding Machine Introduction:


The rebar reinforced mesh welding machine is our latest develop mesh welding machine.

The Rebar Reinforced Mesh Welding Machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.The multiple increase of more than 10 cm and 50 mm ensures fast and seamless transformation of welding specifications.Accurate and fast welding to ensure quality.


Rebar Reinforced Mesh Welding Machine Features:


1. The rebar reinforced mesh welding machine is controlled by computer and PLC programmable controller, with high degree of automation. Imported automatic digital servo motor system ensures accurate grid size. Weldable cold-rolled ribbed steel bar, hot-rolled ribbed steel bar,      hot-rolled disc steel bar, cold-rolled round steel bar and other materials with wide adaptability.

2. The transformer, SCR, upper and lower electrodes and other welding systems adopt forced water cooling and are equipped with flow protection devices, so that the unit can work continuously and reliably.  According to the user's capacity, welding can be used once or in batches, with great flexibility.

3. The blanking device adopts mechanical transmission to reduce labor intensity and improve production efficiency. Automatically locate the mesh length shear mechanism, and cut off the network pieces without error. The longitudinal bar is designed with a line divider, which is flexible and convenient for changing the mesh, ensuring the accuracy of the finished mesh.

4. The rebar reinforced mesh welding machine adopts automatic falling mesh panel device. When finish one piece of reinforcing mesh. The falling mesh device will make the mesh panel falling automatically. In this way. Save labor cost and increase efficiency.


Rebar Reinforced Mesh Welding Machine Technical Parameters:


Model  DX-GWC-2500A DX-GWC-3000A DX-GWC-3300A
Width of mesh 2500mm 3000mm 3300mm
Line wire space 100-300mm(adjustable) 100-300mm(adjustable) 100-300mm(adjustable)
Cross wire space 100-300mm(adjustable) 100-300mm(adjustable) 100-300mm(adjustable)
Wire diameter  5-12mm 5-12mm 5-12mm
Welding electrodes 26PCS  30PCS  32PCS
Welding transformer 125KVA*13PCS 125KVA*15PCS 125KVA*16PCS
Welding press type Mechanical  Mechanical  Mechanical
Industrial voltage  220V/380V/415V/440V 220V/380V/415V/440V 220V/380V/415V/440V
Welding way  Thyristor synchronous control Thyristor synchronous control Thyristor synchtonous control
Line wire type Pre-cut  Pre-cut  Pre-cut
Cross wire type  pre-cut  Pre-cut  Pre-cut
Welding speed  40-65 times per min  40-65 times per min  40-65 times per min
Overall dimension  40m*4.2m*2.3m 40m*4.7m*2.3m 40m*5.2m*2.3m
Total weight  11T 13T 15T
Labor required  2 workers  2 workers  2 workers
Falling mesh way Automatic  Automatic  Automatic



Rebar Reinforced Mesh Welding Machine Applications:


Widely used in highways, high-speed railways, water conservancy projects, Bridges, tunnels, subways, container terminals, airport runways and so on.

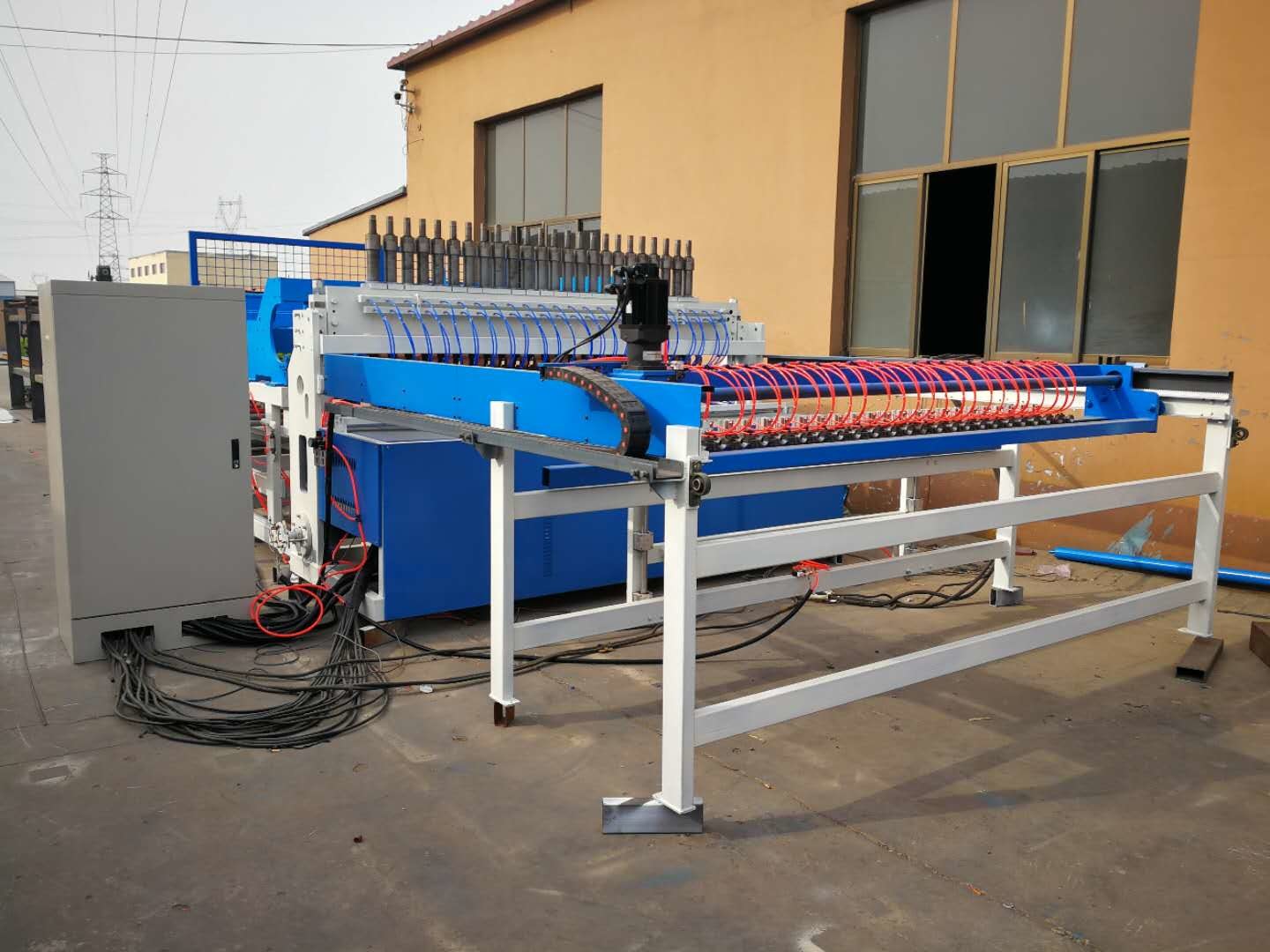

150mm Thyristor Synchronous 2.3m Reinforcing Mesh Machine 0

150mm Thyristor Synchronous 2.3m Reinforcing Mesh Machine 1

150mm Thyristor Synchronous 2.3m Reinforcing Mesh Machine 2

150mm Thyristor Synchronous 2.3m Reinforcing Mesh Machine 3
