| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-25-3000 |
| Minimum Order Quantity | One set |
| Packaging Details | 1.the main machine will be plastic package and fixed by steel wire in the container; 2.also can be packed as you need. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Wire Diamond Mesh Making Machine | Wire Diameter | 1.3-4.0mm |
|---|---|---|---|
| Mesh Width | 3000mm | Mesh Size | 25*25mm-100*100mm |
| Servo Motor | 3.8kw | Mesh Length | 60m |
| Wire Feeding Way | Single Wire | Control System | PLC |
| Weight | 1500kg | Machine Dimension | 5500*1430*1600mm |
| Machine Workshop Area | 10m*5m | Labor Cost | One Person |
| Highlight | PVC Diamond Mesh Wire Making Machine,60m Diamond Mesh Wire Making Machine,3.8kw chain link manufacturing machine |
||
Product Description
PVC Coated Wire Galvanized Wire Single Wire Feed Chain Link Fence Making Machine
Chain Link Fence Making Machine Introduction:
This Chain Link Fence Making Machine is controlled by PLC system adopts single wire making principle.And all the processes of spinning,cutting,locking and rolling are fully automated.The advantages of this machine also include easy manipulation,stable operation,simple maintenance,low price and high production efficiency.And due to these good performances,this machine has been widely used in many countries.
Chain Link Fence Making Machine Advantages:
1. Full-Automatic Control
2. Easy Manipulation
3. Stable Operation
4. Simple Maintenance
5. High Quality
6. High Production efficiency
7. Low Price
Chain Link Fence Making Machine Detailed Features:
1. This type of machine adopts a single-sided spiral into the wire to weave the wire mesh. And equipped with automatic locking edge and automatic roll net system. Easy to operate and debug.
2. The machines are controlled by touch screen, famous brand electrical components. Easy to operate. Electrical appliances are durable and have a low failure rate. We have adopted the Servo Motor(Delta, Panasonic, Housine) and Reducer. Work efficiency increased by three times, saving electricity and high output.
3. The machines can implement three types of automatic locking: Knuckled and twisted, or knuckle, or twisted.
4. The machines are equipped with a rolling net device, which can reduce costs, of course, it can be selected according to your needs.
5. The single wire diamond mesh making machine is suitable for galvanized wire,black iron wire.steel wire,PVC coated wire.
6. The single wire diamond mesh making machine need worskhop area size 10m*5m. Only need one person to operate. And one person can operate two machines. Save labor cost.
Chain Link Fence Making Machine Technical Parameters:
| Model | DX-25-2000 | DX-25-3000 | DX-25-4000 |
| Wire diameter | 1.3-4.0mm | 1.3-4.0mm | 1.3-4.0mm |
| Mesh size | 25-100mm | 25-100mm | 25-100mm |
| Mesh width | 2000mm | 3000mm | 4000mm |
| Production capacity | 70-80m²/h | 80-120m²/h | 80-150m²/h |
| Mesh length | 60m | 60m | 60m |
| Mesh size | Knuckled or twisted | Knuckled or twisted | Knuckled or twisted |
| Servo motor | 3.8kw | 3.8kw | 3.8kw |
| Labor cost | One person | One person | One person |
| Raw material | Galvanized wire, PVC coated wire | Galvanized wire, PVC coated wire, | Galvanized wire, PVC coated wire, |
| Machine size | 3.2*2.2*1.7m | 4.2*2.2*1.7m | 5.2*2.2*1.7m |
| Machine weight | 1200kg | 1500kg | 1800kg |
| workshop size | 10m*5m | 10m*5m | 10m*5m |
Chain Link Fence Making Machine Applications:
Building, stadium fence, highway fence, workshop, workshop, warehouse barrier and stone cage and slope greening, pipeline insulation with net.
It is the choice product of beautify urban environment project.
Chain Link Fence Making Machine Packing:

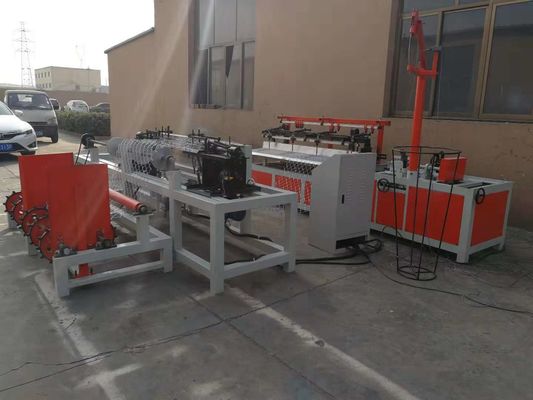

Chain Link Fence Making Machine photos:
