3m Fence Mesh Welding Machine
|Place of Origin||China|
|Minimum Order Quantity||One set|
|Packaging Details||The Curved Welded Fence Mesh Welding Production Line is nude packing. Need one 40 feet container to load.|
|Delivery Time||30 working days|
|Payment Terms||L/C, T/T|
|Supply Ability||8 sets per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Fence Mesh Welding Machine||Level Of Automation||Fully Automatic|
|Wire Diameter||3.0-6.0mm||Width Of Mesh||2500mm|
|Mesh Hole Size||50-300mm (adjustable)||Length Of Mesh||Max 3000mm|
|Welding Transformer||160KVA*8PCS||Production Capacity||60PCS Per Hour|
|Labor Cost||Only One Worker||Dimension||14*3.2*1.8m(L*W*H)|
3m Fence Mesh Welding Machine,
touch screen Fence Mesh Welding Machine,
7.5KW wire mesh making machine
Mesh Length 3m Full-Automatic Curved Welded Fence Mesh Welding Production Line
Curved Welded Fence Mesh Welding Production Line Introduction:
The curved welded fence mesh welding production line is also called 3D fully automatic welded fence mesh panel welding machine. The production line is new designed fully automatic machine to make curved fence mesh panel. The curved welded fence mesh welding production line only need one worker to operate. Save labor cost and increase production capacity. Now many clients are intersted in curved welded fence mesh welding production line. We have export to Russia,Poland,Kazakhstan,Vietnam,Saudi Arabia,Brazil. Thailand. The curved welded fence mesh welding production is best choice for you to produce fence mesh panel.
Curved Welded Fence Mesh Welding Production Line Features:
1. The biggest faeture of the curved welded fence mesh welding production line is full-automatic. High automation.
2. The Curved Welded Fence Mesh Welding Production Line adopts cent-control and welding time are composed of Panasonic PLC program system.The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable.
3. The line wire and cross wire are pre-cut by wire straightening cutting machine, Then put the line wire in the hopper device. Pre-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the stepping motor control, brake motor wheels and the cross wire will fallen automatically from the hopper.
4. The welding transformer adopts big power at 160KVA every one, which can ensure the welding quality in good condition and adopt water cooling system.
5. The welded fence mesh panel production line can make different mesh size according to your required mesh size. The line wire space from 50mm to 300mm, And the cross wire space from 50mm to 300mm. The line wire space is adjustable by measure the distance by ruler. The cross wire space is adjustable by set on the touch screen. input the cross wire mesh size and quantity of mesh size. Very easy and convenient to operate.

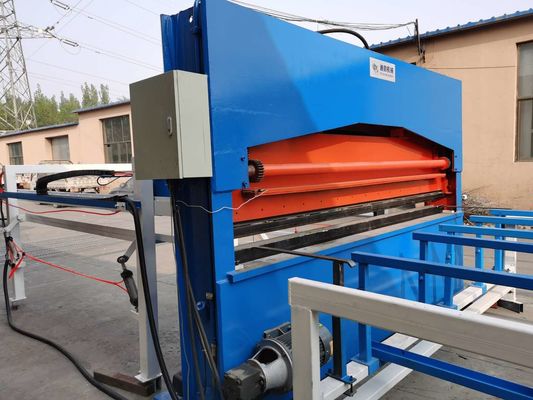

6. The curved welded fence mesh welding production line is equipped with mesh bending machine can produce 3D fence panel automatically.
7. The mahcine will bending the mesh automatically when the fence mesh is under the bending machine. After bending. The pullig mesh car will pull out the fence mesh automatically. Then drop the fence mesh automatically. This is fully automatic complete operation.
8. The bending machine can bend the mesh panel in the beginning, in the middle and at the end. The bending machine is controlled by the control cabinet. Finally. The mesh pulling car will pull out the fence mesh panel automatically.And lands on the collect mesh car automatically.
Curved Welded Fence Mesh Welding Production Line Technical Parameters:
|Width of mesh panel||2000mm||2500mm||3000mm|
|Length of mesh panel||Max 3000mm||Max 3000mm||Max 3000mm|
|Welding speed||45-65 times per min||45-65 times per min||45-65 times per min|
|Control system||PLC and touch screen||PLC and touch screen||PLC and touch screen|
|Production capacity||60 PCS per hour||60PCS per hour||60PCS per hour|
|Main motor power||5.5KW||7.5KW||7.5kw|
Curved Welded Fence Mesh Welding Production Line Applications:
The fence mesh panel is used in highway, railway, highway, seawalls, hillsides, roads and Bridges, reservoirs and other civil works.
Curved Welded Fence Mesh Welding Production Line Packing:

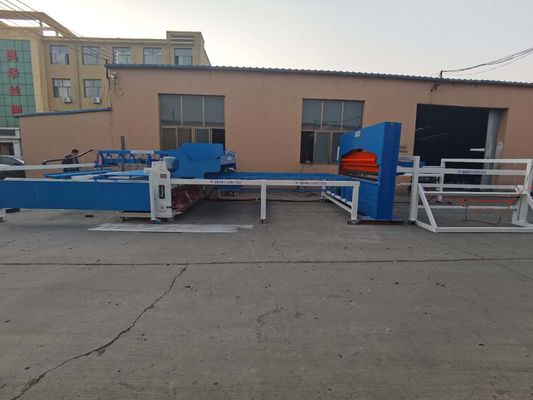

Curved Welded Fence Mesh Welding Production Line Photos:
