2500mm Wire Mesh Welding Machines
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-2500D+ |
| Minimum Order Quantity | One set |
| Packaging Details | The Wire Mesh Welding Machine is nude packing. Need one 20 feet container to be shipped. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Mesh Welding Machine | Line Wire Type | Pre-straighten And Pre-cut Put Into Hopper Device |
|---|---|---|---|
| Cross Wire Type | Pre-straighten And Pre-cut Automatic Feed By Stepping Motor | Width Of Mesh | 2500mm |
| Mesh Length | Max 3000mm | Line Wire Space | 50-300mm |
| Cross Wire Space | 50-300mm | Motor | 5.5KW |
| Welding Speed | 45-75 Times Per Min | Weight | 4.9T |
| Dimension | 9*3.2*1.7m | Color | As Per Required |
| Control System | PLC And Touch Screen | Pulling Mesh System | By Servo Motor |
| High Light | 2500mm Wire Mesh Welding Machines,5.5KW Wire Mesh Welding Machines,servo motor wire fence making machine |
||
Product Description
Standard Mesh Width 2500mm Hole Size 200*50mm Wire Mesh Welding Machine
Wire Mesh Welding Machine Introduction:
The wire mesh welding machine is new designed machine to make wire mesh panel. The wire mesh welding machine biggest advantage is less labor cost. Only need one person to operate. The line wire and cross wire both pre-straighten and pre-cut by wire straightening cutting machine. The line wire is put into hopper device. The hopper device drop the line wires into dies automatically. The line wire push car push the line wires to the welding machine. The wire mesh welding machine start to work. The cross wire is feed automatically by stepping motor. Wire mesh welding machine adopts CNC synchronous control technology, welding time and divided control welding time are composed of PLC digital programming system, input panel for touch screen or keyboard two kinds, operation is more intelligent, reasonable.
Wire Mesh Welding Machine Features:
1. Each set of transformers are controlled by a separate microcomputer, pressure multiple welding, the biggest advantage of the control is: can appear on the same mesh between latitude and latitude more than 30 different size of holes.
2. Welding electrode head is made of high-quality chrome pick copper material, which has a long service life and reduces production cost.
3. Feeding mode: Automatic feeding by stepping motor, reducing welding waiting time, fast feeding speed and accurate position.
4. Cross wire feeding mode: stepping motor automatic feeding weft blanking, blanking position is accurate.
5. Pulling mesh mode: Servo motor reciprocating drawing, pneumatic tightening weft wire, to ensure the precise position of drawing mesh.
6. The wire mesh welding machine suitable material: galvanized wire, round bar, ribbed wire.
7. The hopper device drop the line wires into dies one by one automatically. The line wire push car push the line wires to the welding machine. The wire mesh welding machine start to work. The cross wire is feed automatically by stepping motor.
Wire Mesh Welding Machine Technical Parameters:
| Welding wire diameter | 3.0-6.0mm | Line wire type | Pre-cut |
| Line wire space | 50-300mm | Cross wire type | pre-cut |
| Cross wire space | 50-300mm | Welding transformer | 160KVA*6PCS |
| Welding mesh width | 2500mm | Welding speed | 45-75 times per min |
| Welding electrodes | 48PCS | Labor cost | one person |
| Machine dimension | 9000*3200*1800mm | Machine weight | 4.9T |
| Industrial voltage | 380V,220V,415V,440V | Power transformer | 120KVA |
| Power consumption | 7-9KW/H | Control system | PLC and touch screen |
Wire Mesh Welding Machine Application:
It can be used in the production and manufacturing of coal mine net support, highway guardrail mesh, fence mesh, construction mesh, high-rise building mesh and other products.
Wire Mesh Welding Machine Packing:

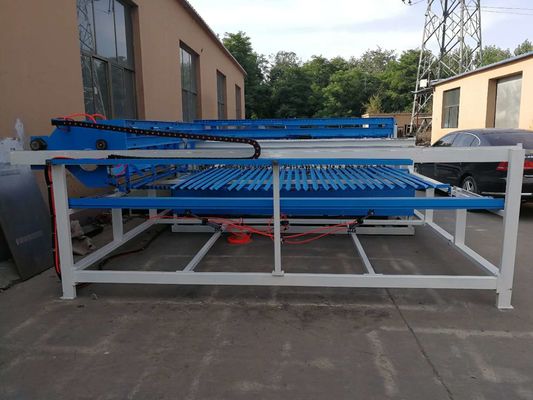

Wire Mesh Welding Machine Photos:
