CNC 300 KVA 12m Reinforcing Mesh Welding Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500A
Minimum Order Quantity One set
Packaging Details The rebar welded mesh production line packing is nude package. Need one 40 ft container to load.
Delivery Time 30 working days after buyer receive the advance payment or L/C
Payment Terms L/C, T/T
Supply Ability 8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Reinforcing Mesh Welding Machine Wire Diameter 5-12mm
Width Of Mesh 1m-3m Mesh Size 100*100mm-300*300mm
Welding Electrodes 24 PCS Suitable Material Deformed Bar, Round Bar.
Welding Speed 45-65 Times Per Min Production Capacity 25 Tons Per Hour
Power Consumption 15 Kw/h Labor Required 2 Workers
High Light

12m Reinforcing Mesh Welding Machine


300 KVA Reinforcing Mesh Welding Machine


CNC wire mesh making machine

Leave a Message
Product Description

CNC Mesh Length 12m Mesh Width 2500mm Rebar Welded Mesh Production Line



Rebar Welded Mesh Production Line Introduction:


Rebar welded mesh production line, also called BRC mesh welding machine, concrete mesh welding machine, used to make steel rebar mesh, road mesh, building construction mesh etc.


Rebar Welded Mesh Production Line Features:

Line wire feeding system

1.Wire feeding system can send the steel bars to the welding machine in tidy.When the main machine is being welded, the material of the next reinforcing mesh can be placed at the same time.Improved productivity.

2.Famous servo motor (1.5kw) and planetary reducer for sending longitude wires when welding,can save time.


Cross wire feeding system


1. The cross wire feeding system adopts the invention patent, which can carry 2000 KG of steel bar weight. Reduced labor and cost savings.

Welding electrodes

1. The welding electrode is connected to the transformer by single wire connection. The conductive effect is better, the electric energy is used more fully, and the electric energy and cost are saved.

2. All connecting wires are solid copper plates.

3. Welding electrodes are made of pure red copper and chromised bronze ,durable,can bu used at least 3-6 months

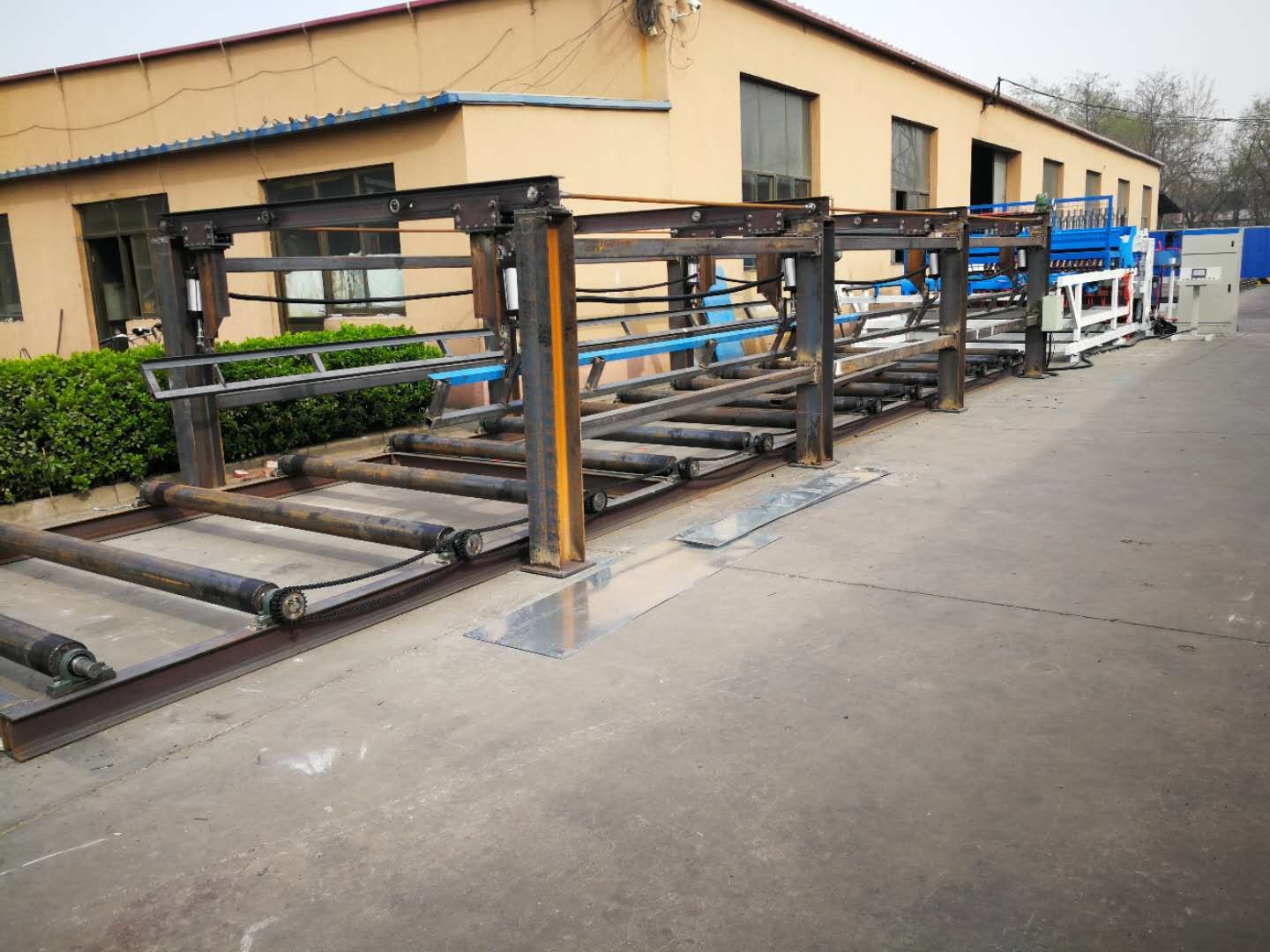

Mesh pulling system


1. The reinforcing mesh conveying system is divided into 6meter and 12meter.

2. It contains a roller conveyor,which is easy to pack reinforcing mesh and convenient to load truck.

3. We can design the conveying system length according to the customer's requirements.

4. It is controlled by servo motor (2kw)&planetary reducer and air cylinders,advanced.


Rebar Welded Mesh Production Line Technical Parameters:


Material  Pre-cut,low carbon cold tolling wire
Max mesh length  12m
Min mesh length  2m
Max mesh width  2500mm
Min mesh width  1000mm
Line wire space  Min 100mm adjustable
Cross wire space  Min 100mm adjustable
Number of welding transformer 160KVA*12PCS
Number of welding electrodes 24PCS
Power transformer for the machine running 300KVA
Industrial voltage 220V 380V 415V 440V

Rebar Welded Mesh Production Line Applications:


The rebar welded mesh coal mine roadway protection and reinforcement, expressway, bridge, tunnel, bridge deck pavement, airport runway, house floor, roof, wall, floor and various concrete buildings, etc.


Rebar welded mesh has been widely used in the construction industry, in addition to the production of precast reinforced concrete components, more is used in the cast-in-place concrete structural members: construction: multi-storey and high-rise industrial and civil housing construction (foundation, floor, floor, roof, wall, etc.);Transportation: concrete pavement of expressway, soft base section, bridge deck pavement, anti-crack of bridge pier surface, concrete ground of toll plaza, railway platform, station square and cargo concrete ground, concrete ground of airport runway, freight yard and square, tunnel lining, wharf and port, etc.;Municipal construction: overhead overpass surface pavement, square concrete ground, concrete pipe, fence, slope protection, etc.Water conservancy and electric power coal: water conservancy facilities, electric dam foundation, protective net, etc.;Others: flood control facilities, slope reinforcement, collapse protection, breeding industry, animal husbandry, etc.
