Servo Motor 2.4x6m Reinforcing Mesh Welding Machine

Mesh Size 200*200mm Panel Mesh Size 2.4*6m Reinforced Rebar Welded Mesh Machine

Reinforced Rebar Welded Mesh Machine Introduction:

The Reinforced Rebar Welded Mesh Machine is specially used for the production of steel mesh.Welding speed is fast. Working principle through resistance welding. The machine can weld rebar, round steel and galvanized wire.

The reinforced rebar welded mesh machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.

Reinforced Rebar Welded Mesh Machine Features:

1. The reinforced rebar welded mesh machine control system adopts panasonic PLC automatic control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.

2. Weft wire hopper: the stepper motor drives the disk-type device to automatically drop wires, and the hopper has a large capacity of storing wires max up to 1.5 tons. When there is no wire in the hopper, the equipment will automatically stop running.

3. Line wire feeding mechanism: Mitsubishi servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send line wire to the welding position. The reinforced rebar welded mesh machine start to weld automatically.

4. Mesh pulling mechanism: Mitsubishi servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

5. Water-cooled welding electrodes and a new type of special transformer for water-cooled welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.

6. The reinforced rebar welded mesh machine will stop working automatically if there is no cross wires in the hopper device.

7. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

8. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.

9.The reinforced rebar welded mesh machine is equipped with 12 PCS water cooled transformers. Each welding transformer is 160KVA.

Reinforced Rebar Welded Mesh Machine Technical Parameters:

Reinforced Rebar Welded Mesh Machine application:

The reinforced rebar welded mesh are widely used in industrial and civil housing floors, roof, wall, concrete pavement, bridge pavement, airport runway, tunnel lining, box culvert, wharf floor, precast components and other fields

Reinforced Rebar Welded Mesh Machine Packing:

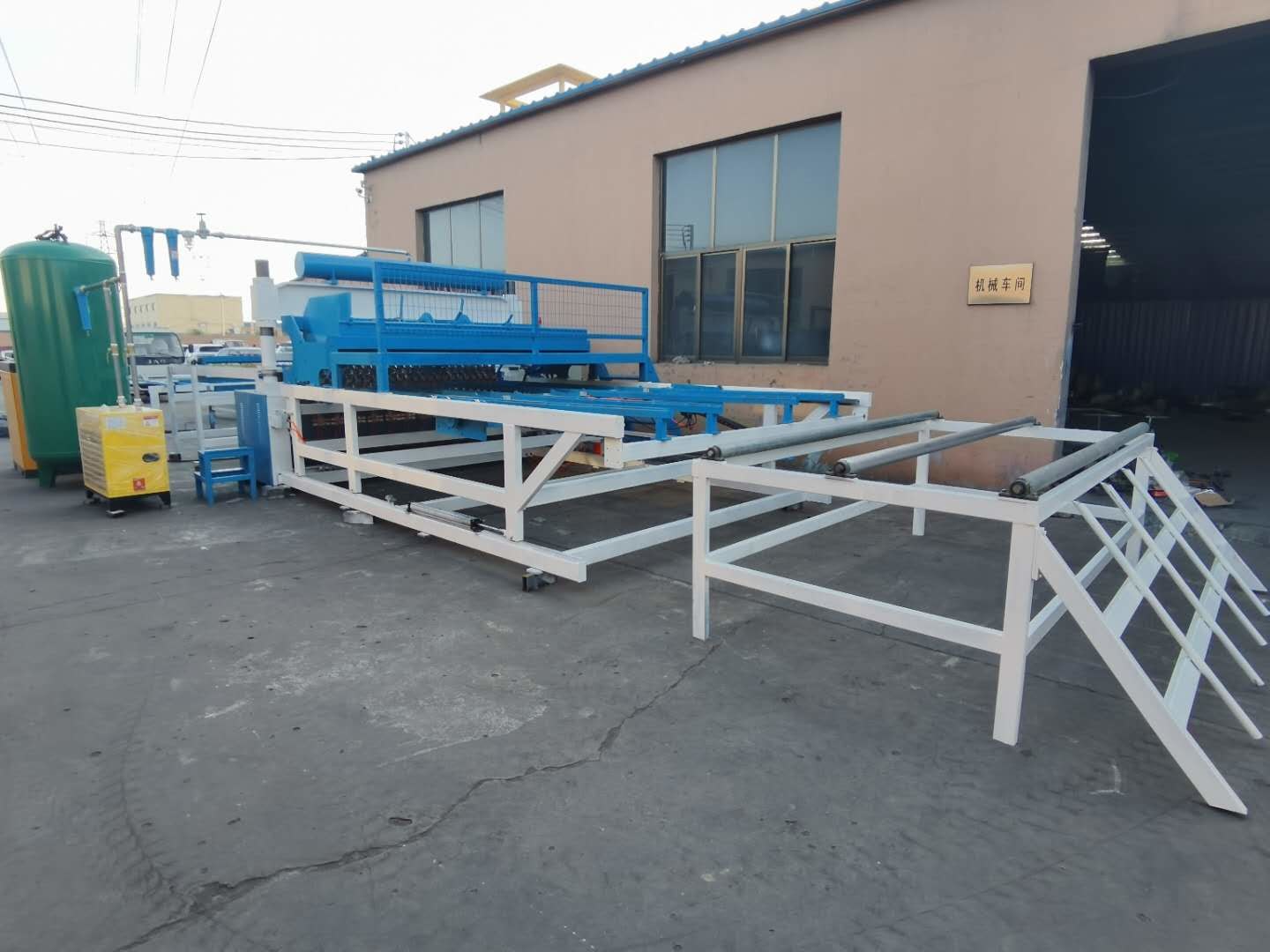

Reinforced Rebar Welded Mesh Machine Photos:
