0.3MPa Pneumatic 3000mm Rebar Mesh Welding Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-3000B
Minimum Order Quantity One set
Packaging Details The Reinforced Steel Bar Mesh Welding Production Line is nude packing. Need 2*40 feet containers.
Delivery Time 30 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 3 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Reinforcing Mesh Welding Machine After-sales Service Provided Engineers Available To Service Machinery Overseas
Wire Diameter 5-12mm Voltage 380V/220V/415V/440V
Warranty 2 Years Type Automatic
Mesh Width Max. 3m Mesh Length Max. 12m
Control System PLC Control Labor Cost 2-3 Persons
Welding Power Air Cylinder Falling Mesh System Automatic
High Light

3000mm Rebar Mesh Welding Machine

,

0.3MPa Rebar Mesh Welding Machine

,

Pneumatic wire net making machine

Leave a Message
Product Description

Mesh Width 3000mm Pneumatic Reinforced Steel Bar Mesh Welding Production Line





Reinforced Steel Bar Mesh Welding Production Line Introduction:



The reinforced steel bar mesh welding production line is a kind of automatic wire mesh welding equipment.
Line wire pre-cut automatic feeding, cross wire storage automatic feeding, automatic mesh output,stacking alignment, packaging.
Compared with the common wire mesh welding equipment, the automatic wire mesh forming production line uses automatic feeding instead of manual feeding, automatically turning the mesh, catching the mesh, packing instead of manual lifting, placing and tying, which saves the labor cost and improves the production efficiency.



Reinforced Steel Bar Mesh Welding Production Line Features:



1. High productivity. The Reinforced Steel Bar Mesh Welding Production Line can make 40 tons at 12 hours.
2. The Reinforced Steel Bar Mesh Welding Production Line is controlled by human-machine interface +PLC programming controller, with high degree of automation.
3. Welding hot rolled ribbed wire, cold rolled ribbed wire, hot rolled round bar, cold rolled round bar and other materials, wide adaptability;
4. According to the user's capacity, the welding can be done in one time or in several times, with great flexibility.
5. The Reinforced Steel Bar Mesh Welding Production Line  is designed as a separable structure, which is convenient for specification adjustment and maintenance.
6. The transformer, silicon controlled upper and lower electrodes and other welding systems adopt forced water cooling, and are equipped with flow protection device. The unit can work continuously and reliably.
7. Uniform welding pressure to ensure the quality of all solder joints.
8. Unique lifting mechanism can lift off the electrode when the mesh is dragged to ensure the service life of the electrode and reduce the operation cost;
9. Transverse bar blanking device adopts stepping motor to feed automatically, which can reduce labor intensity and improve efficiency.
10. The cross wire is equipped with magnetic dumping mechanism, which makes the dropping speed fast and the production efficiency high.
11. The electrode is equipped with a placement device to ensure the transverse reinforcement dropping is reliable and accurate;
Unique design ensures easy, flexible and quick replacement of rebar and stencil specifications.



Reinforced Steel Bar Mesh Welding Production Line Advantages:


1. Each set of transformers is controlled by a separate microcomputer, which can be pressed and divided to control welding at one time. The welding points are uniform, firm, more stable, faster and more intelligent.
2. The equipment adopts pneumatic welding pressure with uniform pressure point and no welding burn.
3. The welding point of the equipment is made of high quality alloy copper, which has a long service life and reduces the production cost.
4. The transformer with enhanced design has a separate patent, can meet the long time of welding, there is no open welding leakage phenomenon.
5. Only two persons are needed to operate the whole process to reduce labor cost.



Reinforced Steel Bar Mesh Welding Production Line Technical Parameters:



Model DX-GWC-2000B DX-GWC-2500B DX-GWC-3000B
Power supply 220V,380V,415V,440V 220V,380V,415V,440V 220V,380V,415V,440V
Air pump pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Water cooling water pressure 0.3MPa 0.3MPa 0.3MPa
Welding mesh width 2000mm 2500mm 3000mm
Line wire space  100-300mm 100-300mm 100-300mm
Cross wire space 100-300mm 100-300mm 100-300mm
Welding electrodes 20PCS 24PCS 30PCS
Welding transformer 200KVA*10PCS 200KVA*12PCS 200KVA*15PCS
Line wire type Pre-cut feeding by car Pre-cut feeding by car Pre-cut feeding by car
Cross wire type Pre-cut automatic feed Pre-cut automatic feed Pre-cut automatic feed
Welding speed 60-70 times per min 60-70 times per min 60-70 times per min
Wire diameter 5-12mm 5-12mm 5-12mm
Falling mesh system Automatic Automatic Automatic
Capacity 35-40 tons in 12 hours 35-40 tons in 12 hours 35-40 tons in 12 hours



Reinforced Steel Bar Mesh Welding Production Line Applications:



Steel bar mesh has many uses, bridge building, highway construction, engineering construction, campus construction and hospital construction.



Reinforced Steel Bar Mesh Welding Production Line Packing:



0.3MPa Pneumatic 3000mm Rebar Mesh Welding Machine 0

0.3MPa Pneumatic 3000mm Rebar Mesh Welding Machine 1

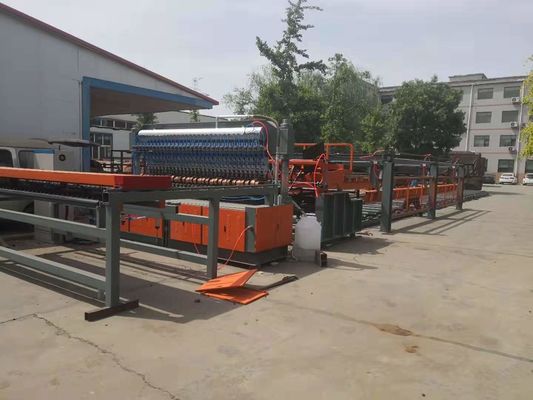

Reinforced Steel Bar Mesh Welding Production Line Photos:



0.3MPa Pneumatic 3000mm Rebar Mesh Welding Machine 2

0.3MPa Pneumatic 3000mm Rebar Mesh Welding Machine 3
