Product Details
Product Name Fixed Knot Fence Machine Mesh Width 2440mm
Line Wire Diameter 2.0-2.8mm Stay Wire Diameter 2.0-2.8mm
Knot Wire Diameter 2.0-2.4mm Line Wire Space Minimum 76mm Can Be Increased By 12.5mm
Stay Wire Space 76mm,150mm,225mm,300mm,450mm. Mesh Length Max. 200m
Motion System Controlled Vector And Servo Drives PLC Control Of The Machine Panasonic Japan
Control Supply Voltage DC 24V Production Speed 25 Times Per Min
High Light

2.4m Fixed Knot Fence Machine

,

Wrap Around Fixed Knot Fence Machine

,

2.4m fencing net making machine
Leave a Message
Product Description

Hot Dip Galvanized Wire 2.4m Height Deer Fence Fixed Knot Fence Mesh Machine





Fixed Knot Fence Mesh Machine Introduction:



Fixed Knot Fence Mesh Machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It is developed after many years our company has independent intellectual property rights, independent research and delelopment. The fixed knot fence mesh machine adopts PLC computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product neat and beautiful, diverse specifications can be made according to your requirement.



Fixed Knot Fence Mesh Machine Features:



1. The fixed knot fence mesh machine is controlled by PLC automatic controller, so only one person is needed to operate.

2. This is a new model machine developed by this company. It can weave the weft and warp wire automatically together to form the ranch fences. The end products enjoy innovative structure, firm and precise weaving. The production capacity is 150m/h. This machine provide reliable property.
3. Fixed knot fence mesh machine can weave the weft and warp wire automatically together to form the field fences.
4. The finished products enjoy innovative structure, firm and precise weaving.

5. After finish one roll fixed knot fence mesh. The rolling mesh machine will pull out the fixed knot fence mesh automatically.



Fixed Knot Fence Mesh Machine Technical Parameters:



Model DX-LWJ-1500 DX-LWJ-2000 DX-LWJ-2400
Maximum fence width 1524mm 1800mm 2438mm
Number of line wires 16 lines 18 lines 20 lines
Line wire space 3inches 4inch 5inch 6inch 3inches 4inch 5inch 6inch 3inches 4inch 5inch 6inch
Stay wire space 3 inches 6 inches 12inches 3 inches 6 inches 12inches  3 inches 6 inches 12inches
Line wire diameter 2.0-2.8mm 2.0-2.8mm 2.0-2.8mm
Stay wire diameetr 2.0-2.8mm 2.0-2.8mm 2.0-2.8mm
Knot wire diameter 2.0-2.4mm 2.0-2.4mm 2.0-2.4mm
Length of roll Max.220m Max.220m Max.220m
Motion system

Controlled vector and servo drives

Controlled vector and servo drives

Controlled vector and servo drives
Control system Multiple spindle,servo motor  PLC Multiple spindle,servo motor PLC Multiple spindle,servo motor PLC
Production speed 25 stays per min 25 stays per min 25 stays per min

Control supply voltage

 DC 24V DC 24V DC 24V
Machine weight 7900kg 8500kg 9200kg
Main machine dimension 3900*6800*2250mm 4450*6800*2250mm 4800*6800*2250mm



Fixed Knot Fence Mesh Machine Applications:



The fixed knot fence mesh is mainly used for pastoral grassland construction, can be built around the grassland and the implementation of fixed-point grazing, column grazing. It is convenient for the planned use of grassland resources, effectively improve the utilization rate of grassland and grazing efficiency, prevent grassland degradation, and protect the natural environment.
The fixed knot fence mesh is also applicable to the establishment of family farms with farmers and animal husbandry professionals.



Fixed Knot Fence Mesh Machine Packing:



Wrap Around 25 Times 2.4m Fixed Knot Fence Machine , Fencing Net Making Machine 0

Wrap Around 25 Times 2.4m Fixed Knot Fence Machine , Fencing Net Making Machine 1

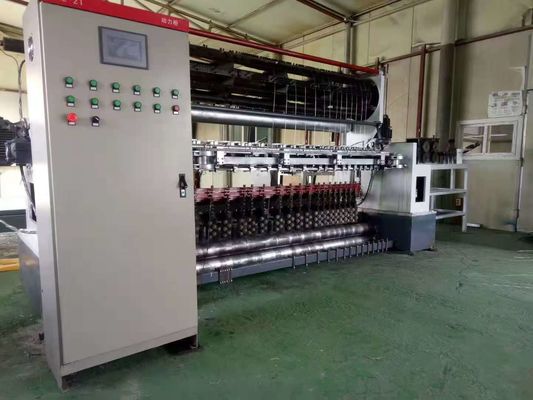

Fixed Knot Fence Mesh Machine Photos:



Wrap Around 25 Times 2.4m Fixed Knot Fence Machine , Fencing Net Making Machine 2

Wrap Around 25 Times 2.4m Fixed Knot Fence Machine , Fencing Net Making Machine 3
