Touch Screen 440V CE 2m Grassland Fence Machine , Chain Link Fence Making Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-LWJ-2400
Minimum Order Quantity One set
Packaging Details The Fixed Knot Grassland Fence Making Machine is nude packing. Need one 40 feet container to load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 6 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Knot Fence Machine After-sales Service Provided Engineers Available To Service Machinery Overseas
Voltage 220V/380V/415V/440V Type Fully Automatic
Width 1442mm 1880mm 2000mm 2400mm Speed 25row/min
Material Hot Dipped Galvanized,Galvanized Iron Wire Application Making Fence
Line Wire Diameter 2.0-3.8mm Stay Wire Diameter 2.0-3.8mm
High Light

2m Grassland Fence Machine

,

440V Grassland Fence Machine

,

2m chain link fence making machine

Leave a Message
Product Description

Mesh Width 2m Line Wire Size Adjust Fixed Knot Grassland Fence Making Machine





Fixed Knot Grassland Fence Making Machine Introduction:



The fixed knot grassland fence making machine is is controlled by the Panasonic PLC program control. It is very easy to operate. Only need one person. The fixed knot fence weaving machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It is developed after many years our company has independent intellectual property rights, self-made. The fixed knot fence making machine uses PLC computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices.Product neat and beautiful, diverse specifications can be made according to your requirement.



Fixed Knot Grassland Fence Making Machine Features:



1. The fixed knot grassland fence making machine is latest machine to make fixed knot fence in China. We are the best and unique manufacturer to make fixed knot fence weaving machine in China. The most similar fixed knot fence machine with the NEW ZEALAND SOUTHERN FENCE machine.

2. The wire frame of main machine adopts 100*100 square tube welding, the large frame adopts 25mm iron plate welding, the support beam adopts 80*100 square tube welding, the working stability is good, the fuselage does not vibrate.

3. The wire feeding mechanism is directly integrated with the main machine, with straightening, cutting and wire feeding in place at one time

4. Twist the wire winding mechanism is designed as a whole, using a 50mm thick bottom beam as the reinforcement plate, when changing the specifications of the network is convenient and easy to operate

5. The control system of the fixed knot fence weaving machine adopts PLC (Panasonic Japan) and servo motor, touch screen programming, easy to operate, easy to change specifications as your required.

6. The rolling mesh machine will pull out of the finished product fixed knot fence roll automatically after finished produce one roll fixed knot fence.



Fixed Knot Grassland Fence Making Machine Technical Parameters:



Model DX-LWJ-1442 DX-LWJ-1880 DX-LWJ-2000 DX-LWJ-2400
Mesh width 1442mm 1880mm 2000mm 2400mm
Number of line wires 13 lines 16 lines 18lines 21 lines
Line wire diameter 2.0-3.8mm 2.0-3.8mm 2.0-3.8mm 2.0-3.8mm
Stay wire diameter 2.0mm-3.8mm 2.0mm-3.8mm 2.0mm-3.8mm 2.0mm-3.8mm
Fixed knot wire diameter 1.8mm-2.5mm 1.8mm-2.5mm 1.8mm-2.5mm 1.8mm-2.5mm
Line wire space Minimun 3 inches Minimun 3 inches Minimun 3 inches Minimun 3 inches
Stay wire space 3 inches to 16 inches 3 inches to 16 inches 3 inches to 16 inches 3 inches to 16 inches
No.strike per min 25 row per min 25 row per min 25 row per min 25 row per min
Max. mesh length 200m per roll 200m per roll 200m per roll 200m per roll
Line wire tensile range 850-1350N / mm2 850-1350N / mm2 850-1350N / mm2 850-1350N / mm2
Stay wire tensile range 525-850N / mm2 525-850N / mm2 525-850N / mm2 525-850N / mm2
Main motor power 7.5KW 7.5KW 11KW 11KW



Fixed Knot Grassland Fence Making Machine Application:





The fixed knot fence can be used for the construction of grassland in pastoral areas, and can be used to construct grassland and implement fixed-point grazing and column grazing, which is convenient for the planned use of grassland resources, effectively improve the grassland utilization law and grazing efficiency, prevent grassland degradation, and protect the natural environment.



Fixed Knot Grassland Fence Making Machine Packing:



Touch Screen 440V CE 2m Grassland Fence Machine , Chain Link Fence Making Machine 0

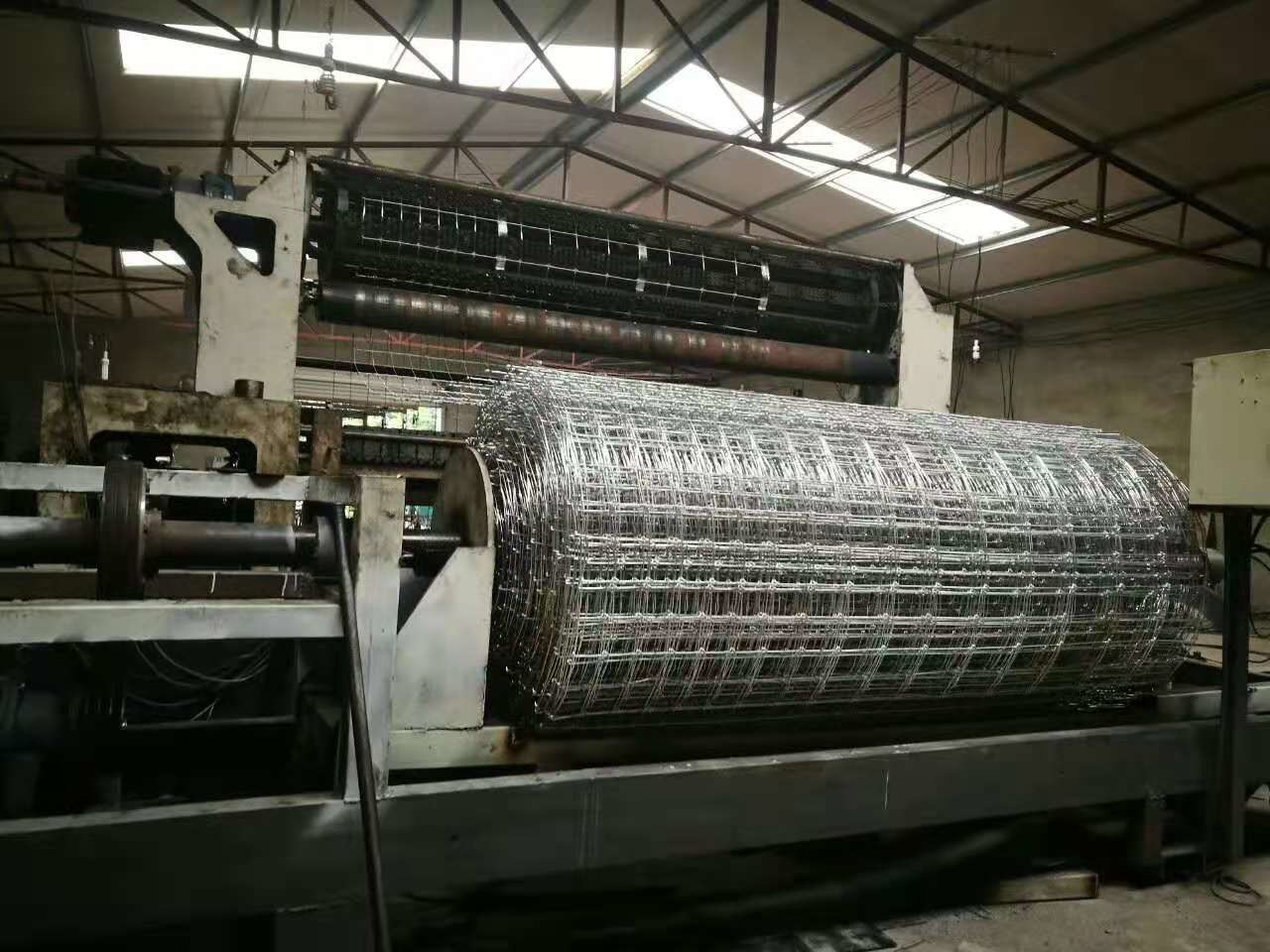

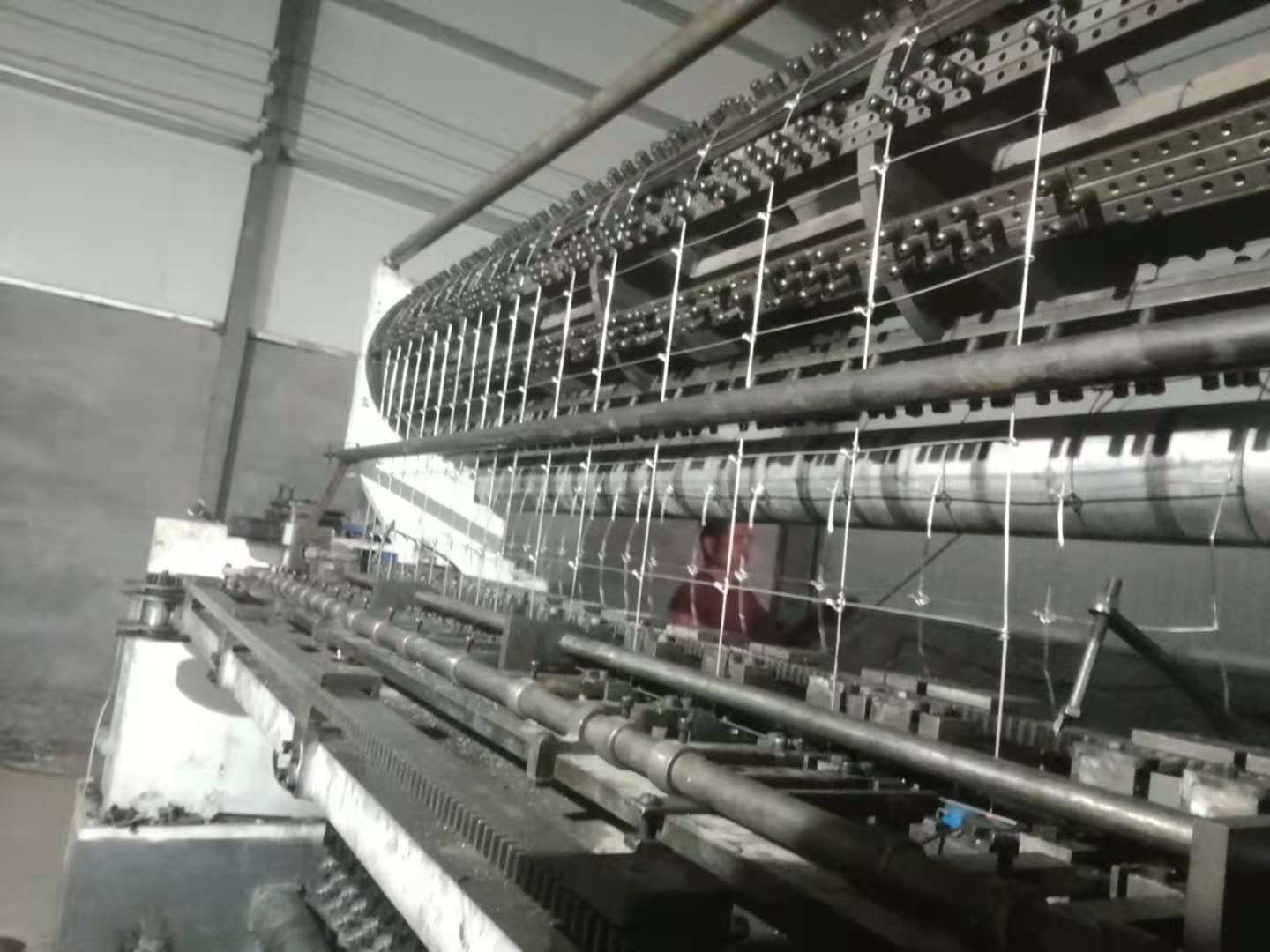

Fixed Knot Grassland Fence Making Machine Photos:



Touch Screen 440V CE 2m Grassland Fence Machine , Chain Link Fence Making Machine 1

Touch Screen 440V CE 2m Grassland Fence Machine , Chain Link Fence Making Machine 2

Touch Screen 440V CE 2m Grassland Fence Machine , Chain Link Fence Making Machine 3
