2.5mm Mesh Height 96 Inches Fixed Knot Fence Machine , Deer Fence Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-LWJ-2440 |
| Minimum Order Quantity | One set |
| Packaging Details | The Fixed Knot Field Fence Making Machine / Deer Fence Machine is nude packing. Need one 40 feet container. |
| Delivery Time | 35 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 4 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fixed Knot Fence Machine | Weight | 8500kg |
|---|---|---|---|
| Line Wire Size | 2.0-2.8mm | Stay Wire Size | 2.0-2.8mm |
| Edge Wire Size | 2.5-3.5mm | Fixed Knot Wire Size | 1.8-2.5mm |
| Max Weaving Mesh Width | 2440mm | Main Motor | 11KW |
| Machine Dimension | 4800x3500x2250mm | Production Speed | 25-30 Times Per Min |
| High Light | 96 Inches Fixed Knot Fence Machine,2.5mm Fixed Knot Fence Machine,96 Inches deer fence machine |
||
Product Description
Mesh Height 96 Inches Fixed Knot Field Fence Making Machine / Deer Fence Machine
Fixed Knot Field Fence Making Machine / Deer Fence Machine Introduction:
1. Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. Auto Wire-Stripping-Table releases finished rolls to the pickup zone and re-sets for windup, allows for the easy removal of any type of roll.
4. Running in a high automatization and intellectualization,no pollution
5. Twister-Bed the adoption of standard line wire settings is possible at both ends of the machine. Reducing the need to move line-wires is a major factor in reducing specification change time.
Fixed Knot Field Fence Making Machine / Deer Fence Machine Technical Parameters:
| Product name | Fixed Knot Field Fence Making Machine / Deer Fence Machine |
| Material | High tensile strength galvanized wire |
| Line wire size | 2.0-2.8mm |
| Stay wire size | 2.0-2.8mm |
| Edge wire size | 2.0-3.5mm |
| Fixed knot wire size | 1.8-2.5mm |
| Max mesh height | 96 inches (2440mm) |
| Number of line wire | 20 lines |
| Control system | PLC Panasonic. |
| Line wire space | 3 inches 4 inches 5 inches 6 inches 7 inches. |
| Stay wire space | 75mm,150mm,300mm,450mm |
| Max. mesh length | 200m |
| Production speed | 25-30 times per min |
| Main motor power | 11KW |
| Power consumption | 12-15KW/H |
| Labor cost | One person |
| Machine weight | 8500kg |
| Machine dimension | 4800x3500x2250mm |
| Workshop size | 20m*7m |
| Machine color | As per your require |
Fixed Knot Field Fence Making Machine / Deer Fence Machine Applications:
It is convenient for the planned use of grassland resources, effectively improve the utilization rate of grassland and grazing efficiency, prevent grassland degradation and protect the natural environment.
At the same time, it is also applicable to the establishment of family breeding farms with farmers and animal husbandry professionals, the establishment of border defense, farmland boundary fence, forest nursery, mountain closure, tourism areas and hunting areas, construction site isolation maintenance, etc.

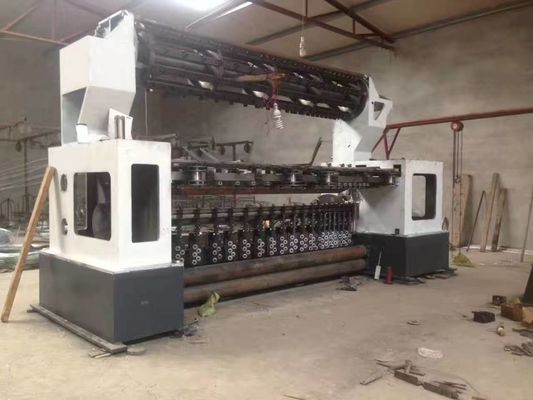

Fixed Knot Field Fence Making Machine / Deer Fence Machine Photos:
