Discharge Roll PLC 2.8mm Fencing Wire Making Machine

  • Discharge Roll PLC 2.8mm Fencing Wire Making Machine
  • Discharge Roll PLC 2.8mm Fencing Wire Making Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-LWJ-2440
Minimum Order Quantity One set
Packaging Details The Fixed Knot Livestock Wire Mesh Fence Machine is nude packing. Need one 20 feet container to load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Knot Fence Machine Type Fully Automatic
Width 1500mm 2100mm 2440mm Speed 30row/min
Material Galvanized Iron Wire Application Deer Fence
Line Wire Diameter 2.0-2.8mm Stay Wire Diameter 2.0-2.8mm
Knot Wire Diameter 2.0-2.4mm Length Of Roll Max. 220m
Workshop Size 20m*6m Labor Required One Person
Production Speed 30 Times Per Min Machine Weight 7200kg
High Light

2.8mm Fencing Wire Making Machine

,

76mm Fencing Wire Making Machine

,

2.8mm fence panel machine
Leave a Message
Product Description

Automatic Discharge Roll Mesh Siemens PLC Fixed Knot Deer Fence Weave Machine





Fixed Knot Deer Fence Weave Machine Introduction:



Fixed knot deer fence weave machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It is developed after many years our company has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product neat and beautiful, diverse specifications. Only 1 worker is available for operate machine, low manual labour cost, lower loss, material-saving.Great production capacity sustainable supply. Accordingly to Customers requirement. We support the customized includes package.100% new materials and the best production process. In consequence our defective rate is lower than 0.1%. Our Fixed Knot Deer Fence Weave Machine is popular in European and Russia market.



Fixed Knot Livestock Wire Mesh Fence Machine Technical Parameters:



Model DX-LWJ-1500 DX-LWJ-2100 DX-LWJ-2440
Mesh width 1524mm 2082mm 2438mm
Max line wire number 16 lines 18 lines 20 lines
Line wire space Min 76mm adjust Min 76mm adjust Min 76mm adjust
Cross wire space 75mm,150mm,300mm 75mm,150mm,300mm 75mm,150mm,300mm
Line wire size 2.0-2.8mm 2.0-2.8mm 2.0-2.8mm
Cross wire size 2.0-2.8mm 2.0-2.8mm 2.0-2.8mm
Fixed knot size 1.8-2.5mm 1.8-2.5mm 1.8-2.5mm
Max roll length 200m 200m 200m
Dynamical system adjustable-speed motor adjustable-speed motor adjustable-speed motor
Control system By PLC Panasonic Japan By PLC Panasonic Japan By PLC Panasonic Japan
Industrial voltage 220V 380V 440V 415V 220V 380V 440V 415V 220V 380V 440V 415V
Control system voltage DC 24V DC 24V DC 24V
Machine weight 5900kg 6500kg 7200kg
Machine dimension 3900x3500x2250mm 4450x3500x2250mm 4800x3500x2250mm



Fixed Knot Deer Fence Weave Machine Applications:



The fixed knot deer fence can build grassland and carry out fixed-point grazing, and graze in separate columns. It can facilitate the planned use of grassland resources, effectively improve grassland utilizationand grazing efficiency, prevent grassland degradation and protect the natural environment. At the same time, it is also suitable for establishing family farms with farmers and herdsmen to set up border guards, farmland fences, forest nurseries, hillsides for afforestation, tourist areas and hunting areas, isolation and maintenance of construction sites.



Fixed Knot Deer Fence Weave Machine Packing:



Discharge Roll PLC 2.8mm Fencing Wire Making Machine 0

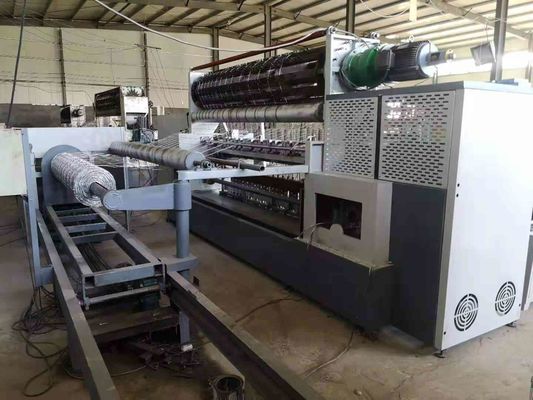

Fixed Knot Deer Fence Weave Machine Photos:



Discharge Roll PLC 2.8mm Fencing Wire Making Machine 1

Discharge Roll PLC 2.8mm Fencing Wire Making Machine 2

Discharge Roll PLC 2.8mm Fencing Wire Making Machine 3

Discharge Roll PLC 2.8mm Fencing Wire Making Machine 4
