63T Razor Barbed Wire Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-RP-63 |
| Minimum Order Quantity | One set |
| Packaging Details | The Razor Barbed Wire Production Line is covered by plastic film. Need one 20 feet container to load. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5-8 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Razor Barbed Wire Machine | Material | Galvanized Coil And Stainless Steel Coil |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,commissioning And Training,Online Support | Type | Razor Wire/ Razor Barbed Wire |
| Warranty | 2 Years | Power | 7.5kw |
| Voltage | 220V/380V/415V/440V | Application | National Defense |
| Producing Speed | 220-280m/h | Razor Type | BTO CBT |
| Certification | CE | Total Weight | 5.5T |
| Brand Of Punch Machine | Yangli China | Control System | PLC |
| High Light | 63T Razor Barbed Wire Machine,7.5kw Razor Barbed Wire Machine,BTO razor blade making machine |
||
Product Description
Punch Machine Motor 7.5kw Punch Pressure 63T Razor Barbed Wire Production Line
Razor Barbed Wire Production Line Introduction:
Razor Barbed Wire Production Line is mainly divided into punch machine part and coiling machine part.
First, the punch machine part is mainly composed of the decoiler, punch machine, slitting frame. razor coiling machine, control cabinet, coiling machine, wire spool, wire strip spool.The tonnage of the punch machine press depends on the width of the galvanized coil.
If 100mm wide can punch 7 razors, 130mm wide can punch 9 razors, 154mm wide can punch 11 razors.The wider the board is, the less waste is produced and the more material is saved.
For punch 7 blades requires 25 tons punch machine, which is a low efficiency.
For punch 9 blades requires 40 tons of punch machine, which is widely used in the market at present.
For punch 11 blades requires 63 tons of punch machine, this type of blade barbed rope machine is latest research and put on the market, high production of waste less cost-effective, recommend everyone to use this specification of blade barbed rope machine.
Razor Barbed Wire Production Line Technical Parameters:
| Model | DX-RP-25 | DX-RP-40 | DX-RP-63 |
| Punch pressure | 25 tons | 40 tons | 63 tons |
| Motor of punch machine | 4.0kw | 5.5kw | 7.5kw |
| Punch time | 100 times per min | 100 times per min | 100 times per min |
| Brand of punch machine | Yangli | Yangli | Yangli |
| Weight of punch machine | 3.5T | 3.8T | 4.2T |
| Control system | PLC | PLC | PLC |
| Weight of decoiler | 300kg | 300kg | 300kg |
| Load galvanized coil weight | 1000kg | 2000kg | 2000kg |
| Dimension of punch machine | 900*1000*1900mm | 1000*1000*2000mm | 1100*1000*2000mm |
| Motor of coiling machine | 1.5kw | 1.5kw | 1.5kw |
| Quantity of coiling machine | One set | Two sets | Two sets |
| Slitting frame | One set | One set | One set |
| Razor coiling machine | One set | One set | One set |
| Motor of razor coiling machine | 3kw | 3kw | 3kw |
| Rotate speed of razor coiling machine | 0-260r/min | 0-260r/min | 0-260r/min |
Mould type for you to choose
| Style | Barb length | Barb width | Barb space |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm |
| BTO-22 | 22±1mm | 15±1mm | 48±1mm |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm |
| CBT-60 | 60±1mm | 32±1mm | 96±1mm |
| CBT-65 | 65±1mm | 21±1mm | 100±1mm |
Razor Barbed Wire Production Line Applications:
Concertina razor wire is extensively used for security isolation of military facilities, national defence, communication stations,power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
Razor Barbed Wire Production Line Packing:

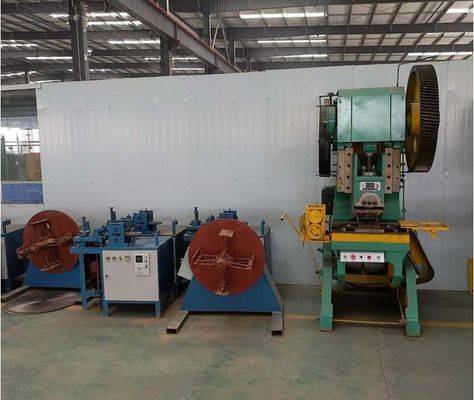

Razor Barbed Wire Production Line Photos:
