100m Rolling Mesh 0.75kw Chain Link Fence Making Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-30-4000 |
| Minimum Order Quantity | One set |
| Packaging Details | The Chain Link Fence Machine is put into 40 feet container. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Chain Link Fence Making Machine | Thickness Of Wire | 2.0-4.5mm |
|---|---|---|---|
| Mesh Width | 4m | Control System | PLC |
| Control Switch | Schneider | Servo Motor | 5.5kw |
| Motor Of Knuckled And Twisted | 0.75kw | Motor Of Rolling Mesh Machine | 0.75kw |
| Machine Weight | 2000kg | Machine Dimension | 6.7*1.43*1.8m |
| Cutting Wire Motor | 2.2kw | Payoff Wire Spool | 2 Pcs |
| Rolling Mesh | Automatic | Roll Meh Length | 100m |
| High Light | 0.75kw Chain Link Fence Making Machine,100m Chain Link Fence Making Machine,Schneider diamond mesh making machine |
||
Product Description
Mesh Length 100m Automatic Rolling Mesh Playground Chain Link Fence Machine
Chain Link Fence Machine Introduction:
1. Chain link fence machine for manufacturing chain link fences of different sizes. The wire is taken in from the two payoff stands and passed through the dies where the DIAMOND SIZE takes place. Different gap sized. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.
2. The chain link is automatically wound to form rolls when the desired length is manufactured.
3. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.
4. One side or both sides of the end of net hole is twisted or with burr in edge.
5. Use rolling mesh machine to make it into rolls automatically.
6. The suitable material; Low carbon steel wire, galvanized wire. PVC coated wire.
Chain Link Fence Machine Features:
1. The machines are controlled by touch screen, famous brand electrical components. Easy to operate. Electrical appliances are durable and have a low failure rate.
2. We have adopted the Servo Motor and Reducer. Work efficiency increased by three times, saving electricity and high output.
3. Electric box and main unit are all-in-one,This facilitates mechanical installation and placement. Make the work site line organized. Easy to produce.
4. The console can be adjusted at will, making it easy to adjust the equipment in time for mechanical operation.
5. Twisting wire side and holding wire side can be adjusted to increase the diversity of wire mesh products.
6. Each machine is equipped with 3 different mesh sizes. Tools and reels are made with special materials to increase the life cycle.
Chain Link Fence Machine Technical Parameters:
Chain Link Fence Machine Specifications | |||
Mesh width | 4000mm | ||
Maximum mesh hole size | 100mm | ||
Minimum mesh hole size | 30mm*30mm | ||
Maximum Wire diameter | 4.5mm | ||
Minimum Wire diameter | 2.0mm | ||
Material type | Galvanized wire, Black wire or cold-drawn uncoated wire | ||
Selvage type | Hook edge or Screw edge | ||
Machine speed | 80-120 Square meters / hours | ||
Machine weight | 2000kg | ||
Machine size | 6.7x1.43x1.8m | ||
Machine voltage | 220V 380V 415V 440V 50Hz or 60Hz | ||
Number of moulds included | 3 sets | ||
Drive system type | Servo motor(EURA) 5.5KW | ||
PLC brand | Delta | ||
Adjustment parameters | On the touch screen | ||
Delivery time | 15 day | ||
Chain Link Fence Machine Applications:
Widely used in court, stadium, tennis court, basketball court fence net use, hook fence net is also widely used in roads, railways, highways and other fence net facilities.Raising chicken, duck, goose, rabbit and zoo fence, the protective net of mechanical equipment, enclosure fence net, road green belt protective net and so on.
Chain Link Fence Machine Packing:

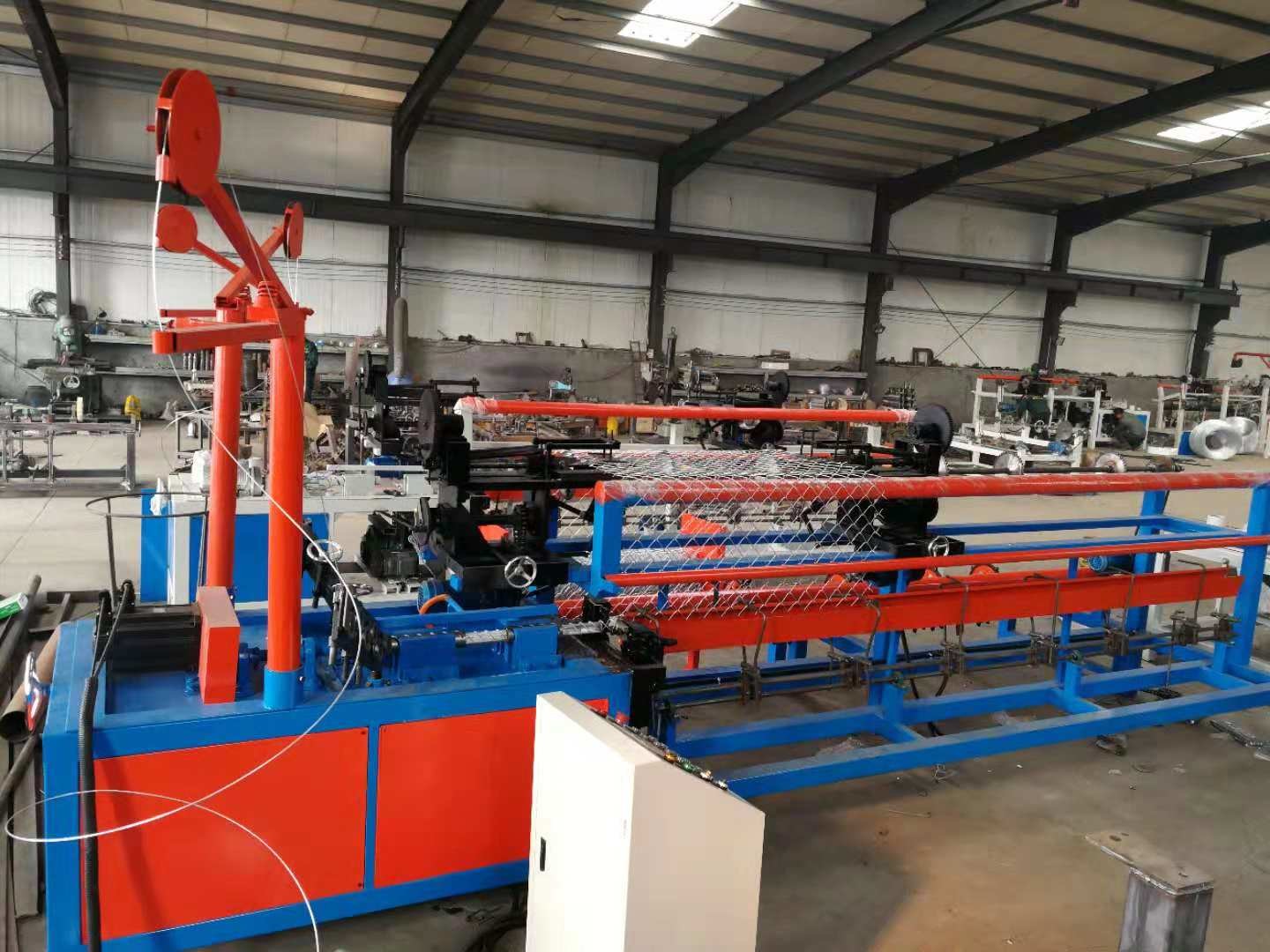

Chain Link Fence Machine Photos:
