5.5kw Cross Wire Hopper Load 100kg Wire PLC Fence Panel Machine

  • 5.5kw Cross Wire Hopper Load 100kg Wire PLC Fence Panel Machine
  • 5.5kw Cross Wire Hopper Load 100kg Wire PLC Fence Panel Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500D
Minimum Order Quantity One set
Packaging Details The mesh panel welding machine is nude packing. Need one 20 feet container to load.
Delivery Time 30 days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mesh Panel Welding Machine Wire Diameter 3.0-6.0mm
Width Of Mesh 2500mm Longitudinal Wire Space 50-200mm
Cross Wire Space 50-300mm Longitudinal Wire Type Pre-straighten And Pre-cut
Cross Wire Type Pre-straighten And Pre-cut Main Motor 5.5kw
Copper Material Red Copper Welding Speed 45-75 Times Per Min
Labor Cost 2 Persons Machine Weight 4.5T
HS Code 8463300000 Machine Color As Per Your Requirement
High Light

PLC Fence Panel Machine

,

5.5kw Fence Panel Machine

,

3.0mm Mesh Panel Welding Machine
Leave a Message
Product Description

5.5kw Cross Wire Hopper Load 100kg Wire PLC Mesh Panel Welding Machine





Mesh Panel Welding Machine Introduction:

The mesh panel welding machine is made of thick plate steel. Which is more strong and stable when machine is working. The mesh panel welding mahcine is used to make wire mesh panel. The range of wire diameter from 3.0mm to 6.0mm. The longitudinal wire is pre-straighten and pre-cut. Need manual to feed. And the cross wire is pre-straighten and pre-cut. The cross wire hopper is controlled by stepping motor. The cross wire hopper device can load 100kg material. The mesh panel welding machine is suitable for galvanized wire,low carbon steel wire.stainless steel wire.

Mesh Panel Welding Machine Features:

1. The control panel is more intelligent, very easy to operate. (Panasonic PLC program)

2. The longitude wires should be inserted into slot tunnels (cast iron material), suitable for different diameter.

3. The cross wires are fed from cross wire feeder, controlled by step motor and SMC (Japan) air cylinder.

4. Pure red copper (upper) and chromised bronze (lower), durable.

5. Clutch motor and helical gear reducer connect the principal axis directly, welding stable.

6. Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

7. Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.

8. The cable drag chain is Igus brand, imported from Germany, not easily hang down.

9. The longitude wires and cross wires should be pre-straightened and pre-cut.

10. The longitude wires are inserted into the slot tunnels manually.

11. The cross wire are put into the cross wire feeder, which is controlled by step motor and SMC (Japan) air cylinders, automatic falling.

Mesh Panel Welding Machine Technical Parameters:

Model DX-GWC-1500 DX-GWC-2000 DX-GWC-2500
Line wire space 50-200mm 50-200mm 50-200mm
Cross wire space 25-300mm 25-300mm 25-300mm
Width of mesh 1500mm 2000mm 2500mm
Length of mesh 6000mm 6000mm 6000mm
Welding transformer 160KVA*4PCS 160KVA*5PCS 160KVA*6PCS
Welding speed 45-75 times per min 45-75 times per min 45-75 times per min
Needed power transformer 120KVA 160KVA 160KVA
Wire diameter 3-6mm 3-6mm 3-6mm
Pulling mesh system By servo motor By servo motor By servo motor
Welding electrodes 32PCS 40PCS 48PCS
Machine weight 3.5T 4.2T 4.5T
Machine dimension 6000x2200x1700mm 6000x2700x1700mm 6000x3200x1700mm
Control system PLC PLC PLC

Mesh Panel Welding Machine Application:

railway, highway, Bridges, buildings, such as residential fence and shelves, warehouse cage welding

Mesh Panel Welding Machine Photos:

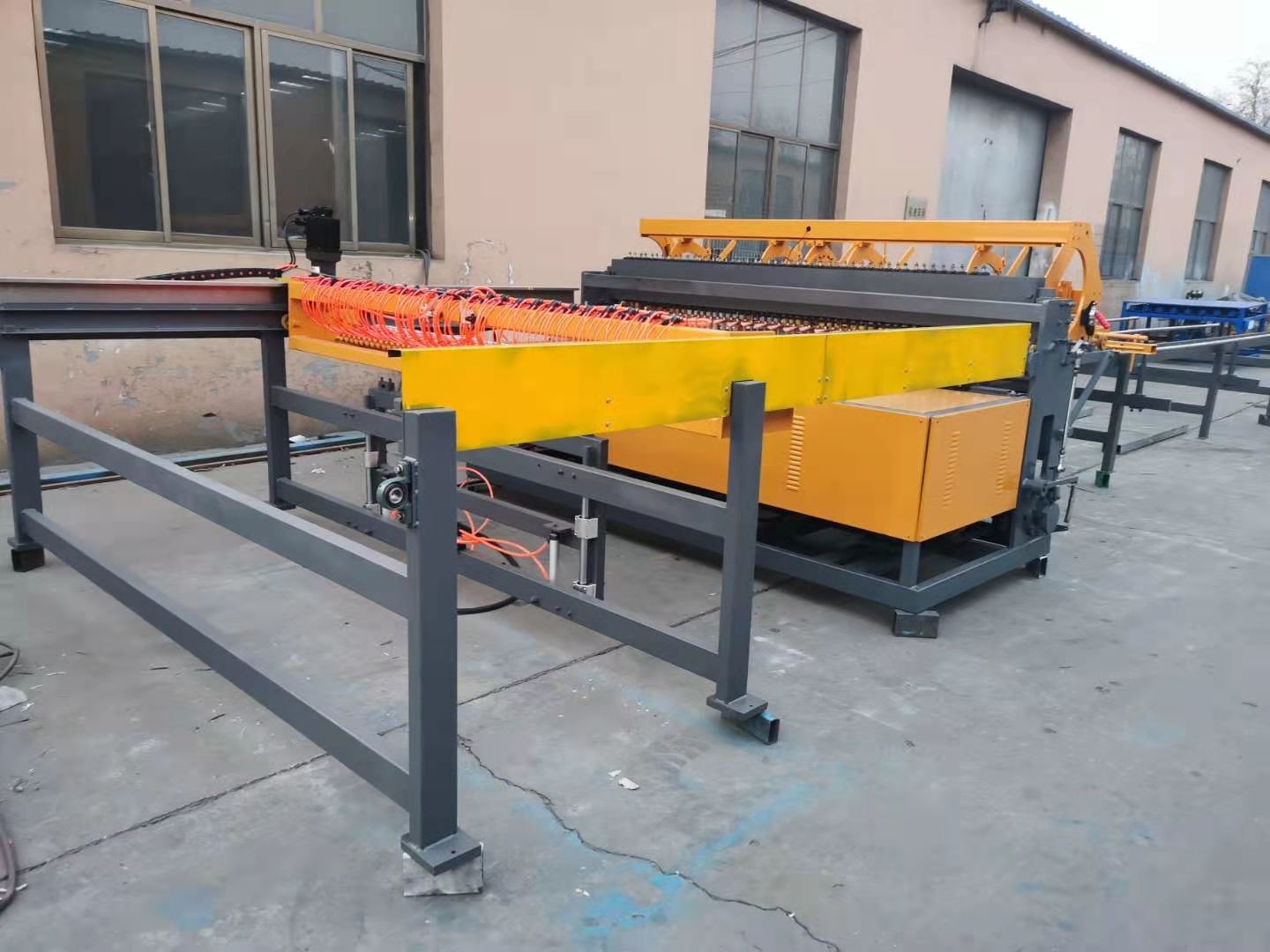

5.5kw Cross Wire Hopper Load 100kg Wire PLC Fence Panel Machine 0

5.5kw Cross Wire Hopper Load 100kg Wire PLC Fence Panel Machine 1

5.5kw Cross Wire Hopper Load 100kg Wire PLC Fence Panel Machine 2

5.5kw Cross Wire Hopper Load 100kg Wire PLC Fence Panel Machine 3
