Width 2m PLC Reinforcing Mesh Welding Machine Pneumatic Hook Pull

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2000D
Minimum Order Quantity One set
Packaging Details The Reinforcement Steel Bar Mesh Machine is nude packing. Need one 20 feet container to ship.
Delivery Time 30 working days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Steel Bar Mesh Welding Machine Voltage According To Clients' Voltage
Warranty 2 Years Usage Welding Mesh
Welding Speed 40-70 Times/min Rated Capacity 150kva*12pcs
Mesh Width 0.9-2m Mesh Length Max. 12m
Control System Panasonic PLC Condition New
Longitudinal Wire Space 100-250mm Cross Wire Space 50-300mm
High Light

reinforcing mesh welding machine plc


width 2m reinforcing mesh welding machine


pneumatic hook pull reinforcing mesh machine

Leave a Message
Product Description

Width 2m Pneumatic Hook Pull Mesh Reinforcement Steel Bar Mesh Machine



Reinforcement Steel Bar Mesh Machine Introduction:


1. The reinforcement steel bar mesh machine adopts electrical synchronous control technique. Both separate-phase welding and welding time are controlled by digital and integrated electric circuit. This operation is accurate and stable. Firm welded spot is firm and without welded tracks.
2. The input front-panel is touch screen. The operation is more intelligent and reasonable.
3. The longitudinal wire and the cross wire are pre-straightened and pre-cut.
4. The pulling mesh is controlled by servo motor, And the pulling mesh is by pneumatic hopk. Wire mesh panel is pulled automatically.
5. Longitudinal wire feeding device save more welding time. The cross wire feeds from the hopper automatically.

6. The welding transformer adopts water-cooling system. The water cooling system prolongs the service time of transformer.

7. Cross wires also adopt pre-cut wires,the cross wire hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of the device from the large storing hopper(storage up to 1000kg),it is installed in the removable pulling mesh rack,very convenient to adjust and maintain.

8. Our transformers adopts big power at 160KVA every one,which can ensure the welding quality in good condition and adopt water cooling system,so the reinforcement steel bar mesh machine can work for 24 hours continuously.

9. Pulling mesh way adapts servo motor back and forward according to the setting parameters into the touch screen.


Reinforcement Steel Bar Mesh Machine Technical Parameters:


Parameters DX-GWC-1500D DX-GWC-2000D DX-GWC-2500D
Welding width 1500mm 2000mm 2500mm
Mesh size 50-300mm 50-300mm 50-300mm
Mesh length 3-12m 3-12m 3-12m
Number of welding electrode 30PCS 40PCS 50PCS
Welding transformer 160KVA*5PCS 160KVA*7PCS 160KVA*9PCS
Size of welding electrode 35*35*25mm 35*35*25mm 35*35*25mm
Power transformer 120KVA 120KVA 120KVA
Welding speed 40-70 times per min 40-70 times per min 40-70 times per min
Pulling mesh system By servo motor By servo motor By servo motor
Main motor 5.5KW 7.5KW 11KW
Machine weight 4500kg 5500kg 6200kg
Machine dimension 7500*2200*1700mm 7500*2800*1700mm 7500*3300*1700mm
Power consumption 7-8KW PER HOUR 8-9KW PER HOUR 10KW PER HOUR
Labor cost 2 workers 2 workers 2 workers


Reinforcement Steel Bar Mesh Machine Applications:


Mainly used in coal mine roadway protection and reinforcement, concrete pavement, bridge pavement, airport runway, tunnel lining, house floor, roof, wall.

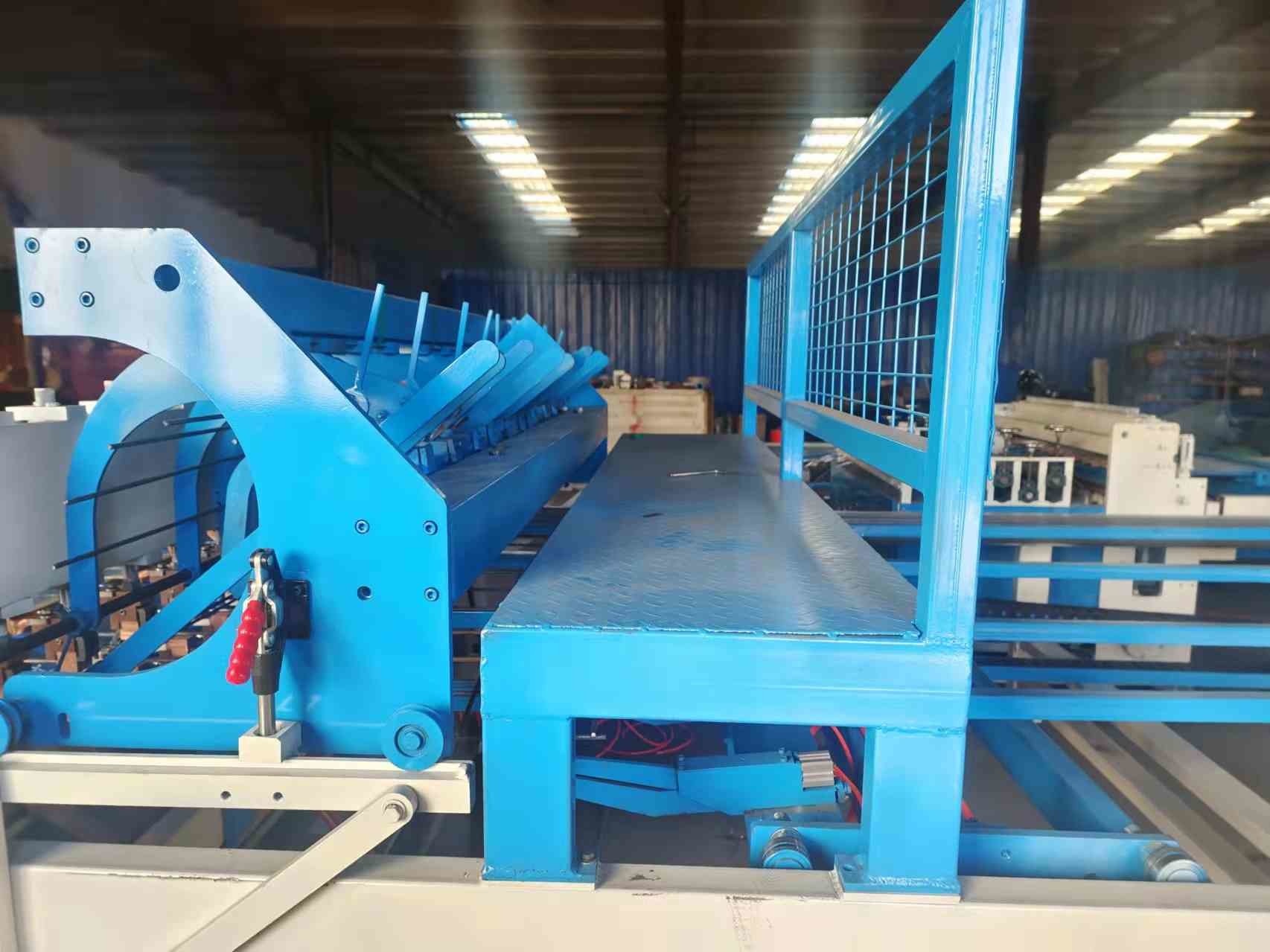

Reinforcement Steel Bar Mesh Machine Photos:
