Product Name Concrete Rebar Mesh Welding Machine Wire Diameter 6-12mm
Width Of Mesh 2500mm Length Of Mesh 6m
Mesh Size 100*100mm Machine Dimension 21*3.4*2.1m
Machine Weight 14T Welding Speed 45-70 Times Per Min
Number Of Welding Transformer 160KVA*12PCS Main Motor 18KW
Voltage 380V 50Hz 3Phase/Customized Warranty 2 Years
Usage Welding Steel Mesh Type Automatic
High Light

24pcs spots reinforcing mesh welding machine

,

concrete rebar reinforcing mesh welding machine

,

reinforcing concrete rebar mesh welding machine

Leave a Message
Product Description

24pcs Welding Spots Mesh Length 6m Concrete Rebar Mesh Welding Machine





Concrete Rebar Mesh Welding Machine Introduction:



DX-GWC-2500 Concrete Rebar Mesh Welding Machine is a special equipment for steel welding mesh. The Concrete Rebar Mesh Welding Machine makes use of the principle of multi-electrode resistance spot welding to weld the longitudinal and transverse bars of the steel bar into a firm mesh according to the set requirements. This Concrete Rebar Mesh Welding Machine can be used for cold rolled ribbed steel bar, cold rolled smooth steel bar or hot rolled ribbed steel bar. The Concrete Rebar Mesh Welding Machine is composed of welding mechanism, longitudinal reinforcement, transverse reinforcement feeding mechanism, mesh stepping mechanism, mesh and conveying mechanism,electrical control system, cooling system and other components.



Concrete Rebar Mesh Welding Machine Features:



1. The maximum mesh width can be 2.5m.
2. Multiple adjustment of longitudinal bar spacing of 100, 150, 200, 50 or more.
3. The welding transformer adopts the latest technology vacuum epoxy casting, which is different from the general welding transformer.
4. The welding transformer adopts forced water cooling technology to ensure long-term continuous use. Theoretically, as long as the cooling water is continuous, the service life can be as long as the equipment.
5. The welding transformer is controlled by coarse and computer fine adjustment, which can automatically lock the welded steel bar of each specification, especially the hot rolled ribbed steel bar.
6. The current of the welding transformer is targeted accurately, which makes the welding of cold rolled ribbed steel bar, cold rolled smooth steel bar or hot rolled ribbed steel bar have small spark and firm welding.
7. The diameter of welded steel bar is φ 6~ φ 12mm, and the welding speed is 45-65 times per minute.
8. Pneumatic system adopts air filter and oil mist separator to effectively separate water, which can ensure the normal operation of pneumatic system and prolong the service life.
9. Automatic detection device of horizontal bars is adopted to ensure that every steel bar can be welded firmly and ensure product quality.

10. CNC pull mesh system adopts international advanced servo drive control mode.
11. Adopt Japanese famous brand full digital servo motor and servo controller, the spacing of transverse bars can be adjusted arbitrarily, and the size is accurate.
12. Each mesh can have 29 kinds of spacing changes to meet different requirements of various customers.



Automatic pulling mesh mechanism and automatic mesh conveyer system:


1. After welding, the automatic manipulator will pull out all the mesh pieces. (No need to manually pull the net)

2. When the pulled mesh is detected in place on the flip plate, the flip plate will automatically turn down and the mesh will automatically fall off
To conveyor raceway.
3. In the racetrack mesh can be rolled out individually, but also according to customer requirements set more than one roll out, do not stop the network, continuous production, save labor and time, greatly improve production efficiency.
4. When there are more than one mesh on the raceway, it can automatically push the mesh together and put out the mesh in piles.
5. Raceway configuration is 12 meters, the longest mesh finished product is 6 meters. (Special requirements can be customized)


Computer control system:


1. CNC servo system adopts panasonic servo control system imported from Japan.
2. The numerical control operating system adopts industrial LCD screen with keyboard and mouse, which is easy to operate and cheap to use.
3. All security protection functions to maximize the safety of operators and equipment.
4. Through accurate calculation to control two reinforcement welding network machine with a welding transformer, so as to achieve the most economic power consumption for users.
5. Control welding current through scientific calculation, so as to achieve the lowest power consumption of the company's equipment under the same conditions.



Concrete Rebar Mesh Welding Machine Technical Parameters:



Model DX-GWC-2500
Wire diameter 6--12mm
Max.width of mesh panel 2500mm
Max. length of mesh panel 6m
Longitudinal wire space 100-300mm
Cross wire space  50-300mm
Main motor  18KW
Manpower 3 persons
Power supply  300KVA
Number of welding transformer 160KVA*12PCS
Machine weight 14T
Machine dimension 21*3.4*2.1m
Power consumption 22KW/h
Workshop space  45m*8m
Production capacity  35 tons per day



Concrete Rebar Mesh Welding Machine Applications:



In the industrial and civil housing beam column floor, roof, wall, concrete pavement, bridge pavement, airport runway, tunnel lining and other fields.

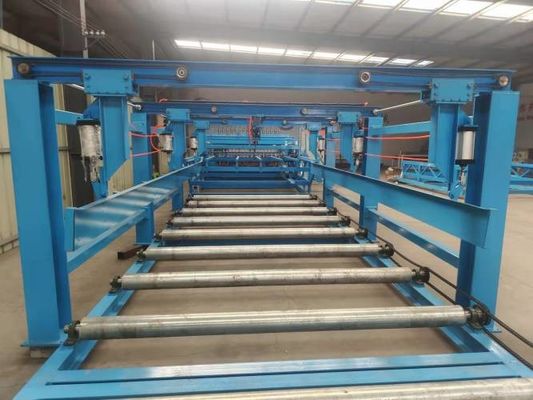

Concrete Rebar Mesh Welding Machine Photos:
