Product Name Reinforcing Steel Bar Mesh Welding Machine Wire Diameter 6-12mm
Width Of Mesh 2500mm Length Of Mesh 6m
Mesh Size 100*100mm Machine Dimension 21*3.4*2.1m
Machine Weight 14T Welding Speed 45-70 Times Per Min
Number Of Welding Transformer 160KVA*12PCS Main Motor 18KW
Voltage 380V 50Hz 3Phase/Customized Warranty 2 Years
High Light

servo motor pull reinforcing mesh machine

,

cnc reinforcing mesh welding machine

,

steel bar reinforcing mesh welding machine

Leave a Message
Product Description

Servo Motor Pull Mesh CNC Reinforcing Steel Bar Mesh Welding Machine





Reinforcing Steel Bar Mesh Welding Machine Introduction:



DX-GWC-2500 reinforcing steel bar mesh welding machine is a special equipment for steel welding mesh. The Reinforcing steel bar mesh welding machine makes use of the principle of multi-electrode resistance spot welding to weld the longitudinal and transverse bars of the steel bar into a firm mesh according to the set requirements. The reinforcing steel bar mesh welding machine can be used for cold rolled ribbed steel bar, cold rolled smooth steel bar or hot rolled ribbed steel bar. The reinforcing steel bar mesh welding machine is composed of welding mechanism, longitudinal reinforcement, transverse reinforcement feeding mechanism, mesh stepping mechanism, mesh and conveying mechanism,electrical control system, cooling system and other components.



Reinforcing Steel Bar Mesh Welding Machine Features:



1. The maximum mesh width can be 2.5m.


2. Multiple adjustment of longitudinal bar spacing of 100, 150, 200, 50 or more.


3. The welding transformer adopts the latest technology vacuum epoxy casting, which is different from the general welding transformer.


4. The welding transformer adopts forced water cooling technology to ensure long-term continuous use. Theoretically, as long as the cooling water is continuous, the service life can be as long as the equipment.


5. The welding transformer is controlled by coarse and computer fine adjustment, which can automatically lock the welded steel bar of each specification, especially the hot rolled ribbed steel bar.


6. The current of the welding transformer is targeted accurately, which makes the welding of cold rolled ribbed steel bar, cold rolled smooth steel bar or hot rolled ribbed steel bar have small spark and firm welding.


7. The diameter of welded steel bar is φ 6~ φ 12mm, and the welding speed is 45-65 times per minute.


8. Pneumatic system adopts air filter and oil mist separator to effectively separate water, which can ensure the normal operation of pneumatic system and prolong the service life.


9. Automatic detection device of horizontal bars is adopted to ensure that every steel bar can be welded firmly and ensure product quality.



10. CNC pull mesh system adopts international advanced servo drive control mode.


11. Adopt Japanese famous brand full digital servo motor and servo controller, the spacing of transverse bars can be adjusted arbitrarily, and the size is accurate.



Automatic pulling mesh mechanism and automatic mesh conveyer system:


1. After welding, the automatic manipulator will pull out all the mesh pieces. (No need to manually pull mesh)



2. When the pulled mesh is detected in place on the flip plate, the flip plate will automatically turn down and the mesh will automatically fall off
To conveyor raceway.


3. In the racetrack mesh can be rolled out individually, but also according to customer requirements set more than one roll out, do not stop the mesh, continuous production, save labor and time, greatly improve production efficiency.


4. When there are more than one mesh on the raceway, it can automatically push the mesh together and put out the mesh in piles.


5. Raceway configuration is 12 meters, the longest mesh finished product is 6 meters. (Special requirements can be customized)



Reinforcing Steel Bar Mesh Welding Machine Technical Parameters:



Model DX-GWC-2000B DX-GWC-2500B DX-GWC-3000B
Power supply 220V,380V,415V,440V 220V,380V,415V,440V 220V,380V,415V,440V
Air pump pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Water cooling water pressure 0.3MPa 0.3MPa 0.3MPa
Welding mesh width 2000mm 2500mm 3000mm
Line wire space 100-300mm 100-300mm 100-300mm
Cross wire space 100-300mm 100-300mm 100-300mm
Welding electrodes 20PCS 24PCS 30PCS
Welding transformer 200KVA*10PCS 200KVA*12PCS 200KVA*15PCS
Line wire type Pre-cut feeding by car Pre-cut feeding by car Pre-cut feeding by car
Cross wire type Pre-cut automatic feed Pre-cut automatic feed Pre-cut automatic feed
Welding speed 60-70 times per min 60-70 times per min 60-70 times per min
Wire diameter 5-12mm 5-12mm 5-12mm
Falling mesh system Automatic Automatic Automatic
Capacity 35-40 tons in 12 hours 35-40 tons in 12 hours 35-40 tons in 12 hours



Reinforcing Steel Bar Mesh Welding Machine Applications:



Reinforcing steel  bar mesh is mainly used in the pavement of municipal Bridges and highway Bridges, the renovation of the old bridge deck, bridge pier crack prevention, etc. Used for airport runway, tunnel, highway, concrete pipeline, water conservancy dam foundation, pier, bridge, with progressive structural strength, steel saving, labor saving, convenient transportation, fast construction, grid placement scale precision, easy, large-scale production, summed up cost-effective advantages.

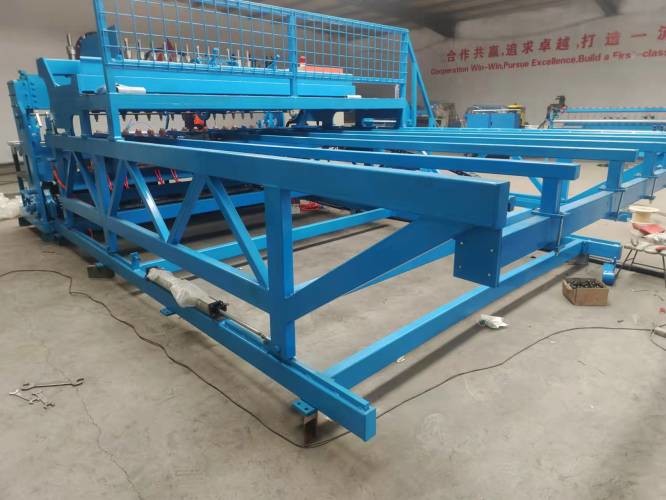

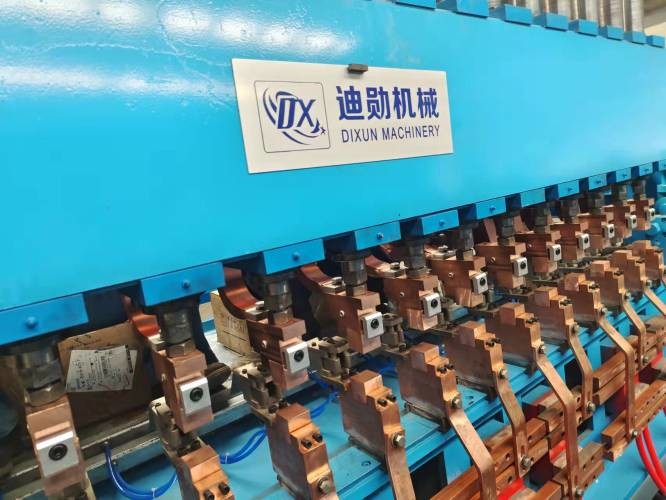

Reinforcing Steel Bar Mesh Welding Machine Photos:
