Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock

  • Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock
  • Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock
  • Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-LWJ-2440
Minimum Order Quantity One set
Packaging Details The Fixed Knot Livestock Fence Machine is nude packaging. Need one 40ft container
Delivery Time 30 working days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Knot Fence Machine Fence Width 2440mm
Fence Length 100m Line Wire Size 2.0-2.8mm
Stay Wire Size 2.0-2.8mm Fixed Knot Wire Size 2.0-2.4mm
Motor 44KW Weaving Speed 28 Times Per Min
Discharge Roll Automatic Line Wire Space Min 75mm
Stay Wire Space Min 50mm Manpower 1 Person
High Light

height 2.4m fixed knot fence machine

,

motor 44kw fixed knot fence machine

,

cnc livestock deer fence machine
Leave a Message
Product Description

CNC Fence Height 2.4m Motor 44KW Fixed Knot Livestock Fence Machine





Fixed Knot Livestock Fence Machine Introduction:



Fixed Knot Livestock Fence Machine is used to produce grassland fence and field fence. The Fixed Knot Livestock Fence Machine is used to weave wrap-around fence,it can weave the diameter wire and weft wire together automatically. The performance of this kind of fixed knot fence is better than that of hinge joint fence.Because it is not easy to move the knot at the wire crossing.It is widely used in grassland, farm, animal husbandry and breeding.


Fixed Knot Livestock Fence Machine Features:

1. It is suitable to all kinds of carbon wires.
2. The mesh size has a wide of wide adjustable range.
3. The fixed knot livestock fence machine can save 20% of your electricity.
4. Production efficiency is about twice of same species.
5. The loss of the raw materials of the same species is 1%-5%,while the innovative grassland fence machine is nearly zero.
6. Fixed Knot Livestock Fence Machineis easy and simple to handle.the worker has the common mechanical konwledge can master it in one hour.

Fixed Knot Livestock Fence Machine Technical Parameters:

Model
DX-LWJ-1560
DX-LWJ-1800
DX-LWJ-2440
Stay wire diameter
2.0-2.8 mm
2.0-2.8 mm
2.0-2.8 mm
Line wire diameter
2.0-2.8 mm
2.0-2.8 mm
2.0-2.8 mm
Knot wire diameter
1.6-2.5 mm
1.6-2.5 mm
1.6-2.5 mm
Production speed
28 Time /min
28 Time /min
28 Time /min
Fence height
Max 1560 mm
Max 1800 mm
Max 2400 mm
Line wire number
Max 14
Max 16
Max 21
Line wire spacing
75 mm (Multiple adjust)
Cross wire spacing
50-450 mm(Arbitrarily adjust)
Roll mesh length
30-100 meter
Line wire testing
Automatic stop lack of wire
Cross wire testing
Automatic stop lack of wire
Knot wire testing
Automatic stop lack of wire
Control system
PLC+touch screen
Dimensions
5000*2000*2600 mm
5000*2300*2600 mm
5000*2800*2600 mm
Weight
6800 kg
7200kg
8000 kg
Wire material
Iron wire, Steel wire, Galvanized wire, etc

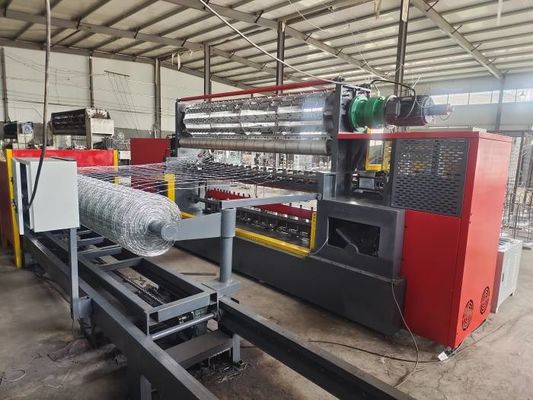

Photos of Fixed Knot Livestock Fence Machine:



Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock 0

Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock 1

Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock 2

Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock 3

Cnc Height 2.4m Fixed Knot Fence Machine Motor 44kw Livestock 4
