Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc

  • Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc
  • Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc
  • Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-LWJ-2440
Minimum Order Quantity One set
Packaging Details The CNC Cattle Fence Machine is nude packing. Need one 40ft container to ship.
Delivery Time 30 working days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Knot CNC Cattle Fence Machine After-sales Service Provided Engineers Available To Service Machinery Overseas
Weight 8000kg Warranty 2 Years
Voltage 220V/380V/415V/440V Type Fixed Knot Grassland Fence Machine
Width 1442mm 1880mm 2000mm 2400mm Color Requirement
Application Cattle Fence Line Wire Size 2.4-2.6mm
Stay Wire Size 2.4-2.6mm Fixed Knot Wire Size 2.0-2.4mm
Required Floor Space 25*12m Machine Service Life 20 Years
High Light

space 75mm cattle fence machine

,

cattle fence machine cnc

,

cnc fixed knot fence machine
Leave a Message
Product Description

Space 75mm Grassland Guard Fixed Knot CNC Cattle Fence Machine





Fixed Knot CNC Cattle Fence Machine Introduction:



1. Guomao brand reducer, the best brand in China. Long service life, good quality, high stable working.

2. Frequency-variable motor is controlled by Delta inverter, adjustable working speed, saving 30% energy. Schneider electric components, low failure rate.

3. Straightening rollers are specially designed for hard wire.

4. Every cross wire is equipped with one push rod, more powerful.

5. Gear cover protect the safety of operator, also protect the machine.

6. Pneumatic twisting and cutting, speed faster, high output power.

7. Twisted head is made of hardened mold steel (HRC28), long service life.

8. Mesh roller is strong, easy to install and take off.



Advantages of Fixed Knot CNC Cattle Fence Machine:



1. Automatic device for stopping the machine.
2. Panasonic PLC controller--High-degree automation; Easy and safe operation
3. Sophisticated PLC control and manufacturing technique to ensure machine smooth-running.
4. Speed-adjustable motor and servo motor to save energy and increase capacity.
5. Flattening pole to make a smooth surface of finished products.
6. Products with a diverse specification.
7. Protection mesh cover to ensure safety.
8. Deer fence / fixed knot fence is extensively used in feeding deer, husbandry, mountain isolation, etc.



Fixed Knot CNC Cattle Fence Machine Technical Parameters:



Model DX-LWJ-1500 DX-LWJ-2100 DX-LWJ-2440
Fence width 1524mm 2082mm 2438mm
Max. No.Line wire 16pcs 18pcs 20pcs
Line wire space Min.75mm Min.75mm Min.75mm
Stay wire space 75mm,150mm,300mm 75mm,150mm,300mm 75mm,150mm,300mm
Line wire size 2.4-2.6mm 2.4-2.6mm 2.4-2.6mm
Stay wire size 2.4-2.6mm 2.4-2.6mm 2.4-2.6mm
Fixed knot size 2.0-2.24mm 2.0-2.24mm 2.0-2.24mm
Length of fence 200m 200m 200m
Motor system Adjusable-speed motor Adjustable-speed motor Adjustable-speed motor
Control system PLC Panasonic brand PLC Panasonic brand PLC Panasonic brand
Voltage  220V/380V/415V/440V 220V/380V/415V/440V 220V/380V/415V/440V
Control system voltage DC 24V DC 24V DC 24V
Machine weight 8000kg 8700kg 9500kg
Machine dimension 3900*3500*2250mm 4450*3500*2250mm 4800*3500*2250mm
Required floor space 20m*10m 20m*10m 20m*10m



Fixed Knot CNC Cattle Fence Machine Applications:



The fixed knot cattle fence is widely used in Used for grassland, pasture, forest, poultry house, feeding, stadium, green belt, river bank, road and bridge, reservoir, zoo fence, construction site fence, captive poultry, slope greening, landscaping nets, wildlife park, grassland, pasture and other enclosures grazing enclosure.

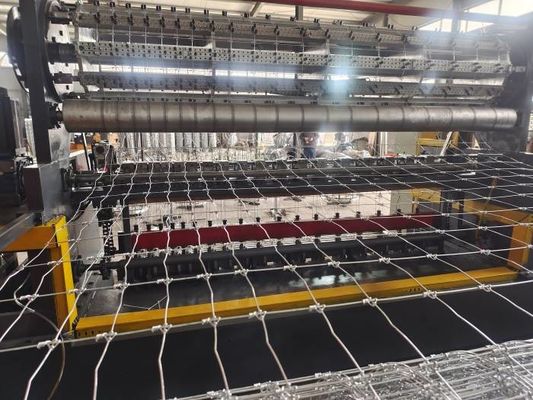

Photos of Fixed Knot CNC Cattle Fence Machine:



Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc 0

Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc 1

Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc 2

Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc 3

Space 75mm Cattle Fence Machine Grassland Guard Fixed Knot Cnc 4
