Automatic Fall Reinforcing Mesh Welding Machine Panasonic Plc

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWCD-2500
Minimum Order Quantity 1 set
Packaging Details The Reinforcing Mesh Making Machine is nude packing. Need one 40ft container to ship.
Delivery Time 30 working days
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Reinforcing Mesh Making Machine After-sales Service Provided Engineers Available To Service Machinery Overseas,commissioning And Training,Video Technical Support
Wire Diameter 5-12mm Voltage 380V/220V/415V/440V
Warranty 1 Year Welding Speed 40--65 Times Per Min
Rated Capacity 150kva*12pcs Mesh Width Max. 2.5m
Mesh Length 3-12 Meter Control System Panasonic PLC
Certification CE Condition New
High Light

automatic fall reinforcing mesh welding machine


panasonic reinforcing mesh welding machine


plc reinforcing mesh machine

Leave a Message
Product Description

Automatic Fall Mesh Panasonic PLC Reinforcing Mesh Making Machine



Reinforcing Mesh Making Machine Introduction:


The reinforcing mesh making machine is mainly through the automatic CNC technology to fast and accurate welding of steel bars into a network, widely used in highways, high-speed railways, water conservancy Bridges, tunnels, subway, container terminals, airport runways and so on. Multiple increase of 50 mm above 10 cm, to ensure fast and seamless welding specifications change. To achieve accurate, fast welding, to ensure quality.


Reinforcing Mesh Making Machine Features:


1. The reinforcing mesh making machine adopts computer and programmable controller control, high degree of automation.

2. Imported automatic digital servo motor system to ensure the mesh size is accurate.

3. The reinforcing mesh making machine can weld cold rolled ribbed steel bar, hot rolled ribbed steel bar, hot rolled disk steel bar, cold rolled light circle and other materials, wide adaptability.

4. Transformer, SCR, upper and lower electrode welding system adopts forced water cooling and flow protection device, the unit can reliably work continuously.

5. According to the user's electric capacity, the use of one or two welding, flexibility.

6. Blanking device adopts mechanical transmission, reduce labor intensity, improve production efficiency.

7. Automatic positioning of the length of the network cutting mechanism, accurate cutting of the network.

8. Longitudinal reinforcement design with wire splitter, flexible and convenient to change the mesh, to ensure the accuracy of the finished mesh.

9. Unique lifting mechanism can lift the electrode when the mesh is dragged to ensure the service life of the electrode

10. Longitudinal reinforcement with storage mechanism, can ensure the quality of continuous feeding.

11. Longitudinal and horizontal straightening mechanism is adopted to ensure the straightness of the wire and the beauty of the net.

12. The unit can be separated structure, convenient specification adjustment and maintenance.

13. Welding pneumatic system pressure stepless adjustable, fast response to steel bar specifications change, welding pressure uniform, to ensure the quality of all solder joints.

14. When welding the standard network, the position of the upper and lower electrodes need not be adjusted, so that the spacing can be changed casually, which greatly improves the efficiency.

15. Horizontal bar adopts automatic step blanking, with in-place detection device to ensure reliable and accurate blanking.


Reinforcing Mesh Making Machine Technical Parameters:


Model DX-GWCD-2500 DX-GWCD-3000
Welding mesh width 2500mm 3000mm
Longitudinal wire space 100-250mm 100-250mm
Horizontal wire space 100-300mm 100-300mm
Rebar diameter 5-12mm 5-12mm
Max.rebar diameter 12+12mm 12+12mm
Number of welding electrode 24pcs 30pcs
Rated capacity 150KVA*12PCS 150KVA*15PCS
The type of welding pressure Spring Spring
Welding method  SCR synchronous control SCR synchronous control
Longitudinal wire type pre-straighten rebar pre-straighten rebar
Horizontal wire type pre-straighten rebar pre-straighten rebar
Water-cooling method Water-cooling welding transformer Water-cooling welding transformer
Welding speed 40--65 times per min 40--65 times per min
Manpower 3 persons 3 persons
Machine weight 11T 15T
Required floor space 40m*10m 10m*12m

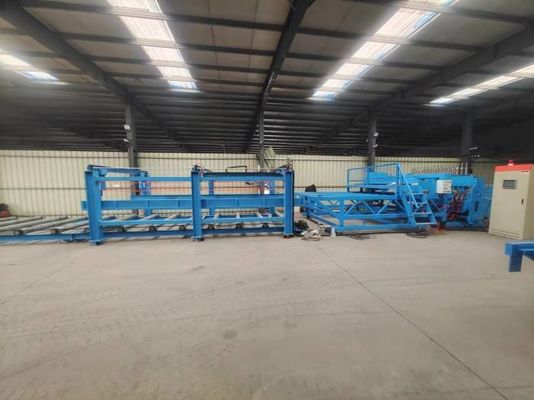

Reinforcing Mesh Making Machine Photos:


Automatic Fall Reinforcing Mesh Welding Machine Panasonic Plc 0

Automatic Fall Reinforcing Mesh Welding Machine Panasonic Plc 1

Automatic Fall Reinforcing Mesh Welding Machine Panasonic Plc 2

Automatic Fall Reinforcing Mesh Welding Machine Panasonic Plc 3

Automatic Fall Reinforcing Mesh Welding Machine Panasonic Plc 4

Automatic Fall Reinforcing Mesh Welding Machine Panasonic Plc 5
