100mm Thickness Iron Plate Deer Fence Machine For Height 2440mm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Fixed Knot Fence Production Line | After-sales Service Provided | Engineers Available To Service Machinery Overseas,commissioning And Training,Video Technical Support |
---|---|---|---|
Weight | 8000kg | Warranty | One Year |
Speed | 30row/min | Line Wire Space | Minimum 75mm |
Cross Wire Space | 75mm 150mm 300mm 450mm | Control System | Panasonic PLC |
Length Of Mesh | 200m | Line Wire Feeding | Coil Wire Feeding |
Cross Wire Feeding | Coil Wire Feeding | Floor Space | 20*10m |
Highlight | 100mm thickness deer fence machine,fixed knot deer fence machine,height 2440mm fixed knot fence machine |

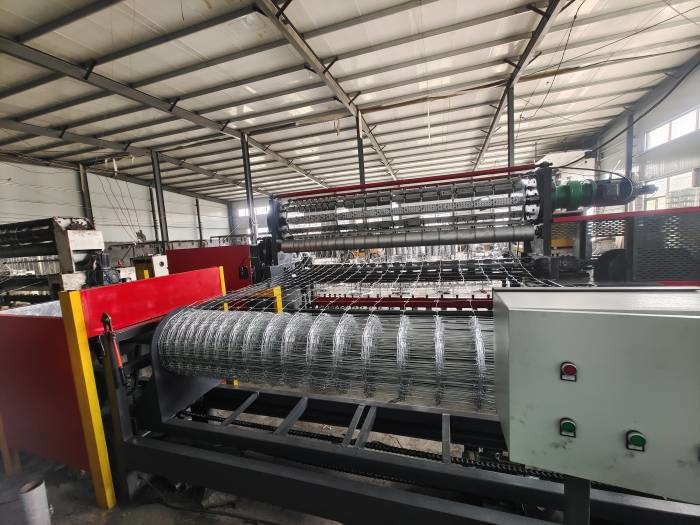

100mm Thickness Iron Plate Height 2440mm Fixed Knot Fence Production Line
Fixed Knot Fence Production Line Introduction:
The Fixed knot fence production line also named as deer fence or animal fence which can produce fixed knot fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.
PLC Touch Screen Controller.The fixed knot fence production line is controlled by PLC automatic controller, so only one person is needed to operate it.
I
1. Automatic input wire
2. Automatic mesh size mould
3. Fence Rolling device: Automatic fence rolling and unload the roll mesh automatic.
1. Panasonic PLC controller--High degree automation; Easy and safe operation.
2. All the electric system adopt Schneider France.
3. The bearing adopts SKF from Sweden.
4. The pneumatic element adopt SMC from Japan.
5. The linear guideway adopt HIWIN
6. Sophisticated PLC control and manufacturing technique to ensure machine smooth-running.
7. Speed-adjustable motor and servo motor to save energy and increase capacity.
8. Flattening pole to make smooth surface of finished products.
9. Products with diverse specification.
10. The machine will unload the fixed knot fence automatically after finished one roll fence mesh.
Model | DX-LWJ-1500 | DX-LWJ-2100 | DX-LWJ-2440 |
Maximum Fence Width | 1.524M | 2.082M | 2.438M |
Maximum Number of Line Wires | 16line | 18line | 20line |
Line wire spacings | Minimum 76mm (3'')can be increased by additional increments of 12.5mm(1/2'') or multiples of 12.5mm(1/2'') | ||
Stay wire spacings | 150mm,300mm,and450mm(6'',12'',and18) | ||
Line wire size | 2.0mm-2.8mm | ||
Stay wire size | 2.0mm-2.8mm | ||
Knot wire size | 2.0mm-2.4mm | ||
Length of roll | Up to 220m(660ft) | ||
Motion system | Controlled vector and servo drives(MIGE ISO9001-2008) | ||
PLC control of machine functions | Panasonnic | ||
Motion supply voltage | 3 phase 380V AC 50/60HZ | ||
Control supply voltage | DC 24V | ||
Speed | 22 stays/minute | ||
Machine weight | 5900kg | 6500kg | 7800kg |
Main body size | 3900*6800*2250 | 4450*6800*2250 | 4800*6800*2250 |
