Plc Cattle Weaving Fixed Knot Fence Machine Line Wire Space 3 Inches

  • Plc Cattle Weaving Fixed Knot Fence Machine Line Wire Space 3 Inches
  • Plc Cattle Weaving Fixed Knot Fence Machine Line Wire Space 3 Inches
  • Plc Cattle Weaving Fixed Knot Fence Machine Line Wire Space 3 Inches
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-LWJ-2440
Minimum Order Quantity One set
Packaging Details The Fixed Knot Cattle Fence Weaving Machine is put into 40 feet container.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fixed Knot Cattle Fence Weaving Machine Line Wire Space 3 Inches
Stay Wire Space 3 Inches 6 Inches 9 Inches 12 Inches Line Wire Size 2.0-2.8mm
Stay Wire Size 2.0-2.8mm Fixed Knot Wire Size 1.8-2.4mm
Machine Size 5800*1400*2200mm Machine Weight 8000kg
Weave Speed 25 Times Per Min Material Low Carbon Steel Wire, Galvanized Wire
Floor Space 20*8m Control System PLC
High Light

plc fixed knot fence machine

,

cattle fixed knot fence machine

,

fixed knot wire fence machine
Leave a Message
Product Description

Line Wire Space 3 Inches PLC Fixed Knot Cattle Fence Weaving Machine





Fixed Knot Cattle Fence Weaving Machine Introduction:



The new type fixed knot cattle weaving fence machine is developed by our technical team and New Zealand company, Mechanical production of wire mesh products have great advantages :

1. Grassland net fence is made of high-strength galvanized steel wire, with high strength and large pulling force. It can withstand the violent impact of cattle, horses, sheep and other livestock, and is safe and reliable.


2. Steel wire, galvanized around the surface, other parts are taken anti rust and anti-corrosion measures, can adapt to harsh working environment, life up to 20 years.

3. The weft of woven net adopts wave rolling technology, which enhances the elasticity and buffering function, and can adapt to the deformation of thermal expansion and cold contraction, so that the net fence always keeps in a tight state.

4. The utility model has the advantages of simple structure, convenient maintenance, short construction period, small volume, light weight, easy transportation and installation, ventilation and light transmission, and does not affect the terrain.

5. Roll mesh collection system
Roll mesh collection system will automatically adjust the tightness according to the roll mesh diameter,It's more convenient to take away the roll mesh.

6. Knot wire tightness testing system
Knot wire is tight ,machine will stop.This will make the knot wire equal in length. Make the knot more orderly.

7. Wire pay system

The pay off reel is produced by our factory, which contains the bearing design to make the reel rotate smoothly and reduce the resistance.

8. Machine control system

The control system is composed of Chinese and English,the spacing of the cross wires can be adjusted on the touch screen.

Fixed Knot Cattle Fence Weaving Machine Technical Parameters:

Model
DX-LWJ-1560
DX-LWJ-1800
DX-LWJ-2440
Line wire spacing
75 mm (Multiple adjust)
75 mm (Multiple adjust)
75 mm (Multiple adjust)
Stay wire spacing
75-300 mm(Arbitrarily adjust)
Edge wire diameter
2.0-3.5 mm
2.0-3.5 mm
2.0-3.5 mm
Line wire diameter
2.0-2.8 mm
2.0-2.8 mm
2.0-2.8 mm
Knot wire diameter
1.8-2.4 mm
1.8-2.4 mm
1.8-2.4 mm
Production speed
32 Time /min
32 Time /min
32 Time /min
Line wire testing
Automatic stop lack of wire
Cross wire testing
Automatic stop lack of wire
Knot wire testing
Automatic stop lack of wire
Control system
PLC+touch screen
Fence height
Max 1560 mm
Max 1800 mm
Max 2440 mm
Line wire number
Max 14
Max 16
Max 20
Roll mesh length
30-100 meter
30-100 meter
30-100 meter
Dimensions
4800*1400*2200 mm
5000*1400*2200 mm
5800*1400*2200 mm
Weight
6000 kg
6900 kg
8000 kg
Wire material
Iron wire, Steel wire, Galvanized wire, etc

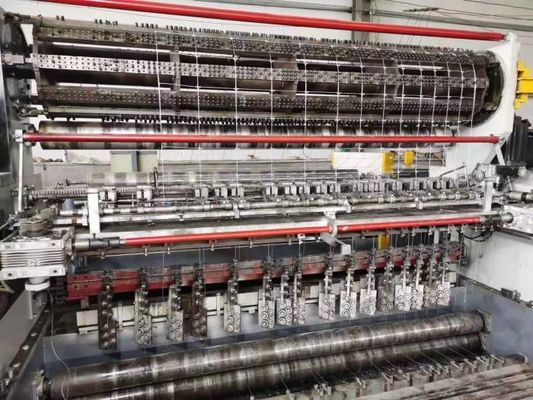

Photos of Fixed Knot Cattle Fence Weaving Machine:

Plc Cattle Weaving Fixed Knot Fence Machine Line Wire Space 3 Inches 0
Plc Cattle Weaving Fixed Knot Fence Machine Line Wire Space 3 Inches 1
Plc Cattle Weaving Fixed Knot Fence Machine Line Wire Space 3 Inches 2
Plc Cattle Weaving Fixed Knot Fence Machine Line Wire Space 3 Inches 3
