Auto Line Reinforcing Steel Bar Mesh Welding Machine 12mm Dia
|Place of Origin||China|
|Minimum Order Quantity||One set|
|Packaging Details||1.main machine and accessory equipment will be packed with skecth film paper; 2.control cabinet and spare parts will be packed with the wooden box; 3.finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not|
|Delivery Time||30 working days|
|Supply Ability||3 sets per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Reinforcing Steel Bar Mesh Welding Machine||Wire Diameter||6-12mm|
|Warranty||2 Years||Welding Speed||40-70 Times/min|
|Mesh Width||Max. 3m||Mesh Length||Max. 12m|
|Control System||PLC Control||Current||600-800A|
12mm Steel Bar Mesh Welding Machine,
Reinforcing Steel Bar Mesh Welding Machine,
PLC control Reinforcing Mesh Welding Machine
Auto Line Wire Sending 12mm Reinforcing Steel Bar Mesh Welding Machine
Introduction of Reinforcing Steel Bar Mesh Welding Machine
This reinforcing steel bar mesh welding machine is suitable for producing the mesh which the specifications vary frequently. Based on the GWC-A,the pre-feeding mechanism is added Suit for different type of steel bar such as cold-drawn,hot-rolled round steel or hot-rolled bar . The stepping mechanism of mesh are controlled by CNC servo motor,having high accuracy and easy adjustment . The mesh specification is easier to be replaced,more flexible
The electrode height can be adjusted with a long service life. There is a cross wire in-place detecion, which assures the welding quality
The UI is friendly for the operators, easily operation,intuitive and high automation. SCR trigger unit has the feature of low consumption,compact and high reliability. Fully automatic aggregate mechanism, it can reduce labor intensity and improve efficiency. Intelligent warning system of fault identification.
This pneumatic reinforcing Steel Bar Mesh Welding Machine adopts Japan Mitsubishi brand electronic synchronous control technique, welding time and sub-control welding are all composed of digital integrated circut, which has high control accuracy, stable performance, firm welding spots and without burned mark. The pneumatic welding speed is fast and the operation is simple and easy to master. The weft matched with the accurate weft cutting device and accurate positioning device, ensures the weft at the same length and without being out. The mesh drawing system is controlled by servo motor which improved the precision of mesh opening size, meanwhile the line wire and the weft wire spacing are adjustable.
Features Details of Reinforcing Steel Bar Mesh Welding Machine:
1. Reinforcing Steel Bar Mesh Welding Machine use delta (Taiwan) PLC program(Panasonic can be choice), Delta(Taiwan)
2. Reinforcing Steel Bar Mesh Welding Machine adopt Mitsubishi (Japan) and Chint (China) low-voltage apparatus.
3. Reinforcing Steel Bar Mesh Welding Machine use delta (Taiwan) servo motor for pulling mesh(Panasonic (Japan) can be choice), big power,
4. Reinforcing Steel Bar Mesh Welding Machine adopts delta (Taiwan) variable-frequency drive.
5. Reinforcing Steel Bar Mesh Welding Machine use brake clutch motor and reducer connect the principal axis directly, high stability, big It is our patent technology.
6. Reinforcing Steel Bar Mesh Welding Machine use water-cooling transformers and welding electrodes, high efficiency.
|Number of Electrodes||20||24||30||32|
|Cross Wire Space||100-300mm||100-300mm||100-300mm||100-300mm|
|Line Wire Space||100-300mm||100-300mm||100-300mm||100-300mm|
|Line Wire Feeding Way||Pre-cut Wires. By the Line Wire Sending Car|
|Cross Wire Feeding Way||Pre-cut Wires. By the Special Electrical Hopper|
|Welding Pressure||Air Cylinder|
|Welding Speed||50-75 times/min||50-75 times/min||45-60 times/min||45-60 times/min|
|Control System||PLC Control and Touch Screen|
Applications of Reinforcing Steel Bar Mesh Welding Machine:
The finish mesh normally use as brc reinforcing wire mesh, fence mesh,mine protection, widely use on side of road for protect, highway, building, bridge, road etc.

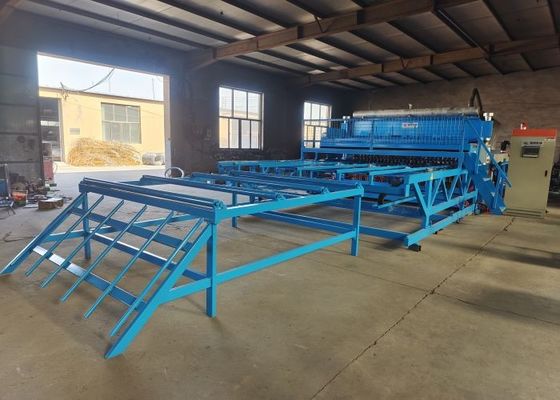

Photos of Reinforcing Steel Bar Mesh Welding Machine:
