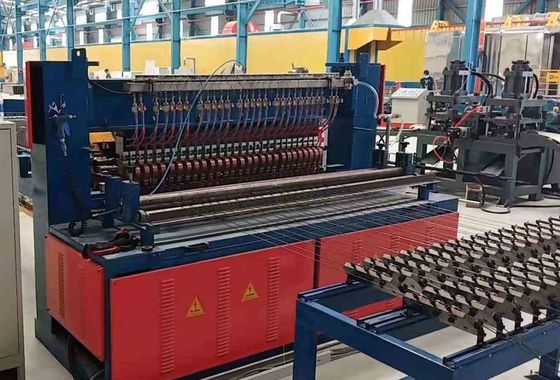

CNC Recycle Less Labor 6mm Roll Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-2500A |
| Minimum Order Quantity | One set |
| Packaging Details | Nude package. One 40 feet container can load 3 sets machines. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Roll Mesh Welding Machine | Wire Diameter | 3-6mm |
|---|---|---|---|
| Certification | CE, ISO 9001-2008 | Weight | 3300kg |
| Warranty | 1 Year | Voltage | 220V/380V/415V/440V |
| Welding Speed | 40-60 Times/minute | Mesh Width | 0.5m-2.5m |
| Rated Capacity | 4x125 KVA(customized) | Power | 4.0kw |
| Cross Wire Space | 50mm-300mm | Dimensions | 6000X3200X1800 |
| High Light | 6mm Roll Mesh Welding Machine,CNC Recycle Roll Mesh Welding Machine,6mm weld mesh making machine |
||
Product Description
CNC Recycle Pull Mesh Wire Diameter 3-6 mm Roll Mesh Welding Machine
Roll Mesh Welding Machine Introduction:
1. The roll mesh welding machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.
2. The line wire is fed from coil wires automatically, the cross wire is pre-cut, fed from hopper driven by step motor controlled.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.
4. The welding speed is fast and the welding speed is adjustable according to your required spec. The welding speed is adjustable by inout the date by touch screen. It is easy to learn and operate. The rolling wire mesh welding machine only one operator are enough. Save labor cost.
5. The finished products can be roll mesh.
6. The winding machine will rewind the mesh automatically. The winding machine is variable-frequency. The speed of winding mesh is adjustable.
7. Material:Suitable for low carbon iron wire and galvanized wire.
8. When finished produce one roll of roll mesh. Need worker to take out the conforce wire by manual.
9. The roll mesh welding machine is fully automatic. One machine only need two persons to operate. Save labor cost.
Roll Mesh Welding Machine Technical parameters:
| Type | DX-GWC-1200A | DX-GWC-1600A | DX-GWC-2000A | DX-GWC-2500A |
| Number of electrodes | 24pcs | 32pcs | 40pcs | 48pcs |
| Max mesh width | 1200mm | 1600mm | 2000mm | 2500mm |
| Wire diameter | 2.5-6.0mm | 2.5-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Line wire space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Cross wire space | 50-200mm | 50-200mm | 50-200mm | 50-200mm |
| Rated capacity | 125KVA*3 | 125KVA*4 | 125KVA*5 | 125KVA*6 |
| Welding speed | 40-60 times per min | 40-60 times per min | 40-60 times per min | 40-60 times per min |
| Control system | PLC+touch screen | PLC+touch screen | PLC+ touch screen | PLC+touch screen |
| Pulling mesh way | by servo motor | by servo motor | by servo motor | by servo motor |
| Weight | 2.6T | 3.2T | 3.9T | 4.3T |
Roll Mesh Welding Machine Applications:
The finished product roll mesh is widely used in roof construction. road construction. fence protection.
The roll mesh is widely used in industry, agriculture, construction and transportation. And it can also be used in the external walls of buildings and high-rise residential buildings, playing an important role in the external wall insulation. Not only that, but also can have a certain steel structure of the application, has become a lot of industries and fields will be used in the conforce wire.
Roll Mesh Welding Machine Packing:
Roll Mesh Welding Machine Photos:
