Galvanized Coil Razor Blade Barbed Wire Making Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-RB-25T/40T/63T
Minimum Order Quantity One set
Packaging Details 1. The main machine and auxiliary equipments will be with plastic package, spare parts in wooden box. 2. The main machine will be fixed in the container by steel wire rope to make it stable. 3. 25T machine needs one 20GP; 63T machine needs one 40HC.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Razor Barbed Wire Machine Material GI And Stainless Steel Coil
Motor 4kw 5.5kw 7.5kw Material Thickness 0.5mm Or As Per Your Requirement
Punch Speed 70 / 75 / 120 Times Per Min Punch Machine Yangli Brand
Warranty 2 Years Voltage 220V/380V/415V/440V Customized
Wire Diameter 2.2-2.9mm Finished Product Coil Razor Wire
High Light

2.9mm Razor Blade Barbed Wire Making Machine

,

Galvanized Razor Blade Barbed Wire Making Machine

,

4KW razor wire making machine

Leave a Message
Product Description

Galvanized Coil Punch Pressure 63T 9 Strips Razor Barbed Wire Making Machine





Razor Barbed Wire Machine Introduction:

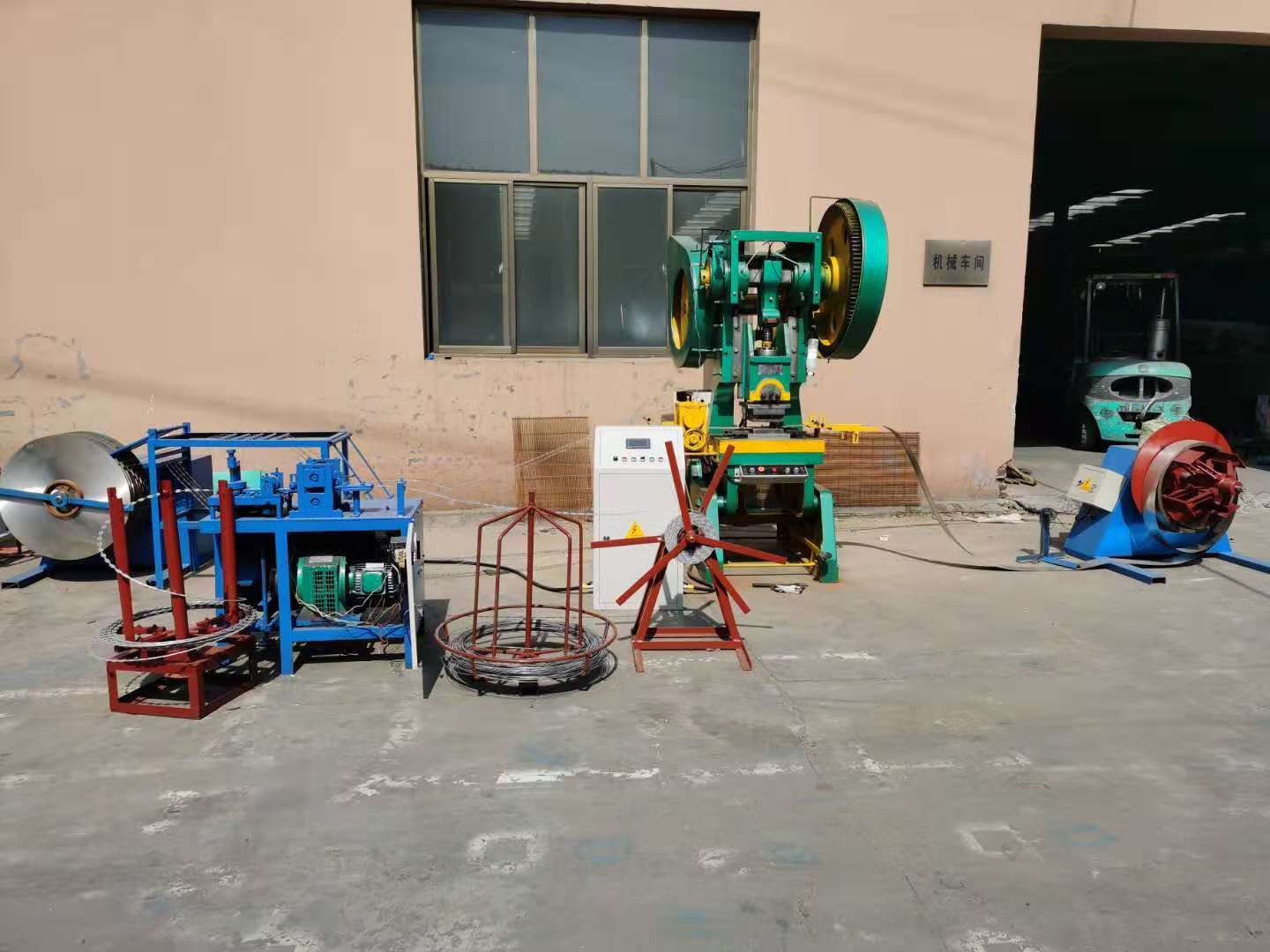

Razor Barbed Wire Machine mainly produce razor barbed wire, also called coil concertina wire. The razor barbed wire machine consists of punching press machine and package wire machine.Punching press machine used for punching and cutting steel tapes into different razor shapes with different mold.Package wire machine is used for wrapping razor strip up onto the steel wire and wind up the finished products into rolls.



Razor Barbed Wire Machine Features:



1. Automatically complete production line, operator friendly and higher speed.
2. Automatical decoiler holding max. 2 tons steel sheet; its motor made of copper leads.
3. Different ton punch press for choice to save your cost.
4. Customized mold saving 20% raw materials; hot-cast mold, one year life.
4. Slitting frame and recoiler to wind up razor tapes rolls tightly.
5. Electro-magnetic motor in coiling machine for smooth speed adjustable.
6. Multifunctional squeezing wheels for strong finished razor wire.



Razor Barbed Wire Machine Blade types for you to choose:



Style Barb length Barb width Barb space Steel tape shape
BTO-10 10±1 mm 13±1mm 26±1mm
BTO-12-1 12±1mm 13±1mm 26±1mm
BTO-12-2 12±1mm 15±1mm 26±1mm
BTO-18 18±1mm 15±1mm 33±1mm
BTO-22 22±1mm 15±1mm 48±1mm
BTO-28 28±1mm 15±1mm 49±1mm
BTO-30 30±1mm 18±1mm 49±1mm
BTO-60 60±1mm 32±1mm 96±1mm
BTO-65 65±1mm 21±1mm 100±1mm






Razor Barbed Wire Machine Technical Parameters:



Model 25T 40T 63T Coiling machine
Voltage 3phase 380V/220V/440V/415V, 50HZ or 60HZ
Power 4kw 5.5kw 7.5kw 1.5kw
Producing speed 70 times/min 75 times/min 120 times/min 3-4 Ton/8h
Pressure 25Ton 40Ton 63Ton --

Material thickness

and wire diameter

0.5±0.05(mm),according to customers' requirement 2.5mm
Material of sheet GI and stainless steel GI and stainless steel GI and stainless steel --






Razor Barbed Wire Machine Applications:



Razor barbed wire is extensively used for security isolation of military facilities, communication stations,power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.
