CE 70 Times 6mm Reinforced Mesh Welding Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500A
Minimum Order Quantity One set
Packaging Details Nude packing. One 40 feet container load one machine
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Reinforcing Mesh Welding Machine Wire Diameter 6-12mm
Voltage 380V/220V/415V/440V Weight 10T
Welding Speed 40-70 Times/min Rated Capacity 150kva*12pcs
Dimensions 9.5m*3.5m*2.2m Mesh Width 2500mm
Mesh Length Max. 12m Control System Panasonic PLC And Touch Screen
High Light

6mm Reinforced Mesh Welding Machine


2500mm Reinforced Mesh Welding Machine


12mm mesh making machine

Leave a Message
Product Description

Mesh Size Adjustable Wire Diameter 6-12mm Reinforcing Mesh Welding Machine



Reinforcing Mesh Welding Machine Introduction:


Reinforcing Mesh Welding Machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.


Reinforcing Mesh Welding Machine Features:


1.The reinforcing mesh welding machine control system Panasonic PLC automatic control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.

2.Weft wire hopper: the stepper motor drives the disk-type device to automatically drop wires, and the hopper has a large capacity of storing wires max up to 1.5 tons. When there is no wire in the hopper, the equipment will automatically stop running.

3.Line wire feeding mechanism: Mitsubishi servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send steel bar to the welding position. The reinforcing mesh welding machine start to weld automatically.

4.Mesh pulling mechanism: Mitsubishi servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

5.Low-voltage electrical appliances are made of Schneider, Tianzheng, Mingwei and other well-known brands to ensure the efficient and stable operation of the equipment.

6.The reinforcing mesh welding machine will stop working automatically if there is no cross wires in hopper device.

7.When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

8.The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.

9.The mesh pulling system in cycle is automatically calculated, no need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling.


Reinforcing Mesh Welding Machine Technical parameters:


Wire diameter 6--12mm Line wire form pre-cut wire
Weft wire space


Weft wire form pre-cut wire
Line wire space


Rated voltage 380V/50HZ (customized)
Mesh width Max 2500mm Water cooling Transformer 150KVA X 12PCS
Welding speed 40--70times/min Overall dimension 9.5X 3.5X 2.2M
Welding electrodes 24 PCS Max. mesh length 12m
Total weight 10T Main motor 15 KW



Reinforcing Mesh Welding Machine Application


Reinforcing mesh is used in industrial and civil housing beam and column floor, roof, wall, concrete pavement, bridge deck pavement, airport runway, tunnel lining, box culvert, wharf floor, precast components and other fields.

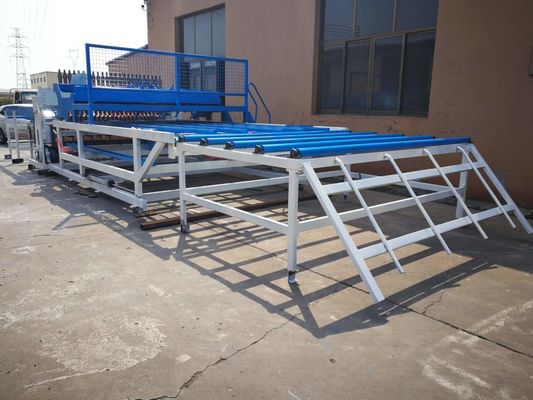

CE 70 Times 6mm Reinforced Mesh Welding Machine 0
