40 Times Steel Bar 3300mm Reinforcing Mesh Welding Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-3300A
Minimum Order Quantity One set
Packaging Details The reinforcing panel mesh welding machine is nude packing. Need 2*40 feet container to load.
Delivery Time 30 working days after receive the advance payment or L/C
Payment Terms L/C, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Reinforcing Mesh Welding Machine Wire Diameter 6-12mm
Width Of Mesh From 1000mm To 3300mm Mesh Hole Size From 100*100mm To 300*300mm (adjustable)
Length Of Mesh Max 12m Welding Transformer 160KVA*13PCS
Welding Electrodes 32PCS Power Transformer At Least 300KVA
Labor Required 2 Workers Machine Weight 25T
Voltage 380V/220V/415V/440V Warranty 2 Years
Welding Speed 40-60 Times Per Min Power Consumption 15KW/H
High Light

3300mm Reinforcing Mesh Welding Machine

,

Pneumatic Reinforcing Mesh Welding Machine

,

25T fence mesh welding machine

Leave a Message
Product Description

Pneumatic Welding Mesh Size 100*100mm Reinforcing Steel Bar Mesh Welding Machine





Reinforcing Steel Bar Mesh Welding Machine Introduction:



The reinforcing steel bar mesh welding machine is our latest product to make reinforcing panel mesh. The reinforcing steel bar mesh welding machine is working by resistance welding working principle to achieve machine working. And the machine has automatic falling mesh device.    By doing so. Save labor cost and increase production capacity. We have exported many machines to different countries. Clients are very satisfied with our machine.



Reinforcing Steel Bar Mesh Welding Machine Features:



1. The control system of the reinforcing steel bar mesh welding machine adopts synchronous CNC technology, Mitsubishi or Panasonic PLC program and HMI.

2. The control cabinet adopt touch screen and keyboard, you can change welding time and weft wire hole mesh size through touch screen. And has language in English.
3. The weft wires are fed from the hopper device automatically and is controlled by step motor.The stepper motor drives the disk-type device to drop wires automatically. The weft wire store device has more capacity can load max 1.5 tons rebar.
4.  Adjustable distance of line wire that allows different mesh hole size between the line wire, when input the distance of cross wire to computer, any mesh opening can be reach. The minimum cross wire space is 100mm, Max up to 300mm.
5. The main engine adopts imported and famous pneumatic components, making the service life long.
6. The mesh pulling system is controlled by Panasonic servo-motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.
7. The reinforcing steel bar mesh welding machine equips with 32 pieces of typical and efficient water-cooling welding transformers, The capacity of welding transformer is 160KVA*16PCS (32 pcs of welding electrodes) ——every two welding electrodes need a water cooling welding transformer. The water-cooling welding transformer with epoxy resin are adopted, which is smaller in size and higher welding capacity in safety and reliability than traditional transformers.



Reinforcing steel bar Mesh Welding Machine Technical Parameters:



Model DX-GWC-2500A DX-GWC-3000A DX-GWC-3300A
Width of mesh 2500mm 3000mm 3300mm
Line wire space 100-300mm(adjustable) 100-300mm(adjustable) 100-300mm(adjustable)
Cross wire space 100-300mm(adjustable) 100-300mm(adjustable) 100-300mm(adjustable)
Wire diameter 5-12mm 5-12mm 5-12mm
Welding electrodes 26PCS 30PCS 32PCS
Welding transformer 125KVA*13PCS 125KVA*15PCS 125KVA*16PCS
Welding press type Pneumatic Pneumatic Pneumatic
Industrial voltage 220V/380V/415V/440V 220V/380V/415V/440V 220V/380V/415V/440V
Welding way Thyristor synchronous control Thyristor synchronous control Thyristor synchtonous control
Line wire type Pre-cut Pre-cut Pre-cut
Cross wire type pre-cut Pre-cut Pre-cut
Welding speed 40-65 times per min 40-65 times per min 40-65 times per min
Overall dimension 40m*4.2m*2.3m 40m*4.7m*2.3m 40m*5.2m*2.3m
Total weight 11T 13T 15T
Labor required 2 workers 2 workers 2 workers
Falling mesh way Automatic Automatic

Automatic



Reinforcing steel bar Mesh Welding Machine Applications:



Reinforcing panel mesh has been widely used in the construction industry, in addition to the production of precast reinforced concrete components, more is used in the cast-in-place concrete structural members: construction: multi-storey and high-rise industrial and civil housing construction (foundation, floor, floor, roof, wall, etc.);Transportation: concrete pavement of expressway, soft base section, bridge deck pavement, anti-crack of bridge pier surface, concrete ground of toll plaza, railway platform, station square and cargo concrete ground, concrete ground of airport runway, freight yard and square, tunnel lining, wharf and port, etc.;Municipal construction: overhead overpass surface pavement, square concrete ground, concrete pipe, fence, slope protection, etc.Water conservancy and electric power coal: water conservancy facilities, electric dam foundation, protective net, etc.;Others: flood control facilities, slope reinforcement, collapse protection, breeding industry, animal husbandry, etc.

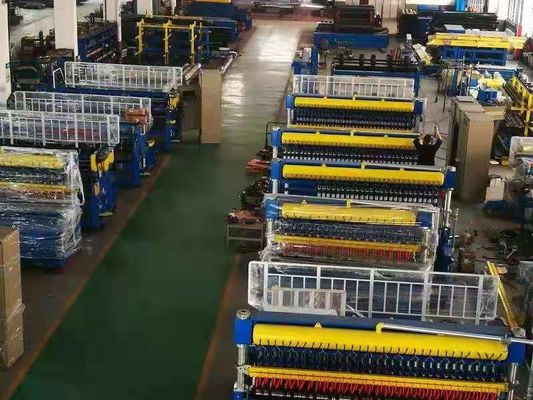

40 Times Steel Bar 3300mm Reinforcing Mesh Welding Machine 0
