Touch Screen CNC 415V 12m Reinforced Mesh Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500A
Minimum Order Quantity One set
Packaging Details The rebar welded mesh production line is nude packing. Need 40 feet container to lad.
Delivery Time 30 working days after receive the advance payment or L/C
Payment Terms L/C, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Reinforcing Mesh Welding Wire Diameter 5-12mm
Voltage 380V/220V/415V/440V Warranty 2 Years
Usage Concrete Galvanized Steel Rebar Reinforced Wire Mesh Welding Machine Welding Speed 40--65 Times Per Min
Rated Capacity 150kva*12pcs Mesh Width Max. 3m
Mesh Length Max. 12m Control System PLC Control
Certification CE Condition New
High Light

12m Reinforced Mesh Machine


415V Reinforced Mesh Machine


3m wire mesh fencing machine

Leave a Message
Product Description

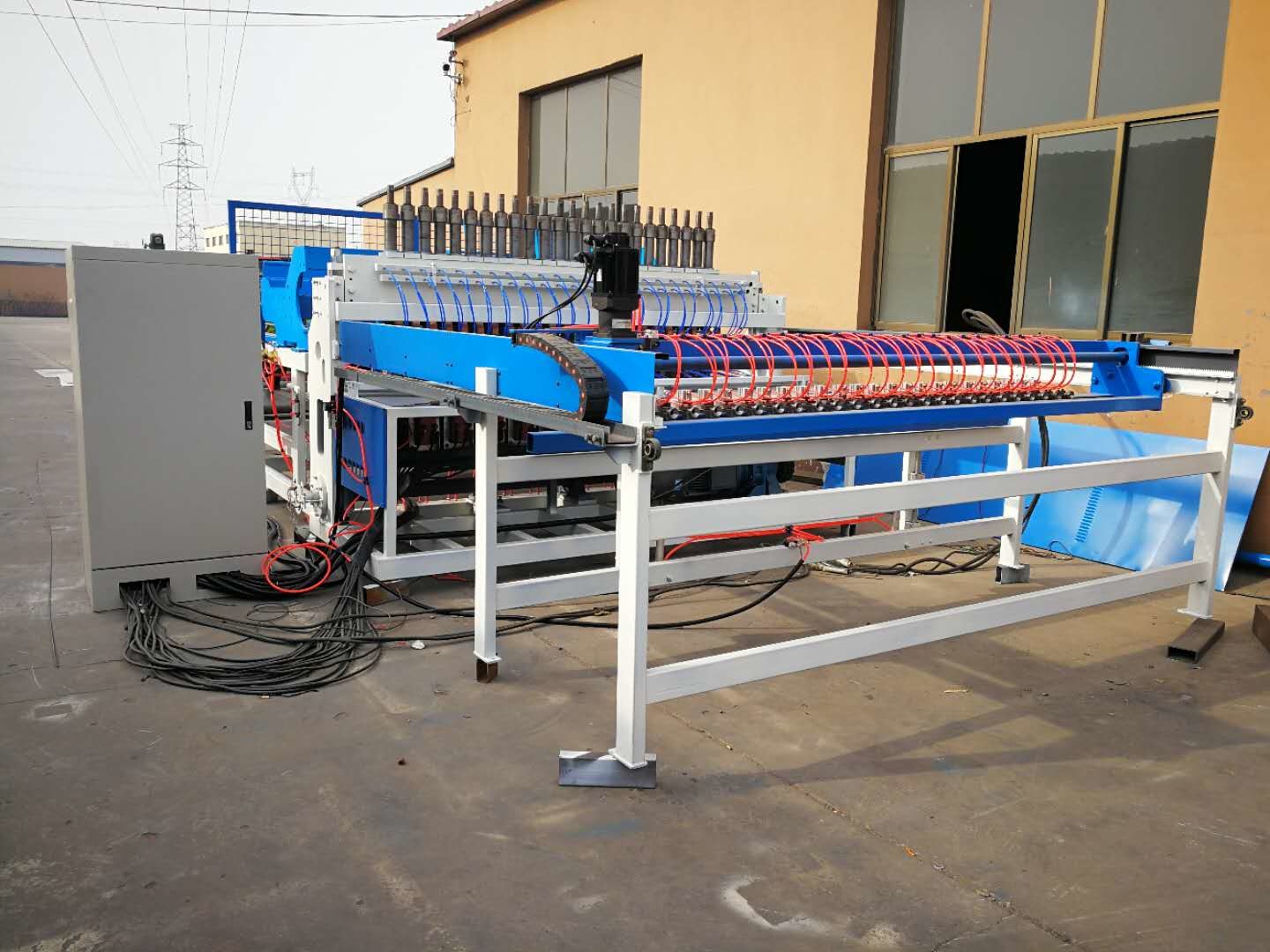

CNC Mesh Length 12m Mesh Width 2500mm Rebar Welded Mesh Production Line



Rebar Welded Mesh Production Line Introduction:


The rebar welded mesh production line is our latest product to make rebar welded mesh, also called reinforcement steel bar mesh. The rebar welded mesh production line is working by resistance welding working principle to achieve. And the rebar welded mesh production line has automatic falling mesh device. By doing so. Save labor cost and increase production capacity. We have exported rebar welded mesh production line to Russia, Vietnam, Saudi Arabia, South African, Greece, Algeria. Clients are very satisfied with our rebar welded mesh production line.


Reinforcing Panel Mesh Welding Machine Features:


1. The control system of the rebar welded mesh production line adopts synchronous CNC technology, Mitsubishi or Panasonic PLC program and HMI. The machine operation is more intelligent and reasonable.

2. The control cabinet adopt touch screen and keyboard, you can change welding time and weft wire hole mesh size through touch screen. And has language in English.
3. The weft wires are fed from the hopper device automatically and is controlled by step motor.The stepper motor drives the disk-type device to drop wires automatically. The weft wire store device has more capacity can load max 1.5 tons rebar.

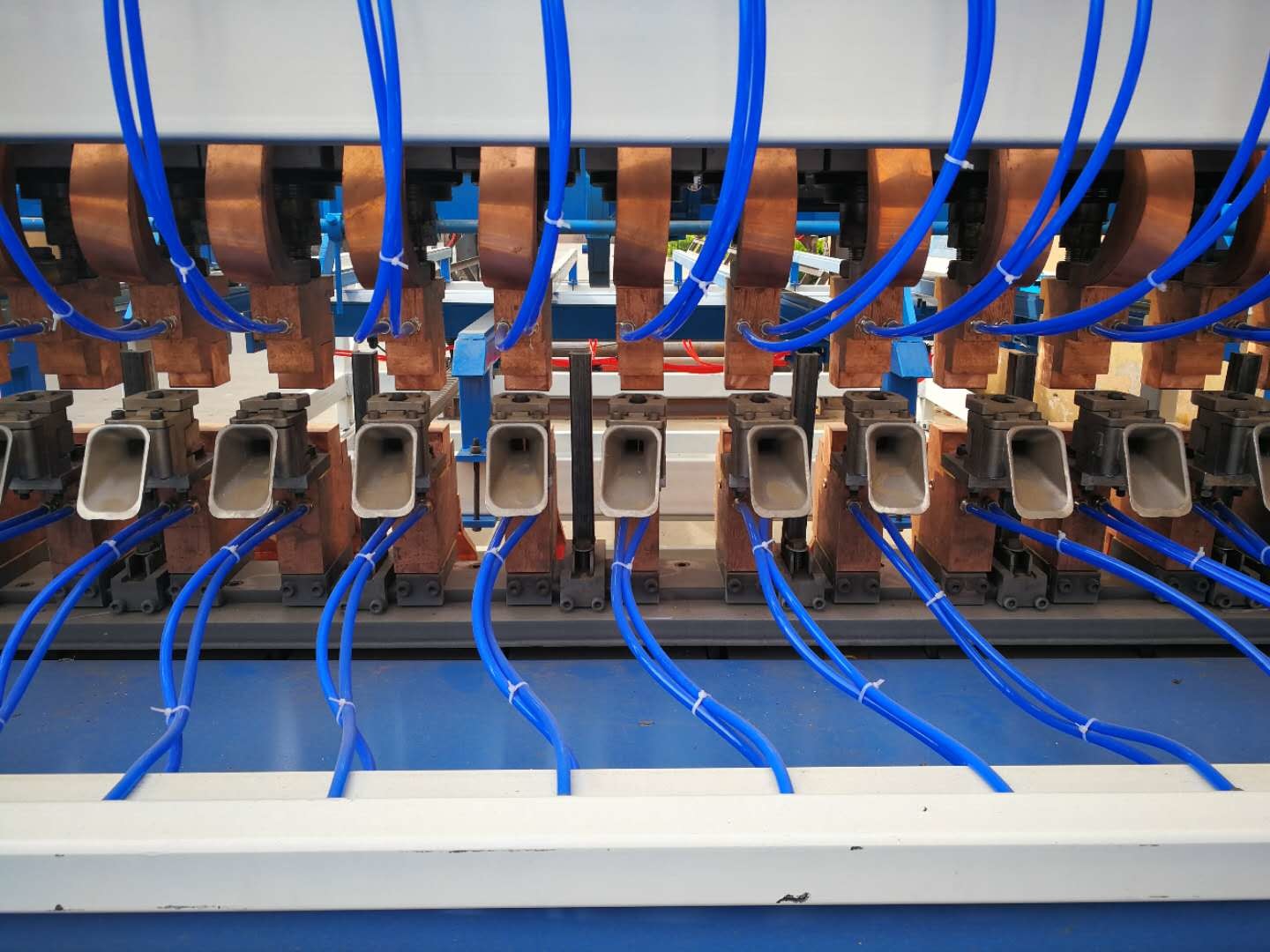

4. The rebar welded mesh production line equips with 13 pieces of typical and efficient water-cooling welding transformers, The capacity of welding transformer is 160KVA*13PCS (26 pcs of welding electrodes) ——every two welding electrodes need a water cooling welding transformer. The water-cooling welding transformer with epoxy resin are adopted, which is smaller in size and higher welding capacity in safety and reliability than traditional transformers.

5. Low-voltage electrical appliances adopt Schneider brand, well-known brands to ensure the efficient and stable operation of the machine.

6. When there is malfunction on the rebar welded mesh production line. The PLC will alarm, which is convenient to adjust the machine.

7. The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.

8. Automatic falling mesh device and mesh conveyor is adopted, so it save much labor to move the mesh panels.


Rebar Welded Mesh Production Line Technical Parameters:


Model DX-GWC-2500A DX-GWC-3000A DX-GWC-3300A
Width of mesh 2500mm 3000mm 3300mm
Line wire space 100-300mm(adjustable) 100-300mm(adjustable) 100-300mm(adjustable)
Cross wire space 100-300mm(adjustable) 100-300mm(adjustable) 100-300mm(adjustable)
Wire diameter 5-12mm 5-12mm 5-12mm
Welding electrodes 26PCS 30PCS 32PCS
Welding transformer 125KVA*13PCS 125KVA*15PCS 125KVA*16PCS
Welding press type Mechanical  Mechanical  Mechanical
Industrial voltage 220V/380V/415V/440V 220V/380V/415V/440V 220V/380V/415V/440V
Welding way Thyristor synchronous control Thyristor synchronous control Thyristor synchtonous control
Line wire type Pre-cut Pre-cut Pre-cut
Cross wire type pre-cut Pre-cut Pre-cut
Welding speed 40-65 times per min 40-65 times per min 40-65 times per min
Overall dimension 40m*4.2m*2.3m 40m*4.7m*2.3m 40m*5.2m*2.3m
Total weight 11T 13T 15T
Labor required 2 workers 2 workers 2 workers
Falling mesh way Automatic Automatic Automatic


Rebar Welded Mesh Production Line Applications:


Rebar welded mesh has been widely used in the construction industry, in addition to the production of precast reinforced concrete components, more is used in the cast-in-place concrete structural members: construction: multi-storey and high-rise industrial and civil housing construction (foundation, floor, floor, roof, wall, etc.);Transportation: concrete pavement of expressway, soft base section, bridge deck pavement, anti-crack of bridge pier surface, concrete ground of toll plaza, railway platform, station square and cargo concrete ground, concrete ground of airport runway, freight yard and square, tunnel lining, wharf and port, etc.;Municipal construction: overhead overpass surface pavement, square concrete ground, concrete pipe, fence, slope protection, etc.Water conservancy and electric power coal: water conservancy facilities, electric dam foundation, protective net, etc.;Others: flood control facilities, slope reinforcement, collapse protection, breeding industry, animal husbandry.
