40 Times 3d Metal 50mm Wire Mesh Fencing Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-3000B |
| Minimum Order Quantity | One set |
| Packaging Details | The 3d Metal Wire Mesh Fence Panel Welding Machine is nude packing. Need one 40 feet container to load. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Welding Machine | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Warranty | 1 Year | Wire Diameter | 3-6mm |
| Voltage | 220V/380V/415V/440V | Welding Speed | 40-60 Times/minute |
| Color | As Requirement | Usage | Product Fence For Protect Highway And Railway |
| Mesh Width | Max 3000mm | Rated Duty Cycle | Adjusted By Transformer |
| Control System | PLC+Touch Screen | Cross Wire Space | 50-200mm |
| High Light | 50mm Wire Mesh Fencing Machine,40 Times Wire Mesh Fencing Machine,50mm weld mesh making machine |
||
Product Description
Mesh Size 50*200mm Stable Function 3d Metal Wire Mesh Fence Panel Welding Machine
3d Metal Wire Mesh Fence Panel Welding Machine Introduction:
We can supply different types of fence panel machine. Below three models are the most popular.
DX-GWC-2500B, this machine is common type, the bending is automatical. This machine adopts many famous brand electric parts, the main motor connects with main aixs directly, the mesh pulling is controlled by Panasonic servo motor.
DX-GWC-3000B, it is specially designed to make the bending automatic. The bending machine is connected to the welding machine. After finish welding, the mesh pulling car can send the fence mesh to bending part automatically, then the bending machine can bend after each pulling.
DX-GWC-3200B, it is specially designed to make anti-climb fence (358 fence). Each welding electrode is controlled by spring, the pressure can be totally same. So the welding points are even, the finished mesh is flattened. The bending is automatic.
You can send your requirement to us, we can design the machine as you wish!
3d Metal Wire Mesh Fence Panel Welding Machine Technical Parameters:
| Model | DX-GWC-2500B | DX-GWC-3000B | DX-GWC-3200B |
| Wire diameter | 3-6mm | ||
| Line wire space | 50-300mm | 50-300mm | 50-300mm |
| Cross wire space | Min.50mm | Min.50mm | Min.50mm |
| Width of mesh | Max.2500m | Max.3000m | Max.3200mm |
| Length of mesh | Max.3000m | Max.3000m | Max.3000mm |
| Welding electrodes | 48pcs | 61pcs | 44pcs |
| Welding transformer | 150kva*8pcs | 160kva*10pcs | 150kva*11pcs |
| Welding speed | Max.70 times/min | Max.60 times/min | Max.50 times/min |
| Line wire feeding | Pre-straightened&pre-cut | ||
| Cross wire feeding | Pre-straightened&pre-cut | ||
| Weight | 11T | 12T | 13.5T |
| Machine size | 4.9*3.4*1.6m | 12*3.7*2.5m | 5.4*3.7*2.3m |
| Bending way | Automatic | Automatic | Automatic |
3d Metal Wire Mesh Fence Panel Welding Machine Applications:
3d Metal Fence mesh is widely used. Isolation and protection of parks, lawns, zoos, lakes, roads, and residential areas normally used in municipal construction.The protection and decoration of hotels, hotels, supermarkets and entertainment places. Municipal guardrail is also suitable for the safety protection, decoration and beautification of municipal engineering, road, factory, development zone, garden square and other places.
Mainly white and green, of course, there are other colors such as blue, yellow, colorful color to the urban construction of beautiful colors, give people a beautiful visual enjoyment.
3d metal Wire Mesh Product Features:
The product shape is beautiful, and firm, good anticorrosion, beautification of the city is the first choice of environmental engineering products.
Municipal guardrail is suitable for mass standard production, fast installation, less labor, beautiful structure, and good coordination with the environment.
3d Metal Wire Mesh Fence Panel Welding Machine Packing:

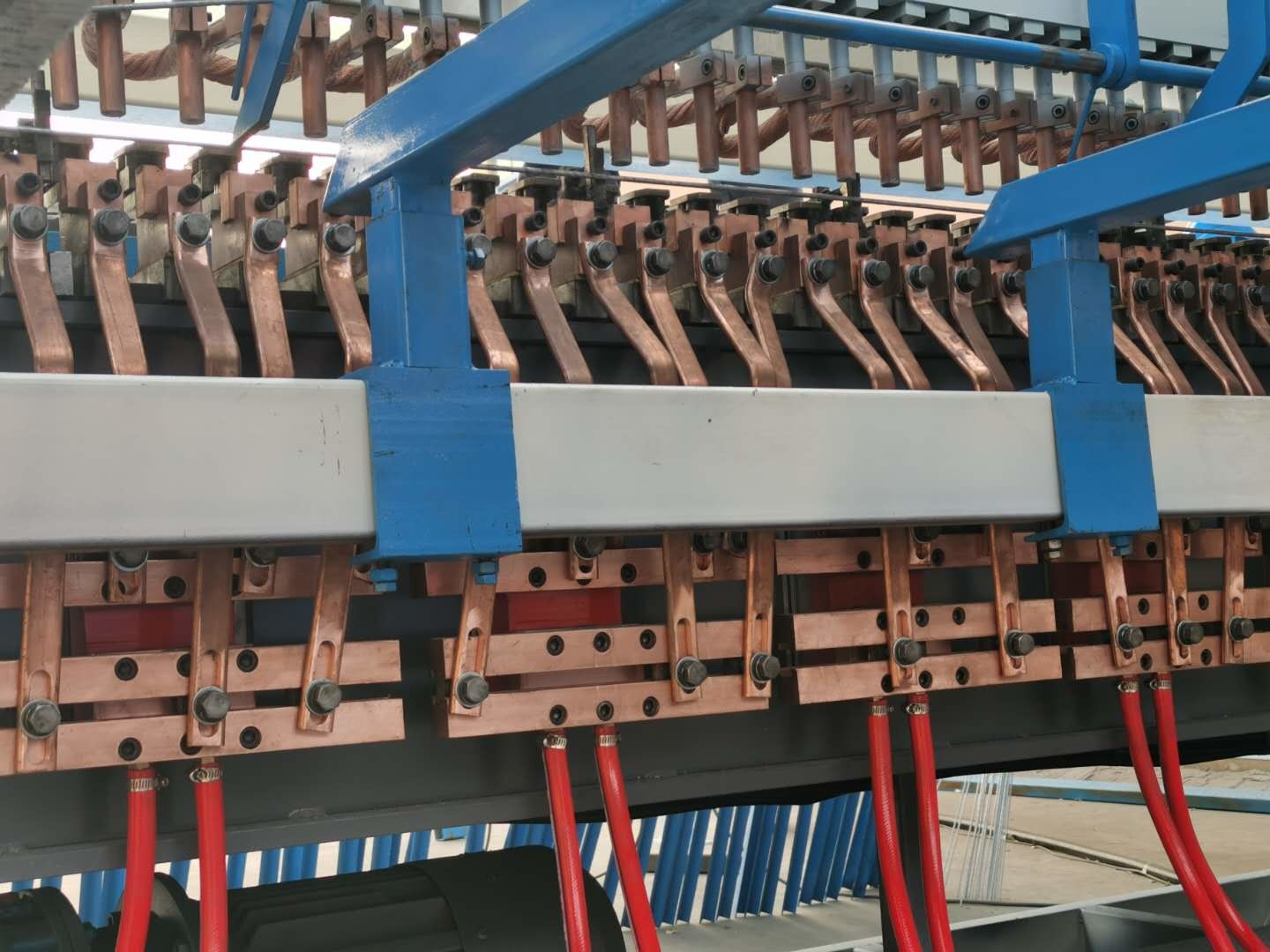

3d Metal Wire Mesh Fence Panel Welding Machine Photos:
