Pre Cut Expressway 200mm Fence Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-2500B |
| Minimum Order Quantity | One set |
| Packaging Details | The Welded Fence Mesh Panel Welding Equipment is nude packing. Need one 40 feet container to load. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Welding Machine | Wire Diameter | 3-6mm |
|---|---|---|---|
| Welding Speed | 40-60 Times/minute | Mesh Width | Max 2500mm |
| Rated Duty Cycle | Adjusted By Transformer | Control System | PLC+Touch Screen |
| Cross Wire Space | 50-200mm | Length Of Mesh | Max 3000mm |
| Line Wire Type | Pre-cut | Cross Wire Type | Pre-cut |
| High Light | 200mm Fence Mesh Welding Machine,60 times Fence Mesh Welding Machine,200mm mesh wire machine |
||
Product Description
Expressway Fence Mesh Size 50*200mm Welded Fence Mesh Panel Welding Equipment
Welded Fence Mesh Panel Welding Equipment Introduction:
The welded fence mesh panel welding equipment is used to make 3d fence mesh panel. The equipment adopt PLC and touch screen. It is very easy and convenient to operate. The mesh size is adjustable according to your requirement. The line wire and cross wire feeding automatically. And bending machine is working automatic. This is full-automatic type equipment to make fence mesh panel. Only need one worker to operate. The finished product is widely used in expressway,railway,airport,park fence protection.
Welded Fence Mesh Panel Welding Equipment Features:
1. Upper copper wire connect with the upper electrodes and lower electrodes base directly. Lower electrodes size 20*20*20mm,each of 6 sides can be used.
2. The welded fence mesh panel welding equipment use Panasonic PLC. Make sure the machine is working stable and smooth.
3. The welded fence mesh panel welding equipment use cast water cooling system welding transformer.
4. Famous brand servo motor (Panasonic brand) for pulling mesh.
5. The hook of the mesh pulling car controlled by air cylinder, up and down for recycle pulling mesh.
6. The line wire and cross wire both pre-cut by wire straightening cutting machine. The line wire is feeding by the hopper device to drop the line wire into the mould automatically. The cross wire feeding by stepping motor controlled. And the mesh panel will be bending automatically when the mesh panel is send to the under the bending machine. After bending the pulling mesh car will pull out the fence mesh automatically and drop the fence mesh automatically.
7. The bending machine can bend different mesh size position according to your requirement. Because the bending machine is controlled by the control cabinet. Very easy to operate and intelligent.
8. Suitable material: low carbon wire, galvanized wire.
9. The pressure is 100T of the mesh bending machine. So bend wire diameter 6mm is Ok. And the bending machine is bending fence mesh automatically.
10. The welded fence mesh panel welding equipment only need one person to operate.
11. The biggest advantage is that the welded fence mesh panel welding equipment is full-automatic. Line wire feeding automatic,cross wire feeding automatic, automatic welding, automatic pulling mesh, automatic bending, automatic pulling out fence mesh after bending. Finally. automatic drop mesh.
Welded Fence Mesh Panel Welding Equipment Technical Parameters:
| Model | DX-GWC-2000B | DX-GWC-2500B | DX-GWC-3000B |
| Wire diameter | 3.0-6.0mm | 3.0-6.0mm | 3.0-6.0mm |
| Width of mesh | 2000mm | 2500mm | 3000mm |
| Mesh size | 50-300mm(adjustable) | 50-300mm(adjustable) | 50-300mm(adjustable) |
| Length of mesh | Max 3000mm | Max 3000mm | Max 3000mm |
| Welding spots | 40PCS | 50PCS | 60PCS |
| Welding transformer | 160KVA*5pcs | 160KVA*8pcs | 160KVA*10pcs |
| Welding speed | 50-75 times per min | 50-75 times per min | 50-75 times per min |
| Control system | Panasonic PLC | Panasonic PLC | Panasonic PLC |
| Production capacity | 60pcs per hour | 60 pcs per hour | 60 pcs per hour |
| Motor power | 5.5KW | 7.5KW | 7.5KW |
| Weight | 9.5T | 10.5T | 11T |
| Dimension | 14*2.8*1.8m | 14*3.2*1.8m | 14*4.2*1.8m |
We can design the machine according to your wire diameter,mesh hole size and mesh width.
Welded Fence Mesh Panel Welding Equipment Applications:
The welded fence mesh panel is widely used in highway fence, railway fence, bridge fence , temporary frame fence, peach fence, airport fence, garden fence, slope fence, Meige fence, prison fence, factory fence, warehouse fence, municipal fence, iron art fence, stadium fence.
Welded Fence Mesh Panel Welding Equipment Packing:

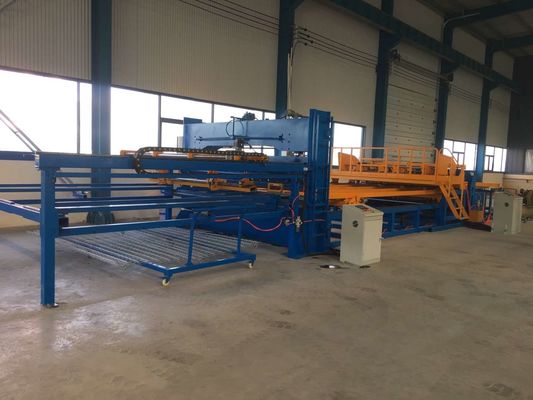

Welded Fence Mesh Panel Welding Equipment Photos:
