Electrodes 14PCS 3D 3000mm Wire Fence Making Machine
|Place of Origin||China|
|Minimum Order Quantity||One set|
|Packaging Details||The 3D Fence Mesh Sheet Welding Equipment is nude packing,Put into 40 feet container.|
|Delivery Time||30 working days|
|Payment Terms||L/C, T/T|
|Supply Ability||10 sets per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Fence Mesh Welding Machine||Warranty||2 Years|
|Voltage||220V/380V/415V/440V||Welding Speed||30 Times/min|
|Color||Blue Or Customized||Mesh Width||Max 3000mm|
|Control System||PLC+Touch Screen||Current||200A|
|Mesh Length||Max 3000mm||Power Consumption||10KW/H|
3000mm Wire Fence Making Machine,
3D Wire Fence Making Machine,
14PCS fence panel machine
Welding Electrodes 14PCS Schneider Switch 3D Fence Mesh Sheet Welding Equipment
3D Fence Mesh Sheet Welding Equipment Introduction:
The 3D Fence Mesh Sheet Welding Equipment is called double line wire fence welding machine, also called double wire fence panel production line, is specially used to make double wire fence.This 3D Fence Mesh Sheet Welding Equipment adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system.Touch screen and keyboard input panel forms make operation more intellectualized and reasonable. The biggest advantage is that more than 30 kinds of different mesh size can be welded on the same panel. New and high efficiency of welding transformer expands welding wire diameter scope. The machine can weld double wire diameter 656mm and 868mm.Easy handling and high flexibility and high working efficiency achieve a perfect welding machine. The 3D Fence Mesh Sheet Welding Equipment is best choice for you to make fence mesh panel.
3D Fence Mesh Sheet Welding Equipment Features:
1. We are best professional manufacturer of 3D Fence Mesh Sheet Welding Equipment in China.
2. This is our latest design machine to make 3d double wire fence mesh panel. We are the unique factory to make such machine in China.
3. The Fence Mesh Panel Welding Machine adopt Mitsubishi PLC, Mitsubishi servo drivers, Schneider relays etc. Delta frequency converter.Weinview touch screen.
4. There are two storage hopper, One is for the line wire storage hopper, another is for cross wire storage hopper. Firstly. Put the line wire into the storage hopper. The storage hopper drop the line wire into the die automatically. Then put the cross wire into the storgae hopper. The cross wire storage hopper drop the wire into the dies automatically. Finally. the line wire storage hopper drop the line wire to the dies automatically again. The cycle chain will send the line wire and cross wire to the welding machine. The welding machine start to weld one by one. The pulling mesh car to pull out the fence mesh panel automatically.
3D Fence Mesh Sheet Welding Equipment Technical Parameters:
|Line wire space||200mm or as your required||200mm or as your required||200mm or as your required|
|Cross wire space||50mm,100mm,150mm||50mm,100mm,150mm||50mm,100mm,150mm|
|Welding speed||30 times per min||30 times per min||30 times per min|
|Line wire feeding||pre-cut||pre-cut||pre-cut|
|Cross wire feeding||pre-cut||pre-cut||pre-cut|
3D Fence Mesh Sheet Welding Equipment Applications:
It is mainly used in the enclosure of the park zoo, the enclosure of the campus field and the road traffic isolation
3D Fence Mesh Sheet Welding Equipment Packing:

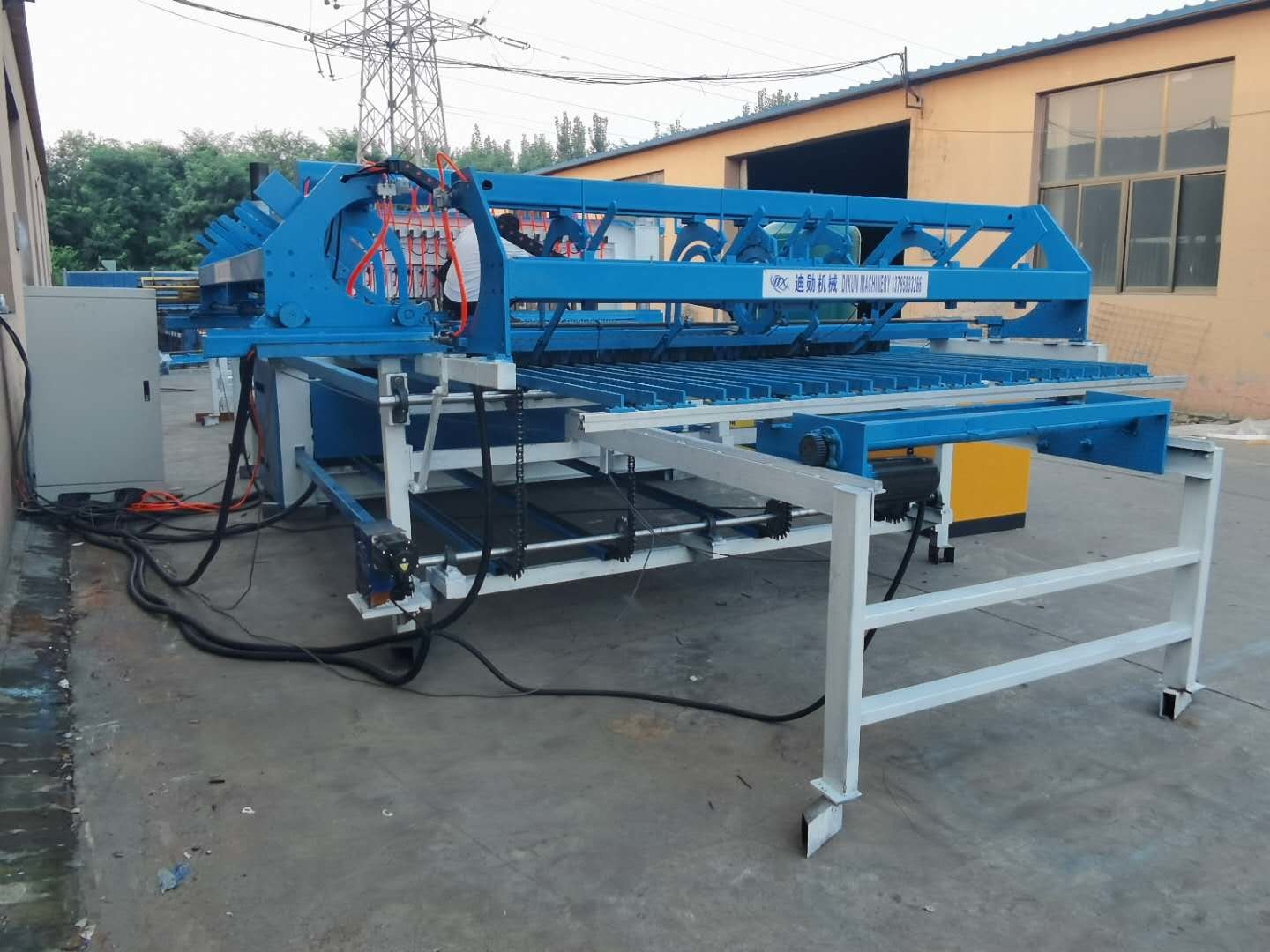

3D Fence Mesh Sheet Welding Equipment Photos:
