CE GWC 3000B 12mm Reinforcing Mesh Welding Machine
|Place of Origin||China|
|Minimum Order Quantity||One set|
|Packaging Details||The Concrete Reinforced Rebar Mesh Production Line is nude packing. Need 2*40 feet containers.|
|Delivery Time||30 working days|
|Payment Terms||L/C, T/T, Western Union|
|Supply Ability||3 sets per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Reinforcing Mesh Welding Machine||After-sales Service Provided||Engineers Available To Service Machinery Overseas|
|Mesh Width||Max. 3m||Mesh Length||Max. 12m|
|Control System||PLC Control||Labor Cost||2-3 Persons|
|Welding Power||Air Cylinder||Falling Mesh System||Automatic|
|Line Wire Type||Pre-cut Feeding By Servo Motor||Cross Wire Type||Pre-cut Automatic Feeding|
12mm Reinforcing Mesh Welding Machine,
3000B Reinforcing Mesh Welding Machine,
CE reinforced mesh machine
SMC Air Cylinder Welding Speed Fast Concrete Reinforced Rebar Mesh Production Line
Concrete Reinforced Rebar Mesh Production Line Introduction:
The concrete reinforced rebar mesh production line is a kind of automatic wire mesh welding equipment.
Line wire pre-cut automatic feeding, cross wire storage automatic feeding, automatic mesh output,stacking alignment, packaging.
Compared with the common wire mesh welding equipment, the automatic wire mesh forming production line uses automatic feeding instead of manual feeding, automatically turning the mesh, catching the mesh, packing instead of manual lifting, placing and tying, which saves the labor cost and improves the production efficiency.
Concrete Reinforced Rebar Mesh Production Line Features:
1. The concrete reinforced rebar mesh production line adopts SMC air cylinder. Energy saving double strength cylinder, compared with the ordinary model, the output force increased by 20% under the working condition, gas consumption reduced by 20%, the cylinder itself has the guide sleeve and the rod does not turn structure, greatly improving the service life.
2. High productivity. The concrete reinforced rebar mesh production line can make 40 tons at 12 hours.
3. The Reinforced Steel Bar Mesh Welding Production Line is controlled by human-machine interface +PLC programming controller, with high degree of automation.
4. Welding hot rolled ribbed wire, cold rolled ribbed wire, hot rolled round bar, cold rolled round bar and other materials, wide adaptability;
5. According to the user's capacity, the welding can be done in one time or in several times, with great flexibility.
6. The concrete reinforced rebar mesh production line is designed as a separable structure, which is convenient for specification adjustment and maintenance.
7. The transformer, silicon controlled upper and lower electrodes and other welding systems adopt forced water cooling, and are equipped with flow protection device. The unit can work continuously and reliably.
8. Uniform welding pressure to ensure the quality of all solder joints.
9. Unique lifting mechanism can lift off the electrode when the mesh is dragged to ensure the service life of the electrode and reduce the operation cost;
10. Transverse bar blanking device adopts stepping motor to feed automatically, which can reduce labor intensity and improve efficiency.
11. The cross wire is equipped with magnetic dumping mechanism, which makes the dropping speed fast and the production efficiency high.
12. The electrode is equipped with a placement device to ensure the transverse reinforcement dropping is reliable and accurate;
Unique design ensures easy, flexible and quick replacement of rebar and stencil specifications.
13. The concrete reinforced rebar mesh production line need power transformer at least 300KVA to supply working.
14. The concrete reinforced rebar mesh production line need water cooling system and air pump, drying machine and air tank.
Concrete Reinforced Rebar Mesh Production Line Technical Parameters:
|Air pump pressure||0.6-0.8MPa||0.6-0.8MPa||0.6-0.8MPa|
|Water cooling water pressure||0.3MPa||0.3MPa||0.3MPa|
|Welding mesh width||2000mm||2500mm||3000mm|
|Line wire space||100-300mm||100-300mm||100-300mm|
|Cross wire space||100-300mm||100-300mm||100-300mm|
|Line wire type||Pre-cut feeding by car||Pre-cut feeding by car||Pre-cut feeding by car|
|Cross wire type||Pre-cut automatic feed||Pre-cut automatic feed||Pre-cut automatic feed|
|Welding speed||60-70 times per min||60-70 times per min||60-70 times per min|
|Falling mesh system||Automatic||Automatic||Automatic|
|Capacity||35-40 tons in 12 hours||35-40 tons in 12 hours||35-40 tons in 12 hours|
Concrete Reinforced Rebar Mesh Production Line Applications:
Steel bar mesh has many uses, bridge building, highway construction, engineering construction, campus construction and hospital construction.
Concrete Reinforced Rebar Mesh Production Line Packing:

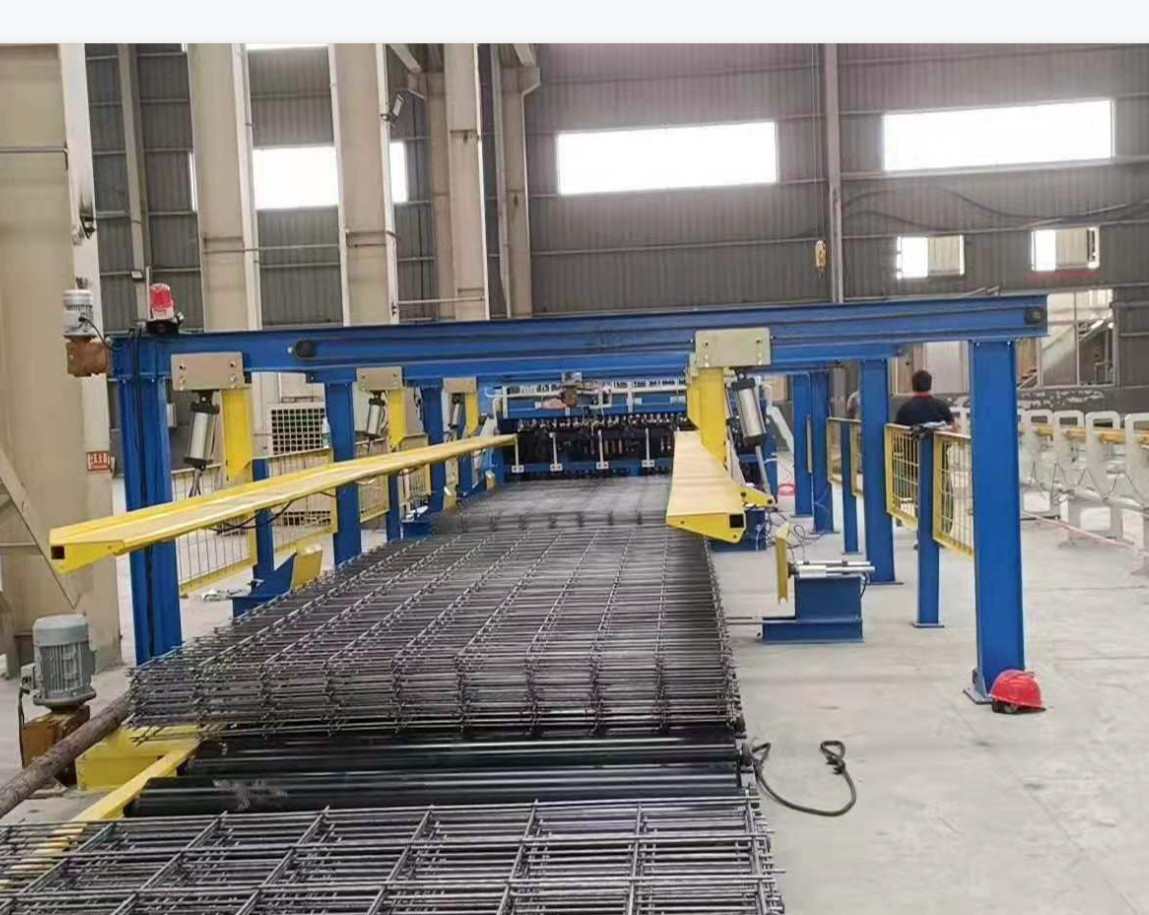

Concrete Reinforced Rebar Mesh Production Line Photos:
