7.5KW 415V Fully Automatic Welded Wire Mesh Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500D
Minimum Order Quantity One set
Packaging Details The Wire Mesh Welding Machine is nude packing. Need one 40 feet container to load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wire Mesh Welding Machine Wire Diameter 3-6mm
Warranty 2 Years Color Can Be Customized
Voltage 220V/380V/415V/440V Welding Speed 60-100 Times/minute
Power 7.5kw Cross Wire Space 50mm-300mm
Dimensions 14mX3.2mX2.3m Finished Product Mesh Panel And Roll Mesh
High Light

415V Wire Mesh Welding Machines

,

7.5KW Wire Mesh Welding Machines

,

80m welded wire mesh machine

Leave a Message
Product Description

Mesh Panel And Roll Mesh Servo Motor Pulling Mesh Wire Mesh Welding Machine





Wire Mesh Welding Machine Introduction:



Automatic Wire Mesh Welding Machine, is also called roll mesh welding machine, CNC construction mesh welding machine, use to make road mesh, reinforcing mesh, construction mesh etc. The wire mesh welding machine adopts PLC control system with touch screen input, which makes the operation more intelligent and convenient. The wire mesh welding machine continuously welds wire mesh sheets and wire mesh rolls and cuts the mesh to a fixed length.

Wire Mesh Welding Machine Features:



1. The line wire is coil wire feeding automatic. The cross wires should be pre-straightened & pre-cut, then fed from hopper device automatically. The hopper device is controlled by step motor, has high capacity. Welding electrodes are made of pure copper (upper Φ20*120 mm, lower 20*20*20 mm), durable.
2. Main motor(5.5 kw) Helical gear reducer connect the main axis directly, big transmission torque. Cast water-cooling transformers, high efficiency. Welding degree is adjusted by PLC.
3. Panasonic PLC (Japan)  pneumatic parts, machine working more stable. Panasonic (Japan) servo motor planetary reducer for pulling mesh, more precise. Cable carrier is Igus brand, imported from Germany, the best one all over the world, not hung down.

4. The line wire from coil wire feeding automatic.The line wire straighten device make the line wire straight. The line wire reach the welding machine. The cross wire is pre-cut by wire straightening cutting machine. The cross wire put into the hopper device. Which is controlled by the stepping motor.

5. The wire mesh welding machine is equipped with automatic mesh cutting machine and automatic rolling mesh machine. So the wire mesh welding machine can produce both mesh panel and roll mesh. The length of mesh panel max can up to 6m and the length of roll mesh max 80m one roll. The automatic rolling mesh machine is variable-frequency. The roll roll speed is adjustable.



Wire Mesh Welding Machine Technical Parameters:



Model DX-GWC-2000D DX-GWC-2500D DX-GWC-3000D
Wire diameter 3-6mm 3-6mm 3-6mm
Mesh width 2000mm 2500mm 3000mm
Mesh size 50*50mm-300*300mm 50*50mm-300*300mm 50*50mm-300*300mm
Mesh length 6m in panel 80m in roll mesh 6m in panel 80m in roll mesh 6m in panel 80m in roll mesh
Welding spots 40PCS 48PCS 60PCS
Transformer  160KVA*5PCS 160KVA*6PCS 160KVA*10PCS
Motor power 4.0KW 5.5KW 7.5KW
Capacity 3 tons in 10 hours 3 tons in 10 hours 3 tons in 10 hours
Welding speed 60-100 times per min 60-100 times per min 60-100 times per min
Weight 4500KGS 4800KGS 5500KGS
Dimension 14*2.7*2.3m 14*3.2*2.3m 14*3.8*2.3m
Labor cost Two workers Two workers Two workers
Control system By PLC and touch screen By PLC and touch screen By PLC and touch screen
Final product in mesh panel and roll mesh in mesh panel and roll mesh in mesh panel and roll mesh



Wire Mesh Welding Machine Applications:



Automatic wire mesh welding machine makes weld rolled mesh or panel mesh for construction, building, reinforcing and road.



Wire Mesh Welding Machine Packing:



7.5KW 415V Fully Automatic Welded Wire Mesh Machine 0

7.5KW 415V Fully Automatic Welded Wire Mesh Machine 1

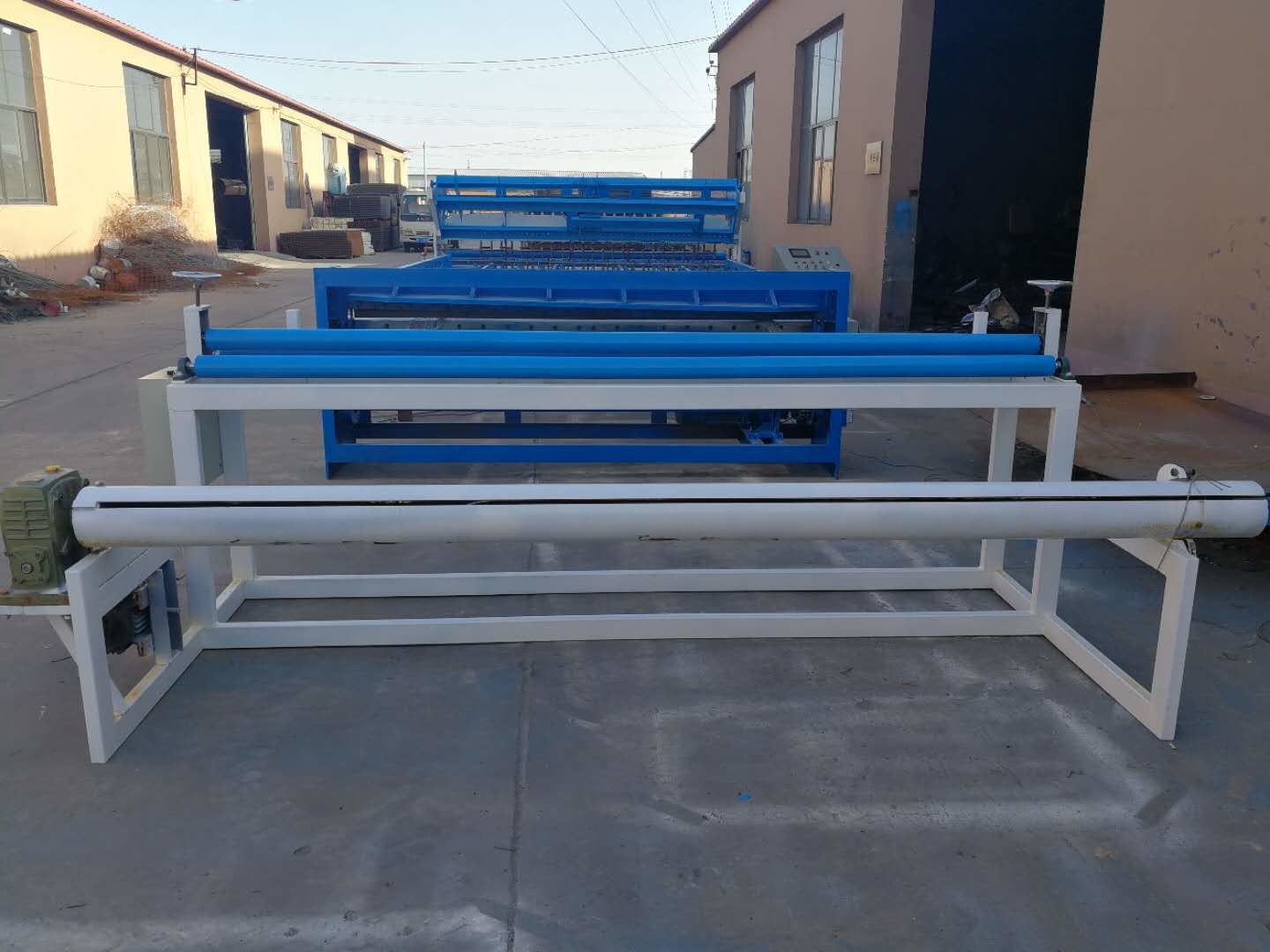

Wire Mesh Welding Machine Photos:



7.5KW 415V Fully Automatic Welded Wire Mesh Machine 2

7.5KW 415V Fully Automatic Welded Wire Mesh Machine 3

7.5KW 415V Fully Automatic Welded Wire Mesh Machine 4

7.5KW 415V Fully Automatic Welded Wire Mesh Machine 5
