CE 75 Times Per Min 6mm Fence Mesh Welding Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500D+
Minimum Order Quantity One set
Packaging Details The Wire Mesh Welding Machine is nude packing. Need one 20 feet container to be shipped.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Wire Mesh Welding Machine Line Wire Type Pre-straighten And Pre-cut Put Into Hopper Device
Cross Wire Type Pre-straighten And Pre-cut Automatic Feed By Stepping Motor Width Of Mesh 2500mm
Mesh Length Max 3000mm Line Wire Space 50-300mm
Cross Wire Space 50-300mm Motor 5.5KW
Welding Speed 45-75 Times Per Min Weight 4.9T
Dimension 9*3.2*1.7m Color As Per Required
High Light

6mm Fence Mesh Welding Machine


75 Times Fence Mesh Welding Machine


4.9T wire mesh fencing machine

Leave a Message
Product Description

Line Wire Hopper Device Feed Wire Diameter 3-6mm Wire Mesh Welding Machine



Wire Mesh Welding Machine Introduction:


The wire mesh welding machine is new designed machine to make wire mesh panel. The wire mesh welding machine biggest advantage is less labor cost. Only need one person to operate. The line wire and cross wire both pre-straighten and pre-cut by wire straightening cutting machine. The line wire is put into hopper device. The hopper device drop the line wires into dies automatically. The line wire push car push the line wires to the welding machine. The wire mesh welding machine start to work. The cross wire is feed automatically by stepping motor. Wire mesh welding machine adopts CNC synchronous control technology, welding time and divided control welding time are composed of PLC digital programming system, input panel for touch screen or keyboard two kinds, operation is more intelligent, reasonable.

The wire mesh welding machine once pressed, divided welding, the biggest advantage of the control is: can appear in the same mesh between line wire and cross wire more than 30 different sizes of mesh. A new type of high efficiency water-cooled welding transformer is used to expand the welding wire diameter.


Wire Mesh Welding Machine Features:


1. Each set of transformers are controlled by a separate microcomputer, pressure multiple welding, the biggest advantage of the control is: can appear on the same mesh between latitude and latitude more than 30 different size of holes.
2. Welding electrode head is made of high-quality chrome pick copper material, which has a long service life and reduces production cost.
3. Feeding mode: Automatic feeding by stepping motor, reducing welding waiting time, fast feeding speed and accurate position.
4. Cross wire feeding mode: stepping motor automatic feeding weft blanking, blanking position is accurate.
5. Pulling mesh mode: Servo motor reciprocating drawing, pneumatic tightening weft wire, to ensure the precise position of drawing mesh.


Wire Mesh Welding Machine Technical Parameters:


Welding wire diameter 3.0-6.0mm Line wire type Pre-cut
Line wire space 50-300mm Cross wire type pre-cut
Cross wire space 50-300mm Welding transformer 160KVA*6PCS
Welding mesh width 2500mm Welding speed 45-75 times per min
Welding electrodes 48PCS Labor cost one person
Machine dimension 9000*3200*1800mm Machine weight  4.9T
Industrial voltage 380V,220V,415V,440V Power transformer 120KVA
Power consumption 7-9KW/H Control system PLC and touch screen


Wire Mesh Welding Machine Application:


It can be used in the production and manufacturing of coal mine net support, highway guardrail mesh, fence mesh, construction mesh, high-rise building mesh and other products.


Wire Mesh Welding Machine Packing:


CE 75 Times Per Min 6mm Fence Mesh Welding Machine 0

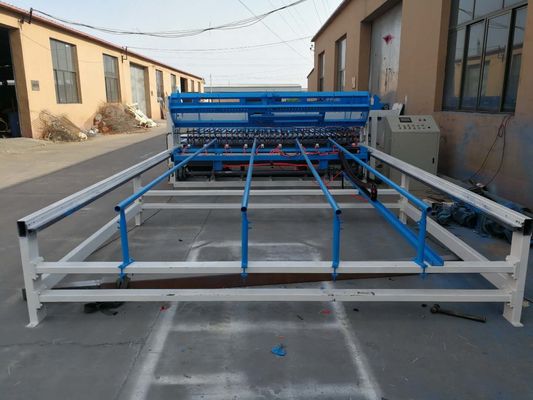

Wire Mesh Welding Machine Photos:


CE 75 Times Per Min 6mm Fence Mesh Welding Machine 1

CE 75 Times Per Min 6mm Fence Mesh Welding Machine 2

CE 75 Times Per Min 6mm Fence Mesh Welding Machine 3
