Round Bar 75times 2500mm Mesh Panel Welding Machine
|Place of Origin||China|
|Minimum Order Quantity||One set|
|Packaging Details||The Welded Wire Mesh Panel Welding Machine is nude packing. Need one 20 feet container to load.|
|Delivery Time||30 working days|
|Payment Terms||L/C, T/T|
|Supply Ability||5 sets per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Mesh Panel Welding Machine||Wire Diameter||3.0-6.0mm|
|Mesh Width||Max 2500mm||Line Wire Distance||Min 50mm|
|Cross Wire Distance||Min 12.5mm||Welding Speed||75 Times Per Min|
|Welding Electrodes||48PCS||Mesh Length||Max 7m|
|Welding Transformer||160KVA*6PCS||Pulling Mesh System||By Servo Motor Controlled|
2500mm Mesh Panel Welding Machine,
75times Mesh Panel Welding Machine,
7m fence mesh welding machine
Servo Motor Controlled 3-6mm Round Bar Welded Wire Mesh Panel Welding Machine
Welded Wire Mesh Panel Welding Machine Introduction:
The welded wire mesh panel welding machine is a simple type machine to make mesh panel. The line wire is pre-straighten and pre-cut by wire straightening cutting machine.The line wire is feed by manual.The cross wire also pre-straighten and pre-cut by wire straightening cutting machine. The cross wire is feed automatic by stepping motor controlled. The welded wire mesh panel welding machine adopts CNC synchronous control technology, welding time and welding time are composed of PLC digital programming system, the input panel is touch screen or keyboard, the operation is more intelligent and reasonable. The machine is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.
The welded wire mesh panel welding machine can one time pressing, sub welding, the biggest advantage is that the machine can produce different mesh hole size in one piece of mesh panel. New efficient water-cooled welding transformer is adopted for welding, which enlarges the range of welding wire diameter. Easy to operate, high flexibility, the output is several times of manual single spot welding machine. The welded wire mesh panel welding machine suitable material: ribbed steel bar, round bar, galvanized wire.
Welded Wire Mesh Panel Welding Machine Features:
1. Each group of transformers is controlled by a separate microcomputer, which can be welded by pressing and controlling once. The welding point is uniform, firm, more stable, faster and more intelligent.
2. This equipment adopts mechanical welding pressure, pressure point uniform, no welding.
3. The welding point of the equipment is made of high quality alloy copper, long service life, reduce the production cost.
4. The enhanced design of the transformer has a separate, can meet the long-term welding, no open welding leakage phenomenon.
5. Only one person is needed to operate the whole process to reduce labor costs.
Welded Wire Mesh Panel Welding Machine Installation, Debugging and Training:
Our company is responsible for the installation and commissioning of equipment and after-sales service, and assign technical personnel to the site for installation guidance and commissioning work, and provide on-site training for customers on the operation and maintenance of equipment.
1. Maintain and operate the equipment in strict accordance with the instructions of the hot sun welder.
2. Strictly arrange the site according to the requirements.
3. Provide power supply that meets the requirements.
4. The equipment should be used in the workshop, the production environment directly affects the service life of the equipment.
1. The warranty period is one year, and the equipment program part is maintained for life. The wearing parts and electronic parts are not covered by the warranty.
2. If the equipment fails, our company will reply within one hour and go to the customer's site for maintenance as soon as possible.
3. After the warranty, our company will provide life-long after-sales service support, and provide equipment components at a preferential price.
Welded Wire Mesh Panel Welding Machine Technical Parameters:
|Model||DX-GWC-2500D||Welding wire diameter||3.0-6.0mm|
|Welding mesh width||2500mm||Welding speed||75 times per min|
|Line wire distance||50-200mm||Cross wrie distance||12.5-200mm|
|Line wire way||Pre-straighten pre-cut||Cross wire way||Pre-straighten pre-cut|
|Welding electrodes||48PCS||Welding transformer||160KVA*6pcs|
|Machine dimension||12*3*1.8m||Main motor power||4KW|
|Control system||By PLC programmable controller||Welding way||Silicon controlled|
|Power transformer||120KVA||Upper electrodes size||20*120mm|
|Down electrodes||20*20*20mm||Copper electrodes material||red copper|
|Workshop size||15*5m||Labor cost||One or two persons|
Welded Wire Mesh Panel Welding Machine Applications:
The welded wire mesh panel welding machine is mainly used in fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.

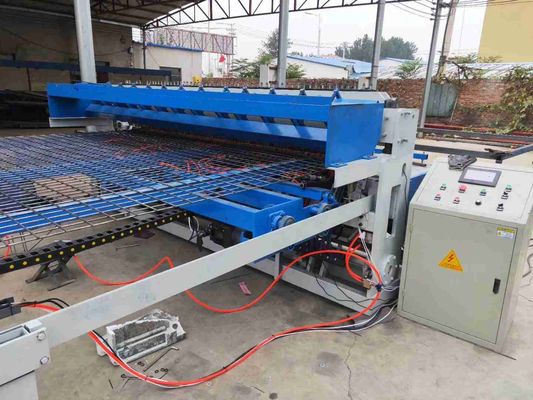

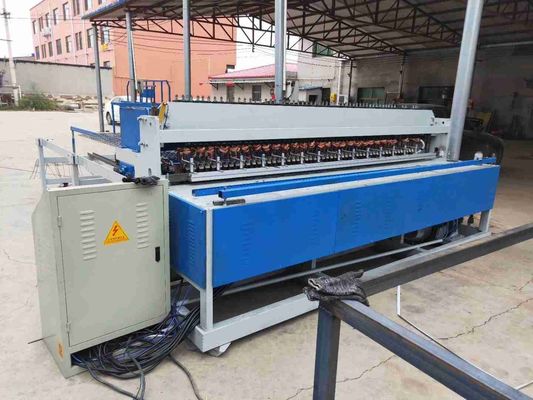

Welded Wire Mesh Panel Welding Machine Photos:
