50mm Reinforced Mesh Welding Machine

  • 50mm Reinforced Mesh Welding Machine
  • 50mm Reinforced Mesh Welding Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500D
Minimum Order Quantity One set
Packaging Details The Reinforcing Mesh Panel Welding Equipment is nude packing. Need one 40 feet container.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Mesh Panel Welding Machine Thickness Of Steel Bar 4.0-9.0mm
Machine Type Mechanical Mesh Width 1500mm,2000mm,2500mm
Line Wire Space 50-200mm Cross Wire Space 50-300mm
Machine Weight 5500KGS Machine Dimension 7500*3200*1900mm
Welding Electrode 50PCS Welding Transformer 160KVA*9PCS
Highlight

50mm Reinforced Mesh Welding Machine

,

2500mm Reinforced Mesh Welding Machine

,

75 rows wire net making machine
Leave a Message
Product Description

Mesh Size 50*50mm Used In High Building Reinforcing Mesh Panel Welding Machine





Reinforcing Mesh Panel Welding Machine Introduction:



Welding wire diameter range of the device is 4.0-9.0mm, the mesh size is 50-300mm, stepless adjustable. The maximum width of the welding wire mesh is 2500mm (also according to customer requirements).Welding main machine, an alarm device that can improve the safety level and reduce the failure rate. The greatest degree of assurance of the equipment running smoothly.



Reinforcing Mesh Panel Welding Machine Features:

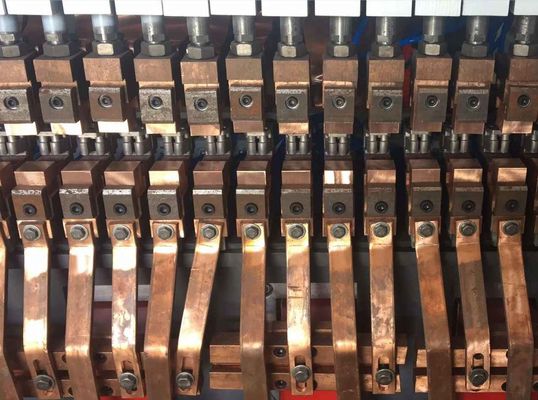

1.This reinforcing mesh panel welding machine adopt special welding process ,Efficient water cooling system and precision welding control system and high quality copper alloy electrodes with unique appearance.

2. Humanized operation interface.Easy to operate and master. Can set different mesh sizs and mesh length and languages according to your requirement.

3. The welding electricity is controlled by the separate computer. The Concrete Reinforcing Mesh Panel Welding Equipment is equipped with water cooling system for welding transformer and welding electrodes. To make sure that the Concrete Reinforcing Mesh Panel Welding Equipment can work 24 hours smoothly.

4. To adjust the distance between the longitudinal wire by manual through the ruler. The Min distance between the longitudinal wire is 50mm. The max up to 300mm between the welding electrodes. And adjust the cross wire distance by the touch screen in the control cabinet. You could set the welding speed, cross wire distance, mesh length and welding electricity size by the touch screen. Very easy to operate.

5. The Reinforcing Mesh Panel Welding Machine use servo motor to pull the mesh, in this case the mesh size is adjustable.

6. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.



Reinforcing Mesh Panel Welding Machine Technical Parameters:



Model DX-GWC-1500D DX-GWC-2000D DX-GWC-2500D
Weight 4500KGS 5000KGS 5500KGS
Dimension 7500*2200*1900mm 7500*2700*1900mm 7500*3200*1900mm
Rated load duration ±10% ±10% ±10%
Rated capacity 160kva*5pcs 160kva*7pcs 160kva*9pcs
Current 100A 100A 100A
Voltage 380V 220V 415V 440V 380V 220V 415V 440V 380V 220V 415V 440V
Thickness of steel bar 4.0-9.0mm 4.0-9.0mm 4.0-9.0mm
Welding speed 50-75 rows per min 50-75 rows per min 50-75 rows per min
Mesh width 1500mm 2000mm 2500mm
Line wire space 50-200mm 50-200mm 50-200mm
Cross wire space 50-300mm 50-300mm 50-300mm



Reinforcing Mesh Panel Welding Machine Applications:



The concrete reinforcing mesh panel is widely used as reinforce mesh panel for building, construction; railway wire mesh fence, security fence.



Reinforcing Mesh Panel Welding Machine Packing:



50mm Reinforced Mesh Welding Machine 0



Reinforcing Mesh Panel Welding Machine Photos:



50mm Reinforced Mesh Welding Machine 1



50mm Reinforced Mesh Welding Machine 2

50mm Reinforced Mesh Welding Machine 3
