PLC Servo Motor 7.5kw Wire Mesh Welding Machines , Stainless Steel Wire Mesh Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWCD-2500D |
| Minimum Order Quantity | One set |
| Packaging Details | The Electric Wire Mesh Welding Machine is nude packing. Need one 20 feet container to load. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 5 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wire Mesh Welding Machine | Wire Diameter | 3-6mm |
|---|---|---|---|
| Certification | CE | Warranty | 2 Years |
| Voltage | 220V/380V/415V/440V | Welding Speed | 40-60times/min |
| Type | Welding Wire Machine | Rated Duty Cycle | 50% |
| Rated Capacity | 6*125KVA | Power | 7.5kw |
| Usage | Welding Wire Mesh Fence | Cross Wire Space | 50mm-300mm |
| High Light | 7.5kw Wire Mesh Welding Machines,Servo Motor Wire Mesh Welding Machines,125KVA stainless steel wire mesh machine |
||
Product Description
Line Wire Feed By Servo Motor Latest Type Electric Wire Mesh Welding Machine
Electric Wire Mesh Welding Machine Introduction:
The Electric Wire Mesh Welding Machine is our latest type machine to make welded mesh panel. The Electric Wire Mesh Welding Machine has automatic line wire sending car to the welding machine. Save labor cost and increase productivity. The Electric Wire Mesh Welding Machine has a ladder for worker to put the cross wire. Very easy for workers to operate. And the cross wrie hopper device can load max 100KG cross wires.This is a big advantage for machine working.
Electric Wire Mesh Welding Machine Features:
Line wire feeding system:
1. Wire feeding system can send the steel bar to the welding machine in tidy. When the main machine start welding. The material of the next welded mesh panel can be placed at the same time.Improve productivity. The electric wire mesh welding machine adopt famous servo motor 1.5kw and planetary reducer for sending longitudinal wires when welding. Can save time.
Cross wire feeding system:
1. The cross wire feeding system adopts the invention patent,which can carry 100KG of steel bar weight.Reduce the labor strength and cost savings.
Welding electrodes:
1. The welding electrodes are connected to the welding transformer by single wire connection. The conductive effect is better,the electric energy is used more fully. and the electric energy and cost are saved.
2. All connecting wires are solid copper plates. 3. Welding electrodes are made of pure red copper and chromised bronze,durable can be used at least 6 months.
Electric Wire Mesh Welding Machine Advantages:
1. Brake motor and reducer connect the principal axis directly.
2. Cast water-cooling transformer and lower welding electrode base.
3. Pure welding electrodes, 20*20*20mm
4. PLC control of cross wire space adjustment and welding current adjustment.
5. Pre-straightened & pre-cut wires.
6. Touch screen interface.
7. Wire pre-load system.
Electric Wire Mesh Welding Machine Technical Parameters:
| Model | DX-GWCD-2000D | DX-GWCD-2500D |
| Control system | By PLC and touch screen | By PLC and touch screen |
| Frequency converter | Delta Brabd | Delta Brand |
| Switch | Schneider France | Schneider France |
| Servo motor | Panasonic Japan | Panasonic Japan |
| Welding wire diameter | 3.0-6.0mm | 3.0-6.0mm |
| Welding mesh width | 2000mm | 2500mm |
| Line wire space | 50-200mm | 50-200mm |
| Cross wire space | 50-300mm | 50-300mm |
| Welding transformer | 160KVA*5PCS | 160KVA*6PCS |
| Machine weight | 4.5T | 5.5T |
| Machine dimension | 8500*2700*1800mm | 8500*3300*1800mm |
Electric Wire Mesh Welding Machine Applications:
Electric wire mesh welding machine, also called BRC mesh welding machine, concrete mesh welding machine, used to make steel rebar mesh, road mesh, building construction mesh etc.

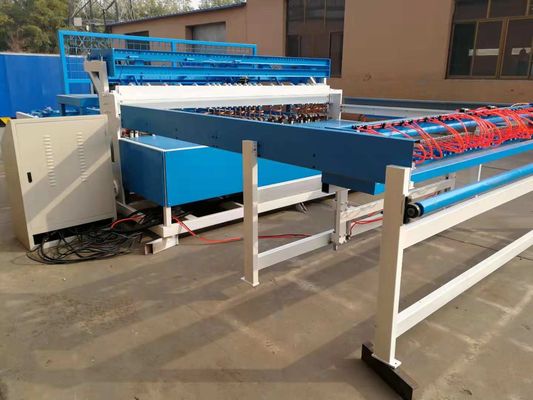

Electric Wire Mesh Welding Machine photos:
