230mm Housetop Building TEC Roll Mesh Welding Machine

  • 230mm Housetop Building TEC Roll Mesh Welding Machine
  • 230mm Housetop Building TEC Roll Mesh Welding Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWCD-2400D
Minimum Order Quantity One set
Packaging Details The TEC Conforce Wire Mesh Welding Machine is nude packing. One set machine need one 20 feet container. One 40 feet container can load 2 machines.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 5 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Roll Mesh Welding Machine Wire Diameter 2.4-6.0mm
Welding Mesh Width 2400mm Mesh Length Max. 80m In Roll
Material Galvanized Wire,low Carbon Steel Wire,iron Wire Main Motor 4.0kw
Welding Speed 55-70 Times Per Min Capacity 70-80 Rolls At 12 Hours
Welding Electrode 24pcs Welding Transformer 160kva*4pcs
Machine Weight 4.3T Machine Dimension 7500*3300*1700mm
High Light

TEC Roll Mesh Welding Machine

,

230mm Roll Mesh Welding Machine

,

TEC weld mesh machine
Leave a Message
Product Description

Mesh Size 230*200mm Housetop Building TEC Conforce Wire Mesh Welding Machine





TEC Conforce Wire Mesh Welding Machine Introduction:



TEC conforce wire mesh welding machine,also called automatic welded mesh machine,welded wire mesh roll machine,used to make road mesh,reinforcing mesh,construction mesh etc. The conforce wire mesh making machine can produce mesh length 60m in roll mesh per roll.And the the rolling mesh machine is frequency-converter. The rolling mesh speed is adjustable.



TEC Conforce Wire Mesh Welding Machine Features:



1. The TEC conforce wire mesh welding machine is very popular in Africa countries. We export the TEC conforce wire mesh welding machine to Algeria, Nigeria, Zambia, Tanzania, Mozambique, South Africa, Ethiopia. Many clients are very satisfied with our machine. The biggest advantage is that the mesh size is adjustable, you could make any mesh size according to your requirment by set the patameters in the control cabinet. And the welding speed is very fast. The welding speed max up to 80 times per min. The production capacity is 70 rolls in 12 hours. Improve economic efficiency to seize the market.

2. The line wire feeding from wire coils automatically, through the straight wheels device, make the line wire more straight and finished mesh will be more smooth.
3. The cross wire need be pre-straight and cutting and then feeding from hopper automatically. The cross wire hopper device can load 100kg.
4. Our welding electrodes used 20mm diameter pure copper, durable; The service life can be at least 6 months.
5. The welding transformer use water cooling system, Each of welding transformer capacity is 160kva. Has enough capacity to weld bigger steel wire. Welding firmed. And the water cooling system protect machine can running well in hot area or long time working.
6. Our electric control cabinets all use world-famous brand electronic components. Taiwan brand reducer, Japan brand PLC control system and servomotor, Franch brand and Sweden brand switch.

7. We could make the TEC conforce wire mesh welding machine specification according to your requirements. Such as: Wire diameter, welding mesh width, mesh size and mesh length per hour. And we also make the machine according to your local industrial voltage.



TEC Conforce Wire Mesh Welding Machine Technical Parameters:



Model DX-GWCD-1600 DX-GWCD-2100 DX-GWCD-2400
Pulling mesh system By servo motor By servo motor By servo motor
Servo motor power 2.6kw 3.8kw 3.8kw
Main motor power 4.0kw 4.0kw 5.5kw
Wire diameter 2.4-6.0mm 2.4-6.0mm 2.4-6.0mm
Welding mesh width 1600mm 2100mm 2400mm
Line wire space 100-300mm 100-300mm 100-300mm
Cross wire space 50-300mm 50-300mm 50-300mm
Line wire form Coil wire Coil wire Coil wire
Cross wire form Pre-straighten and pre-cut Pre-straighten and pre-cut Pre-straighten and pre-cut
Welding electrodes 16pcs 21pcs 24pcs



TEC Conforce Wire Mesh Welding Machine Packing:



230mm Housetop Building TEC Roll Mesh Welding Machine 0

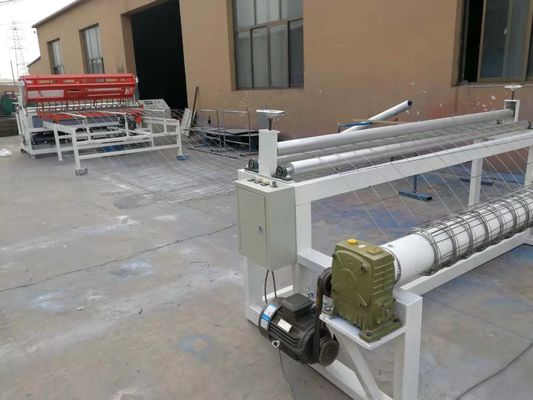

TEC Conforce Wire Mesh Welding Machine Photos:



230mm Housetop Building TEC Roll Mesh Welding Machine 1

230mm Housetop Building TEC Roll Mesh Welding Machine 2

230mm Housetop Building TEC Roll Mesh Welding Machine 3

230mm Housetop Building TEC Roll Mesh Welding Machine 4
