Mechanical Drawing 3mm 5.5KW Roll Mesh Welding Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWCD-2000D
Minimum Order Quantity One set
Packaging Details The Welded Wire Roll Net Welding Machine is nude packing. Need one 20 feet container to load. One 40 feet container can load 2 production lines.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 5-6 machines per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Roll Mesh Welding Machine Drawing Mesh Method Mechanical Drawing Mesh
Width Of Mesh 1200mm 1500mm 2000mm 2500mm Line Wire Diameter 3.0-5.0mm
Cross Wire Diameter 3.0-5.0mm Line Wire Form Coil Wire
Cross Wire Form Pre-straighten And Pre-cut Upper Welding Electrode Size 20*120mm
Down Welding Electrode Size 20*20*20mm Main Motor 5.5kw
Electricity Transformer 160kva Distance From Electricity Transformer To Machine 100m
High Light

5.5KW Roll Mesh Welding Machine

,

3mm Roll Mesh Welding Machine

,

5.5KW wire mesh making machine

Leave a Message
Product Description

Automatic Roll Net Mechanical Pulling Net Welded Wire Roll Net Welding Machine





Welded Wire Roll Net Welding Machine Introduction:



Cross wires are pre-straightening and cutting wires, line wires are coil wire. The Welded Wire Roll Net Welding Machine can weld continuous wire mesh rolls, main functional structures: line wire straightening and locator device, cross wire store hopper, mechanical hauling wire mesh device, mesh size locator device. It is compact in structure, easily to operate and with fully functions. The Welded Wire Roll Net Welding Machine mainly to make construction welded wire mesh.



Welded Wire Roll Net Welding Machine Features:



1. The welding electrode material is red copper, very hard and durable.Save your cost. The longitudinal wire is feed from coil wire. The longitudinal wire is through the straighten device. make sure the steel wire is straighten. And the surface of roll mesh is smooth.

2. This Welded Wire Roll Net Welding Machine is full automatic to feed longitudinal wires from coil, weld mesh, roll mesh. The cross wire is pre-straighten and pre-cut by wire straightening and cutting machine. The cross wire is feeding automatic with the help of stepping motor. The cross wire hopper can load max 100kg wires material.
3. It has advantages of reasonable design, low noise, stable working, easier operation etc.
4. The
Welded Wire Roll Net Welding Machine is equipped with control cabinet. You could set the different parameters by touch screen in the control cabinet. Such as; you could set the mesh size, length of roll mesh. The mesh size is precise and can be set according to customers' requirements.

5. The drawing mesh method adopt mechanical drawing mesh. Please check below photos. you will have further understand.



Welded Wire Roll Net Welding Machine Technical Parameters:



Model DX-GWCD-1600D DX-GWCD-2100 DX-GWCD-2500D
Machine weight 3.5T 3.8T 4.3T
Machine dimension 7500*2200*1700mm 7500*2900*1700mm 7500*3300*1700mm
Main motor power 4.0kw 4.0kw 5.5kw
Servo motor power 2.2kw 2.2kw 2.2kw
Line wire form Coil wire Coil wire Coil wire
Cross wire form Pre-cut Pre-cut Pre-cut
Line wire space 100-300mm 100-300mm 100-300mm
Cross wire space 100-300mm 100-300mm 100-300mm
Wire diameter 2.5-6.0mm 2.5-6.0mm 2.5-6.0mm
Welding mesh width 1600mm 2100mm 2400mm
Quantity of payoff wire stand 16pcs 21pcs 24pcs
Load weight for payoff stand 300kg 300kg 300kg
Rolling mesh length Max.100m Max.100m Max.100m



Composition of Welded Wire Roll Net Welding Machine:



No. Name of each part Quantity/Set
1 Main Mesh Welding Machine 1
2 Cross Wire Automatic Falling Hopper 1
3 Servo Motor Pulling Mesh Sevice 1
4 Operation Control Cabinet 1
5 Wire Straightening and Cutting Machine 2
6 Automatic Rolling Mesh Machine 1
7 Automatic Cutting Mesh Machine 1
8 Level Spare Parts Box 1
9 Installing Tool 1
10 Equipment Operation and Maintenance Manual 1



Welded Wire Roll Net Welding Machine Applications:



The welded wire mesh is used in Railway closed mesh highway closed mesh, field fence, district guardrail, all kinds of isolation with the mesh.



Welded Wire Roll Net Welding Machine Packing:



Mechanical Drawing 3mm 5.5KW Roll Mesh Welding Machine 0



Welded Wire Roll Net Welding Machine Photos:

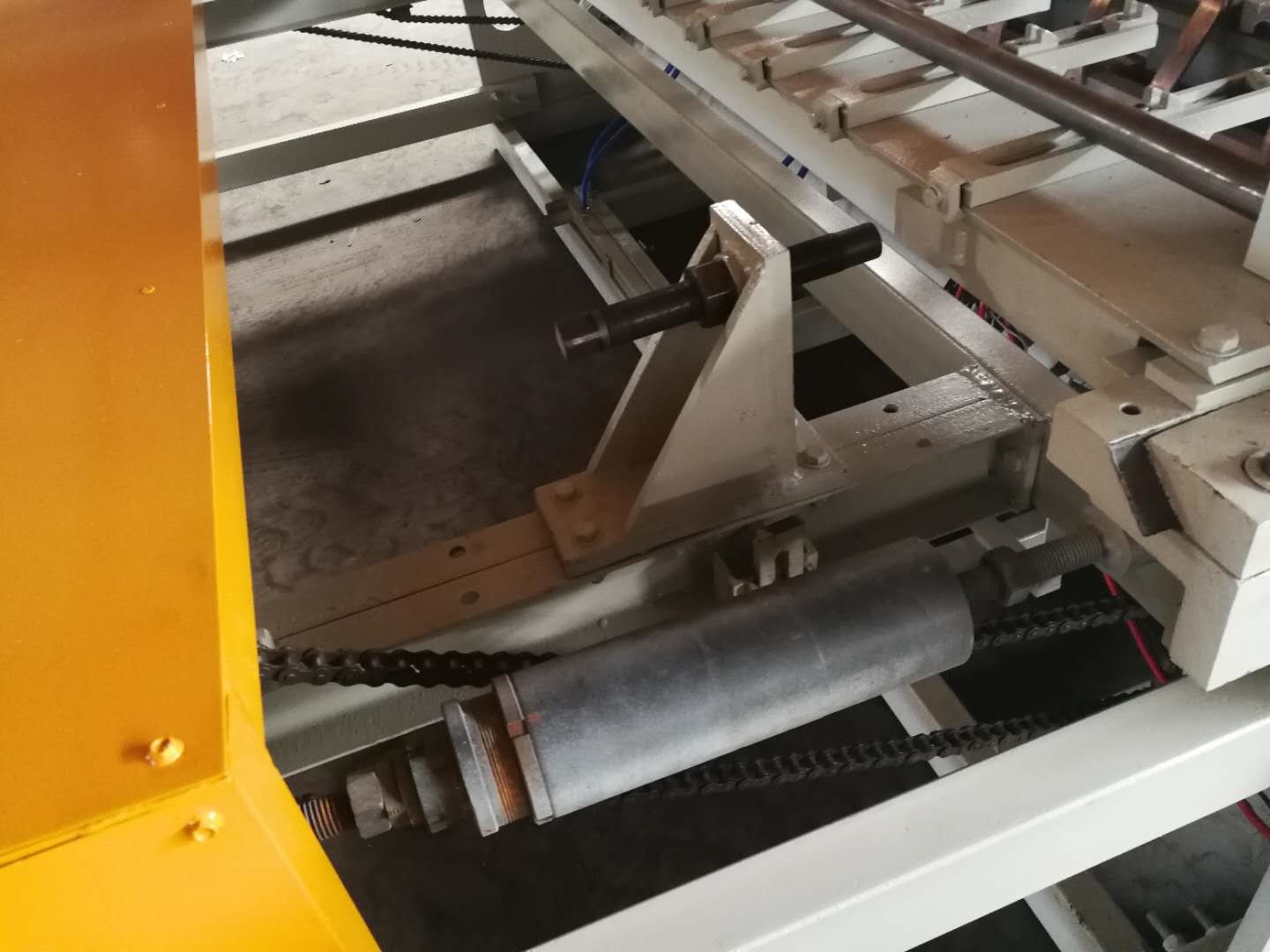

Mechanical Drawing 3mm 5.5KW Roll Mesh Welding Machine 1

Mechanical Drawing 3mm 5.5KW Roll Mesh Welding Machine 2

Mechanical Drawing 3mm 5.5KW Roll Mesh Welding Machine 3

Mechanical Drawing 3mm 5.5KW Roll Mesh Welding Machine 4

Mechanical Drawing 3mm 5.5KW Roll Mesh Welding Machine 5
