100 Times Military Double Edge Blade Manufacturing Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-RP-40 |
| Minimum Order Quantity | One set |
| Packaging Details | The Concertina Blade Barbed Wire Machine is nude packing. Need one 20 feet container to load. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 6-8 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Razor Barbed Wire Machine | Punch Time | 100 Times Per Min |
|---|---|---|---|
| Production Speed | 220-280m Per Hour | Motor Of Punch Machine | 7.5kw |
| Raw Material | Galvanized Coil Or Stainless Steel Coil | Thickness Of Raw Material | 0.5mm |
| Mould Shape | BTO-12,BTO-18,BTO-20, BTO-22,BTO-28. BTO-30. CBT-60, CBT-65 | Thickness Of Galvanized Wire | 2.5mm |
| Total Weight | 5200kg | Condition | New |
| High Light | Military Double Edge Blade Manufacturing Machine,7.5kw Double Edge Blade Manufacturing Machine,0.5mm razor blade manufacturing machine |
||
Product Description
Punch Speed 100 Times / Min Military Defence Concertina Blade Barbed Wire Machine
Concertina Blade Barbed Wire Machine Introduction:
Concertina blade barbed wire machine,also called Razor barbed wire machine.
Punch machine cuts steel tapes in different razor shapes with different mould.
Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.
The concertina blade barbed wire machine mainly consists of decoiler, punching machine, slitting frame, razor coiling machine, coiling machine, control cabinet, wire spool, wire strip coil. This type has advantages of easy operation,easy maintain,high speed and low energy consumption.
Concertina Blade Barbed Wire Machine Features:
1. Automatic complete production line,very easy to operate and high production capacity. The punch machine can punch 100 times per min.
2. Automatic decoiler hold max 200kg galvanized coil or stainless steel coil.
3. Punch machine adopts stepping motor to feed steel sheet fast and smooth and the punch machine adopts high quality bush,not easy to burn down.
4. Punch machine adopts button switch and foot switch,easy to operate.
5. Razor coiling machine adopts inverter to adjust working speed,
6. The concertina blade barbed wire machine is equipped with customized moulds saves 20% raw material
7. Slitting frame and razor coiling machine to wind up razor tapes rolls tightly.
8. The punch machine adopt Yangli brand. Very famous in China.
9. The coiling machine is variable-frequency. The speed of coil razor wire and galvanized wire is adjustable.
Concertina Blade Barbed Wire Machine Technical Parameters:
| Model |
DX-RP-25T |
DX-RP-40T | DX-RP-63T |
| Punch times | 100 times per min | 100 times per min | 100 times per min |
| Punch machine brand | Yangli,China | Yangli,China | Yangli,China |
| Motor of punch machine | 4.0kw | 7.5kw | 7.5kw |
| Weight of punch machine | 3.2T | 3.5T | 4T |
| Dimension of punch machine | 900*1000*1900mm | 1000*1000*2000mm | 1100*1000*2000mm |
| Motor of coiling machine | 1.5kw | 1.5kw | 1.5kw |
| Material thickness | 0.5mm galvanized coil | 0.5mm galvanized coil | 0.5mm galvanized coil |
| Wire diameter of galvanized wire | 2.5mm | 2.5mm | 2.5mm |
| Decoiler motor | 1.1kw | 1.1kw | 1.1kw |
| Decoiler weight | 300kg | 300kg | 300kg |
| Decoiler dimension |
1000*900*1000mm |
1000*900*1000mm |
1000*900*1000mm |
| Labor cost | One person | One person | One person |
Mould type for you to choose
| Razor Barb Type | Barb Thickness | Barb Length | Barb Width | Barb Spacing |
| BTO-12 | 0.5±0.05mm | 12±1mm | 13±1mm | 26±1mm |
| BTO-12 | 0.5±0.05mm | 12±1mm | 15±1mm | 26±1mm |
| BTO-18 | 0.5±0.05mm | 18±1mm | 15±1mm | 33±1mm |
| BTO-22 | 0.5±0.05mm | 22±1mm | 15±1mm | 34±1mm |
| BTO-28 | 0.5±0.05mm | 28±1mm | 15±1mm | 34±1mm |
| BTO-30 | 0.5±0.05mm | 30±1mm | 18±1mm | 34±1mm |
| BTO-60 | 0.6±0.05mm | 60±1mm | 22±1mm | 96±1mm |
| BTO-65 | 0.6±0.05mm | 65±1mm | 21±1mm | 100±1mm |
Concertina Blade Barbed Wire Machine Applications:
Concertina blade barbed wire is extensively used for security isolation of military facilities, communication stations,power distribution stations, border prisons, landfill, community protection, schools, factories, farms, prison defence etc.

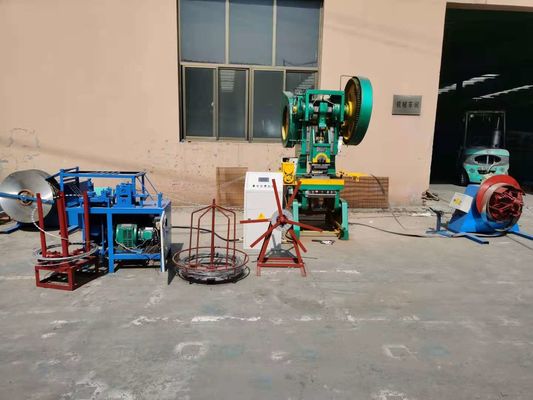

Concertina Blade Barbed Wire Machine Photos:
