Step Motor BTO 22 BTO 28 Shaving Blade Making Machine , Razor Blade Manufacturing Machine

  • Step Motor BTO 22 BTO 28 Shaving Blade Making Machine , Razor Blade Manufacturing Machine
  • Step Motor BTO 22 BTO 28 Shaving Blade Making Machine , Razor Blade Manufacturing Machine
Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-RP-40
Minimum Order Quantity One set
Packaging Details The Blade Barbed Wire Making Machine is nude packing. Need one 20 feet container to load.
Delivery Time 30 working days
Payment Terms L/C, T/T
Supply Ability 8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Razor Barbed Wire Machine Punch Machine Pressure 40 Tons
Motor Of Punch Machine 5.5kw Weight Of Punch Machine 3.8T
Brand Of Punch Machine Yangli Slitting Frame One Set
Razor Coiling Machine One Set Coiling Machine Two Sets
Wire Strip Spool One Set Wire Spool One Set
Decoiler One Set Total Weight 5.1T
Highlight

BTO 22 Shaving Blade Making Machine

,

Step Motor Shaving Blade Making Machine

,

2.2kw razor blade manufacturing machine
Leave a Message
Product Description

PLC Punch Pressure 40 Tons BTO-22 BTO-28 Blade Barbed Wire Making Machine





Blade Barbed Wire Making Machine Introduction:



Blade Barbed Wire Making Machine is mainly divided into punch machine part and coiling machine part.

First, the punch machine part is mainly composed of the decoiler, punch machine, slitting frame. razor coiling machine, control cabinet, coiling machine, wire spool, wire strip spool.The tonnage of the punch machine press depends on the width of the galvanized coil. It is a special production blade barbed wire machine, by feeder machine, punching machine, material-collecting, package silk into a unit. The blade barbed wire making machine is compact and small in size. Easy to operate, easy to maintain and low energy.Suitable for the production of various styles of razor wire.



Blade Barbed Wire Making Machine Features:



1. Punching machine part:It use for cut the steel strip, and make steel strip into razor blade,machine can produce different shapes and sizes strip by changing mold.

2. Forming machine part: It is used for warp steel wire into razor blade then wind up razor blade wire in coil. Press:25Tons,40Tons,63Tons. Razor types:BTO-10, BTO-12,BTO-18,BTO-22,BTO-30,BTO-28,BTO-30,CBT-60,CBT-65. Strips No: 7strips,9strips,11strips. Operator: 2-3 persons.

3. PLC and Touch screen control, easy to operate.
4. Production speed can be changed by frequency inverter, long life and high productivity.
5. Material feeding with step motor, more accurate.
6. Mold adopts special material, long life and more accurate.
7. Fit for various razor barbed wires production.



Blade Barbed Wire Making Machine Technical Parameters:



Model 25T 40T Coiling Machine
Voltage 380V/50HZ or as your request
Power 2.2kw 2.2kw 1.5kw
Producing Speed 220-280m/h 220-280m/h 80kg/h
Pressure 25T 25T/40T
Weight 1500KG 2200KG 300KG
Thickness of Sheet 0.5±0.05(mm) 0.5±0.05(mm)
Diameter of Wire 2.5mm 2.5mm 2.5mm
Dimension(mm) 1200*1000*1900 1100*1000*2000 100*750*1200
Raw material Hot dipped galvanized steel sheet; Stainless steel sheet,etc.



Mould type for you to choose



Style Barb length Barb width Barb space
BTO-10 10±1 mm 13±1mm 26±1mm
BTO-12-1 12±1mm 13±1mm 26±1mm
BTO-12-2 12±1mm 15±1mm 26±1mm
BTO-18 18±1mm 15±1mm 33±1mm
BTO-22 22±1mm 15±1mm 48±1mm
BTO-28 28±1mm 15±1mm 49±1mm
BTO-30 30±1mm 18±1mm 49±1mm
CBT-60 60±1mm 32±1mm 96±1mm
CBT-65 65±1mm 21±1mm 100±1mm



Blade Barbed Wire Making Machine Applications:



Blade barbed wire is widely used in military places, prisons, government agencies, banks, and residential walls, private houses, villa walls, doors and Windows, highways, railway guardrail and border protection and security.

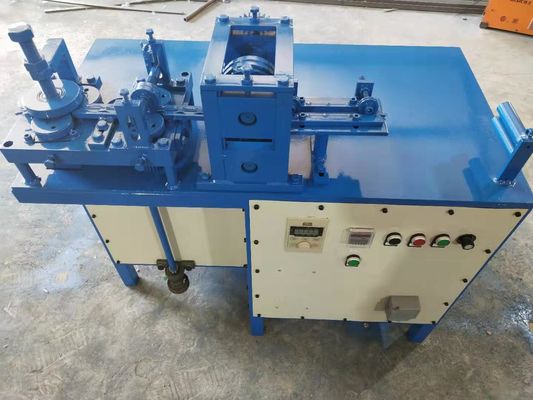

Blade Barbed Wire Making Machine Photos:



Step Motor BTO 22 BTO 28 Shaving Blade Making Machine , Razor Blade Manufacturing Machine 0

Step Motor BTO 22 BTO 28 Shaving Blade Making Machine , Razor Blade Manufacturing Machine 1

Step Motor BTO 22 BTO 28 Shaving Blade Making Machine , Razor Blade Manufacturing Machine 2

Step Motor BTO 22 BTO 28 Shaving Blade Making Machine , Razor Blade Manufacturing Machine 3
