Touch Screen 40 Tons 5.5KW Concertina Wire Making Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-RP-40 |
| Minimum Order Quantity | One set |
| Packaging Details | The Concertina Razor Barbed Wire Machine is was fixed and put in the container directly control box was put in the wooden case. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Razor Barbed Wire Machine | Type | Razor Wire/ Razor Barbed Wire |
|---|---|---|---|
| Warranty | 2 Years | Voltage | 220V/380V/415V/440V |
| Application | National Defense | Producing Speed | 220-280m/h |
| Wire Diameter | 2.5 Mm Or Customized | Motor Of Punch Machine | 5.5kw |
| Punch Pressure | 40T | Surface Treatment | Hot Dipped Galvanized Or Pvc Coated |
| Certification | CE | Total Weight | 4.6T |
| High Light | 5.5KW Concertina Wire Making Machine,40 Tons Concertina Wire Making Machine,Touch Screen Concertina Wire Making Machine |
||
Product Description
Touch Screen Control 40 Tons Punch Machine Concertina Razor Barbed Wire Machine
Concertina Razor Barbed Wire Machine Introduction:
Concertina razor barbed wire machine is light-style, easy to operate,convenient to maintain with competivive price. It is mainly consinsts of punch machine which can produce strip plate and coiling machine which can coil the wire into the strip plate.
Concertina Razor Barbed Wire Machine Features:
1. Punching machine part:It use for cut the steel strip, and make steel strip into razor blade,machine can produce different shapes and sizes strip by changing mold.
2. Forming machine part: It is used for warp steel wire into razor blade then wind up razor blade wire in coil. Press:25Tons,40Tons,63Tons.
3. Razor types:BTO-10, BTO-12,BTO-18,BTO-22,BTO-30,BTO-28,BTO-30,CBT-60,CBT-65. Strips No: 7strips,9strips,11strips.
4. PLC and Touch screen control, easy to operate.
5. Production speed can be changed by frequency inverter, long life and high productivity.
6. Material feeding with step motor, more accurate.
Concertina Razor Barbed Wire Machine Technical Parameters:
| 40T razor wire making machine | |
| 1.Main machine | Punch machine (Yangli Brand) |
| Stroke per minute | 100 times |
| Voltage | 220V,380V415V,440V. |
| Press | 40T |
| Power | 5.5KW |
| Capacity | 280-320m/h |
| Weight | 3.5 Ton |
| Dimension | 1200mmx1000mmx1800mm |
| 2.Machine name | Coiling machine |
| Wire Diameter | 2.5 mm |
| Production | 80kg/h |
| Voltage | 380V |
| Power | 3.0KW |
| Weight | 500kg |
| Dimension | 1100mmx750mmx1200mm |
| Model | 25T | 63T | Coiling Machine |
| Voltage | 380V/50HZ or as your request | ||
| Power | 4.0kw | 7.5kw | 1.5kw |
| Producing Speed | 220-280m/h | 220-280m/h | 80kg/h |
| Pressure | 25T | 63T | |
| Weight | 3000KG | 4000KG | 300KG |
| Thickness of Sheet | 0.5±0.05(mm) | 0.5±0.05(mm) | |
| Diameter of Wire | 2.5mm | 2.5mm | 2.5mm |
| Dimension(mm) | 1200*1000*1900 | 1100*1000*2000 | 100*750*1200 |
| Raw material | Hot dipped galvanized steel sheet; Stainless steel sheet,etc. | ||
Concertina Barbed Wire Machine razor shape:
| Razor Barb Type | Barb Thickness | Barb Length | Barb Width | Barb Spacing |
| BTO-12 | 0.5±0.05mm | 12±1mm | 13±1mm | 26±1mm |
| BTO-12 | 0.5±0.05mm | 12±1mm | 15±1mm | 26±1mm |
| BTO-18 | 0.5±0.05mm | 18±1mm | 15±1mm | 33±1mm |
| BTO-22 | 0.5±0.05mm | 22±1mm | 15±1mm | 34±1mm |
| BTO-28 | 0.5±0.05mm | 28±1mm | 15±1mm | 34±1mm |
| BTO-30 | 0.5±0.05mm | 30±1mm | 18±1mm | 34±1mm |
| BTO-60 | 0.6±0.05mm | 60±1mm | 22±1mm | 96±1mm |
| BTO-65 | 0.6±0.05mm | 65±1mm | 21±1mm | 100±1mm |
Concertina Razor Barbed Wire Machine Applications:
For grassland boundary, railway, highway isolation protection and garden apartment, institutions, prisons, posts, frontier defense, etc

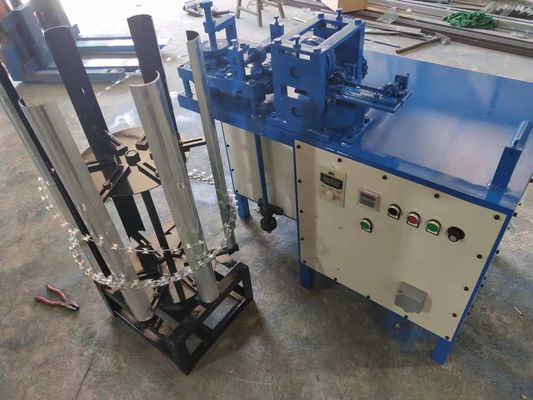

Concertina Razor Barbed Wire Machine Photos:
