Squeezing Wheels CE 7.5kw Razor Barbed Wire Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-RP-63 |
| Minimum Order Quantity | One set |
| Packaging Details | The Razor Barbed Wire Machine is put into 20 feet container. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 15 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Razor Barbed Wire Machine | Brand Of Punch Machine | Yangli China |
|---|---|---|---|
| Punch Pressure | 25T 40T 63T | Motor Of Punch Machine | 4.0kw 5.5kw 7.5kw |
| Weight Of Punch Machine | 3.5T 4.0T 4.2T | Punch Strips | 5 Strips 9 Strips 11 Strips |
| Decoiler | One Set | Slitting Frame | One Set |
| Razor Coiling Machine | One Set | Coiling Machine | Two Sets |
| Wire Strip Spool | Two Sets | Wire Spool | Two Sets |
| Highlight | 7.5kw Razor Barbed Wire Machine,CE Razor Barbed Wire Machine,5 strips razor making machine |
||
Product Description
Yangli Punch Machine Automatic Coil Wire And Strip Razor Barbed Wire Machine
Razor Barbed Wire Machine Introduction:
1. Blade barbed wire machine Also called the razor blade barbed wire making machine
2. it is a special production blade barbed wire machine, by feeder machine, punching machine, material-collecting, package silk into a unit.
3. The razor barbed wire machine is compact and small in size.Easy to operate, easy to maintain and low energy.Suitable for the production of various styles of razor wire.
Razor Barbed Wire Machine Features:
1. Automatically complete production line, operator friendly and higher speed.
2. Automatical decoiler holding max. 2tons steel sheet; its motor made of copper leads.
3. Different ton punch press for choice to save your cost.
4. Customized mold saving 20% raw materials; hot-cast mold, one year life.
4. Slitting frame and recoiler to wind up razor tapes rolls tightly.
5. Electro-magnetic motor in coiling machine for smooth speed adjustable.
6. Multifunctional squeezing wheels for strong finished razor wire.
Razor Barbed Wire Machine Technical Parameters:
|
Punching Machine Assembly Line:
|
Forming Machine Assembly Line:
|
||
|
Components:
|
De- Coiler,
Punching Press Machine,
Razor Strips Recoiling Machine
|
Components:
|
Wire Pay Off Reel,
Razor Blade and Wire Forming Machine,
Re-coiler
|
|
Razor Blade model:
|
BTO-12,15,18,22,30
CBT-60,65 |
Coiler Diameter:
|
400mm-600mm
600mm-1000mm |
|
Material:
|
Galvanized plate,
Stainless steel plate
|
Material:
|
Galvanized plate,
Stainless steel plate
|
|
Strips:
|
1,5,7,9,11,13
|
Usage:
|
Safety nets
|
|
Voltage:
|
380V
|
Voltage:
|
380V
|
|
Motor power:
|
3Kw
|
Motor power:
|
3Kw
|
|
Dimension
|
8000mm*1300mm*1900mm
|
Dimension
|
1100mm*750mm*1200mm
|
|
Weight:
|
4.5T
|
Weight:
|
350kg
|
|
Production capacity:
|
1.5T--4T/8hour
|
||
| Razor Barb Type | Barb Thickness | Barb Length | Barb Width | Barb Spacing |
| BTO-12 | 0.5±0.05mm | 12±1mm | 13±1mm | 26±1mm |
| BTO-12 | 0.5±0.05mm | 12±1mm | 15±1mm | 26±1mm |
| BTO-18 | 0.5±0.05mm | 18±1mm | 15±1mm | 33±1mm |
| BTO-22 | 0.5±0.05mm | 22±1mm | 15±1mm | 34±1mm |
| BTO-28 | 0.5±0.05mm | 28±1mm | 15±1mm | 34±1mm |
| BTO-30 | 0.5±0.05mm | 30±1mm | 18±1mm | 34±1mm |
| BTO-60 | 0.6±0.05mm | 60±1mm | 22±1mm | 96±1mm |
| BTO-65 | 0.6±0.05mm | 65±1mm | 21±1mm | 100±1mm |
Razor Barbed Wire Machine Technical Parameters:
Razor barbed wire is extensively used for security isolation of military facilities, communication stations, power distribution
stations, border prisons, landfill, community protection, schools, factories, farms, etc.
Razor Barbed Wire Machine Packing:

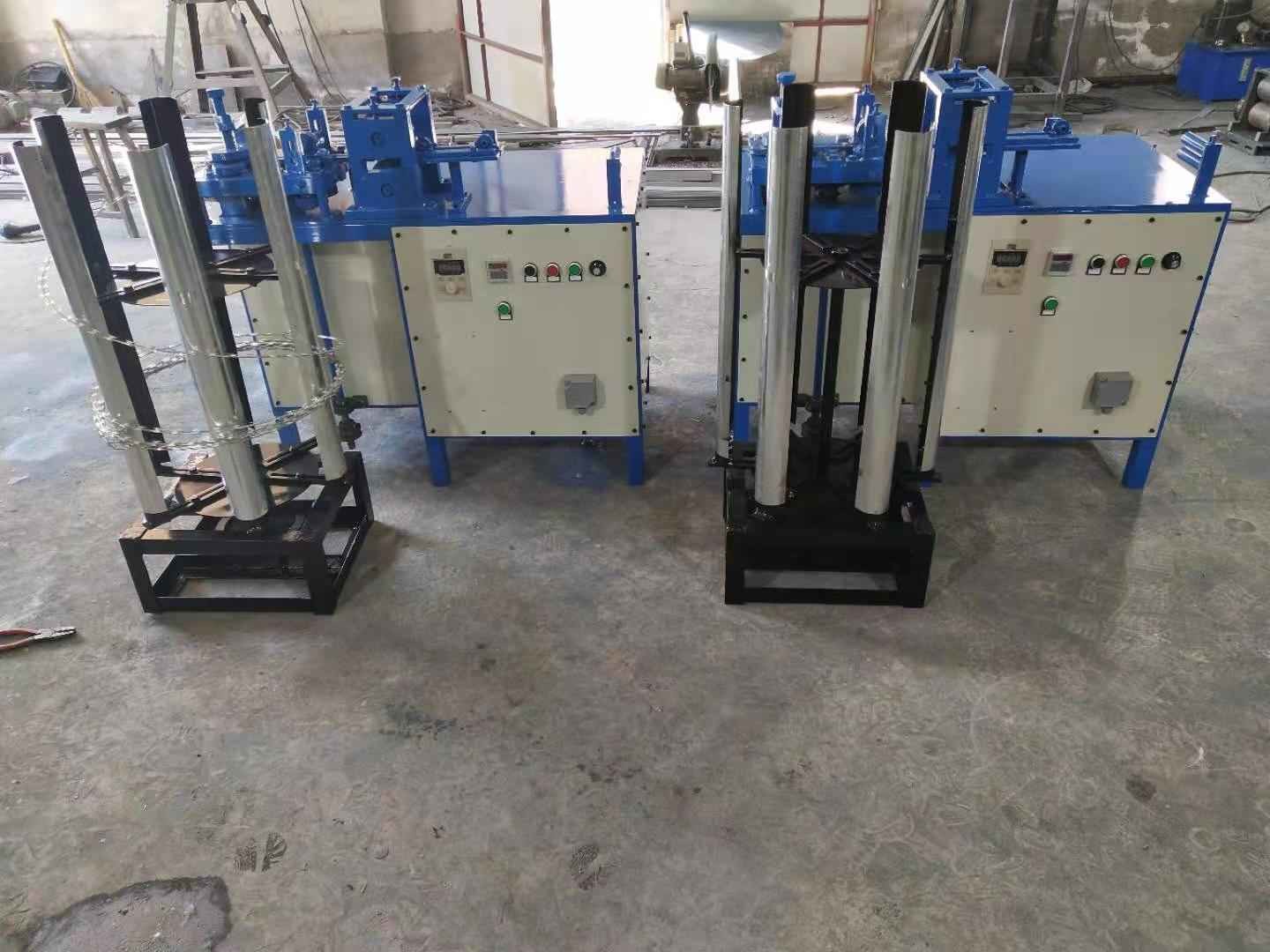

Razor Barbed Wire Machine Photos:
