Product Name Steel Grating Welding Machine Flat Bar Thickness 2-10mm
Cutting Blade Diam 580mm Grating Width 1200mm
Grating Length Max 8m Welding Transformer 250kva*8pcs
Welding Speed 25 Times Per Min Cross Twisted Bar 5*5mm-8*8mm
Flat Bar Space 30mm 40mm 50mm 60mm 70mm 80mm Cross Bar Space 50-200mm
Labor Cost 2 Person Air Compressor 0.63MPa
Machine Weight 18T
High Light

50mm Steel Grating Welding Machine


CNC Steel Grating Welding Machine


6m steel plate welding machine

Leave a Message
Product Description

Grating Length 6m Cross Bar Space 50mm CNC Steel Grating Welding Machine



Steel Grating Welding Machine Introduction:


This steel grating welding production line is comprised of gantry type welding machine, double-layer flat steel feeding device, cross bar auto falling device, steel grating hauling device, hydraulic & pneumatic system, CNC control system, etc.

1. Suitable material: hot-rolled steel or cold-rolled steel.

2.Bearing flat bar: slitted strips, width 25-75mm, thickness 2.5-6.5mm

3. Cross bar: round bar or twisted square bar, 5mm, 8mm (diameter of round bar or side length of square bar, cross section is usually not less than 20mm2)


Steel Grating Welding Machine Features:

1. It's made up of input table 6 meters, main machine, oil pump, control cabinet, output table 2 meters and saw blade sharpening machine.
2. It is automatic cutting for grating, the cutting blade moving is controlled by frequency adjustable inverter.
3. It adopts the new technology-infrared sight to cut the steel grating on straight line, accurate.
4. Motor speed:2950rpm, can cut 1.6m per minute or even faster.
5. The machine needs the worker to measure the cut length first, make a mark, then send the steel gratings to the infrared sight line to cut.
6. The saw blade is made of 75Crl. It is very good use for cutting.


Steel Grating Welding Machine Technical parameter:


1. Input the power:380V 50 Hz 3 phase
2. Welding transformer: 250kva*8
3. Max pressure: 160Ton
4. Welding frequency: 1000Hz
5. Welding panel width: max 1m; length: max 7.5m
6. Bearing flat steel range: 20--100mm(flat steel,ribbed edge steel I-shape flat steel)
7. Distance of cross wire: 50--100mm
8. Cross bar feed way: automatic
9. Welding times: 8-9s/times
10. Capacity: 420--480m2 per day (8 hours)
11.Dimension: 18000*5000*2700mm
12.Total weight: 13T
13. Auxiliary equipments like straightening cutting machine.and cutting edge machines.control cabinet are included
14. Weld Material: carbon steel or stainless steel
15. Rated welding for the electric current: 200KA
16. Weld the electric current the most largely.


Steel Grating Welding Machine Applications:


Steel grating are suitable for alloys, building materials, power plants, boilers. Shipbuilding.
Petrochemical Zhi, chemical and general industrial plant, municipal construction and other industries, with ventilation, light, anti-skid, strong bearing capacity, beautiful and durable, easy to clean, easy to install and so on.
Steel grating has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor, railway bridge service, high tower platform, the drain cover, manhole covers, road barrier, three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway, rail barrier, etc.

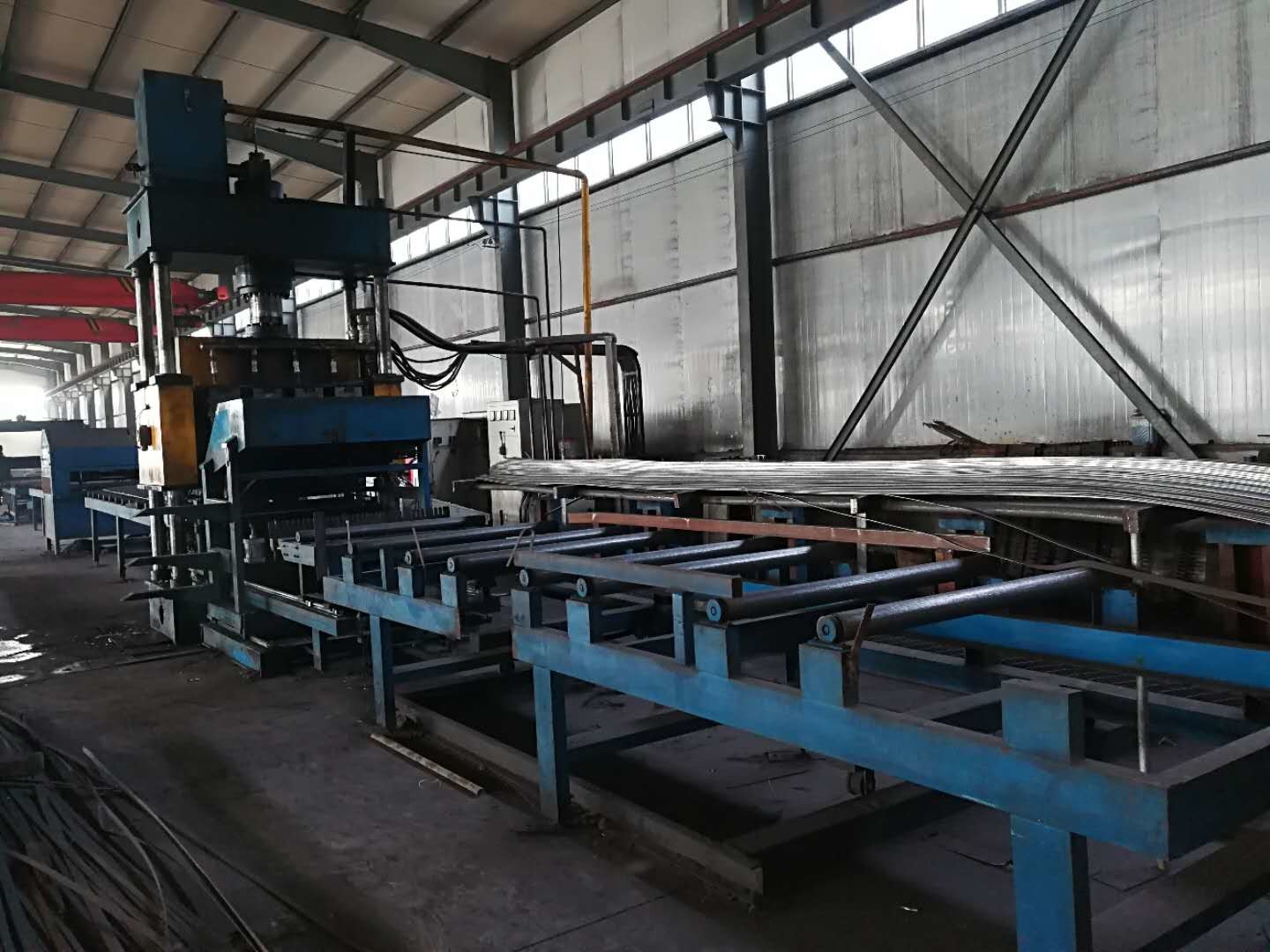

Steel Grating Welding Machine Photos:
