Servo Motor Pull Mesh Cnc Welded 6.0mm Fence Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWC-2500D |
| Minimum Order Quantity | One set |
| Packaging Details | The welded wire mesh panel welding machine is nude packing. Need one 20 feet container to load. |
| Delivery Time | 30 days |
| Supply Ability | 4-6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Welded Wire Fence Mesh Panel Welding Machine | Line Wire Space | 50-250mm |
|---|---|---|---|
| Cross Wire Space | 50-300mm | Machine Dimension | 7500x3200x1700mm |
| Machine Weight | 4500kg | Wire Diameter | 3.0-6.0mm |
| Length Of Mesh | 6000mm | Power | 5.5kw |
| Rated Capacity | 6*125KVA | Labor Required | 2 Persons |
| Control System | PLC | Pulling Mesh System | Servo Motor |
| Power Transformer | 120KVA | Production Capacity | 60 PCS Per Hour |
| High Light | 6.0mm fence mesh welding machine,6.0mm welded mesh welding machine,cnc fence mesh welding machine |
||
Product Description
Servo Motor Pull Mesh CNC Welded Wire Fence Mesh Panel Welding Machine
Welded Wire Fence Mesh Panel Welding Machine Introduction:
1. Control System
The control system adopts synchronous control technique. The welding time and separate welding are controlled by computer with PLC program touch screen system and HMI.
2. Mesh Pulling Part
The mesh pulling system controlled by servo-motor adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.
3. Line wire sending part
The mesh sending system is controlled by computer. It simplifies the process that every tensile spring has to be changed when the wire diameter is different. You only need to change the pressure of welding point. Welding aperture can adjust randomly within range.
4. Wire Feed Way
The line wires and cross wires should be pre-straightened and pre-cut.
The line wire is feeding by the servo motor, pulling the mesh the servo motor auto. The cross wires are fed automatically from the multi hopper which capacity is more over ten times than the traditional hopper.
Welded Wire Fence Mesh Panel Welding Machine Features:
1. The PLC adopt Panasonic Jpan
2. The touch screen adopt Wenview China
3. The low-voltage apparatus adopt Schneider France
4. The air switch adopt Schneider France.
5. The power supply adopt Omron Japan
6. The frequency converter adopt Delta China.
7. The servo motor adopt Panasonic Japan.
Welded Wire Fence Mesh Panel Welding Machine Technical Parameters:
| Model | DX-GWC-2000 | DX-GWC-2500 |
| Wire diameter | 3.0-6.0mm | 3.0-6.0mm |
| Line wire space | 50-250mm | 50-250mm |
| Cross wire space | 50-300mm | 50-300mm |
| Line wire type | Pre-cut | Pre-cut |
| Cross wire type | Pre-cut | Pre-cut |
| Width of mesh | 2000mm | 2500mm |
| Length of mesh | 7000mm | 7000mm |
| Welding transformer | 125KVA*5PCS | 125KVA*6PCS |
| Material of welding electrode | Red copper | Red copper |
| Number of welding electrode | 40pcs | 48pcs |
| Control switch | Schneider France | Schneider France |
| Freqyency converter | Delta China | Delta China |
| PLC | Mitsubishi Japan | Mitsubishi Japan |
| Machine weight | 4000kg | 4500kg |
| Machine dimension | 7500x2700x1700mm | 7500x3200x1700mm |
Welded Wire Fence Mesh Panel Welding Machine Applications:
It is widely used in industry and construction, such as building board, the roof, the wall, the bridge, concrete road, the floor, the airport, cement pipe, concrete prefabricated components, retaining wall, protection slope, the tunnel, the dock, the dyke, construction reinforcing mesh; highway; railway; bridge; enclosure mesh; fencing and so on.

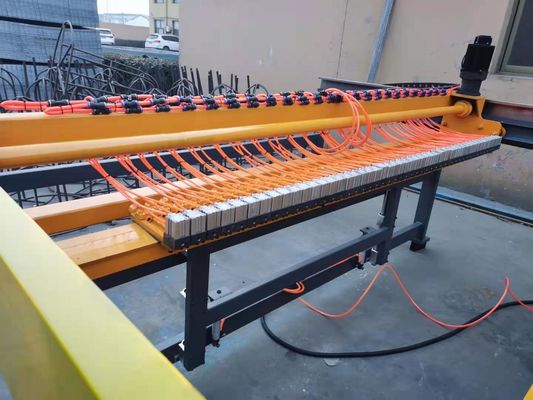

Welded Wire Fence Mesh Panel Welding Machine Photos:
