Product Name Wire Mesh Welding Machine Thickness Of Steel Plate 25mm
Welding Transformer 125KVA*6PCS Size Of Welding Electrode 18mm*100mm
Size Of Square Electrode 35*35*18mm Material Of Electrode Red Copper
Welding Speed 45-65 Times Per Min Wire Diameter 3-6mm
Width Of Mesh 1200mm 1500mm 2000mm 2500mm Main Motor Power 5.5kw
Pulling Mesh By Servo Motor Line Wire Space 50-200mm
Cross Wire Space 50-200mm Machine Weight 4.5T
High Light

5.5kw wire mesh welding machines

,

servo motor mesh welding machine

,

1200mm wire mesh welding machines

Leave a Message
Product Description

Building Mesh Servo Motor Drawing Mesh Motor 5.5kw Wire Mesh Welding Machine





Wire Mesh Welding Machine Introduction:



Wire mesh welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are quite accurate. Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable. The biggest advantage of this system is more than 30 different mesh sizes can appear on same sheet. New and high efficient welding transformer expands welding scope of wire diameter. Easy operation, high flexibility and output achieve a perfect welding machine.



Wire diameter: 3-6mm

Welding width: 2500mm
Line wire space: 50-300mm

Cross wire space: 50-300mm

Mesh product: mesh sheet/panel



1. The line wire should be straightened and cut. Manual feeding the line wire into the line wire feeding car. The line wire feeding by automatic feeding car to the wire mesh welding machine.
2. Cross wire need be pre-straight& cutting and then feeding on hopper automatically. The cross wire is controlled by the stepping motor.
3. Tur welding electrodes used 20mm diameter pure copper, durable.
4. The welding transformer use water cooling system, protect machine can running well in a hot area or long time working.
5. The main motor 5.5kw and helical gear reducer connect the main axis directly, big transmission torque.
6. The cable carrier is imported from Germany, the best one all over the world, protect machine wire, not hung down.

7. Our electric control cabinets all use world-famous brand electronic components. Taiwan brand reducer, Japan brand PLC control system and servomotor, Franch brand and Sweden brand switch.



Wire Mesh Welding Machine Advantages:



1. Taiwan Delta PLC control and touch screen more stable.More technical parameters (such as speed,mesh size)can be set and adjusted on the touch screen.Very convenient for workers to operate.

2. Good CuCrZr of electrodes,transformer cooled by water.

3. Both wires are pre-cut and finished mesh panel more nice.

4. Longtitude wire fed automatically by raw material feeding device.Finished mesh pulled automatically by pnematic device.

5. Production capacity more improved.



Wire Mesh Welding Machine Technical Parameters:

Model DX-GWC-2500A DX-GWC-3000AN DX-GWC-3200A
Wire diameter 3-6mm
Line wire space 50-300mm 50-300mm 76.2-300mm
Cross wire space Min.25mm Min.25mm Min.12.7mm
Width of mesh Max.2.5m Max.3m Max.3200mm
Length of mesh Max.3.2m Max.3m Max.4000mm
Welding electrodes 48pcs 61pcs 44pcs
Welding transformer 150kva*6pcs 160kva*8pcs 150kva*11pcs
Welding speed Max.75 times/min Max.60 times/min Max.120 times/min
Line wire feeding Pre-straightened&pre-cut
Cross wire feeding Pre-straightened&pre-cut
Weight 3.6T 7.4T 5.4T
Machine size 4.9*3.4*1.6m 12*3.7*2.5m 5.4*3.7*2.3m



Wire Mesh Welding Machine Applications:



Road mesh, fence mesh,construction mesh,



Wire Mesh Welding Machine Photos:

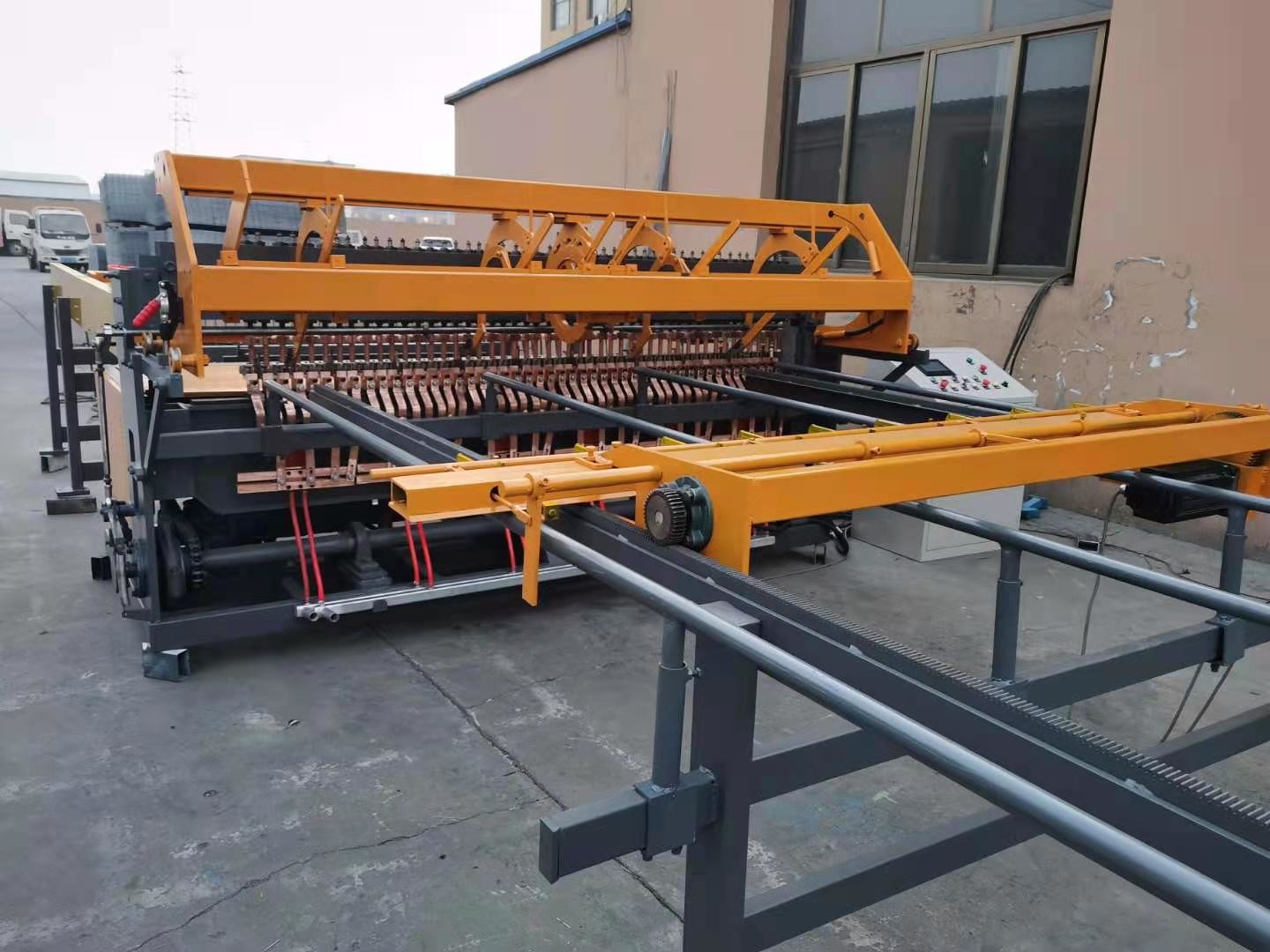

Building Servo Motor Drawing 5.5kw Wire Mesh Welding Machines 0

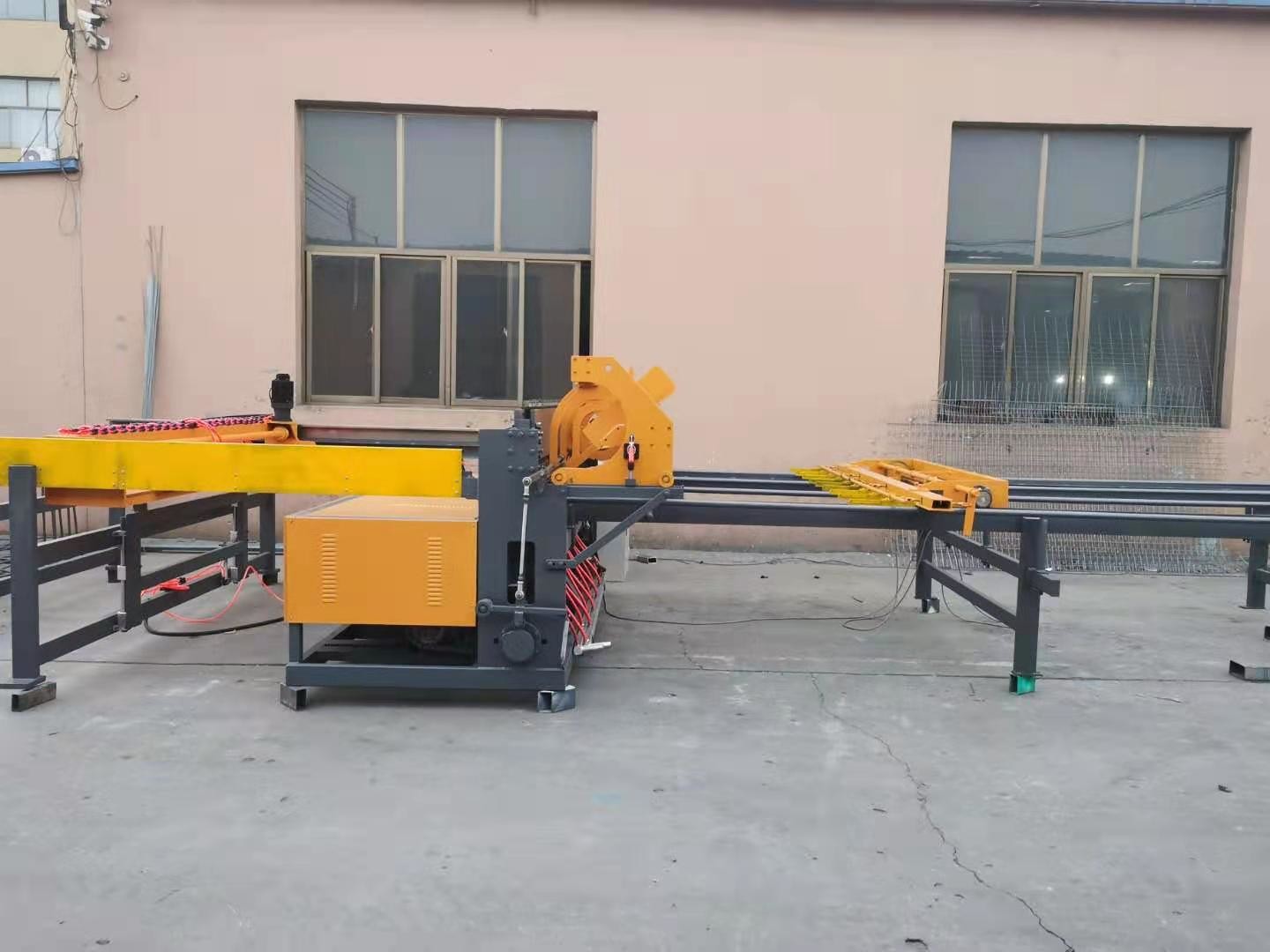

Building Servo Motor Drawing 5.5kw Wire Mesh Welding Machines 1
