Product Name Reinforcing Steel Bar Mesh Welding Machine Wire Diameter 4-8mm
Industrial Voltage 380V/220V/415V/440V Length Of Mesh 6m
Mesh Width 2500mm Line Wire Type Pre-straighten And Pre-cut
Cross Wire Type Pre-straighten And Pre-cut Line Wire Feeding By Auto Feeding Car
Cross Wire Feeding By Stepping Motor Controlled Upper Welding Electrodes Square Size
Lower Welding Electrodes Square Size Welding Transformer 160KVA*6PCS
Welding Electrode 24PCS Machine Weight 7.5T
High Light

8mm reinforcing mesh welding machine

,

stepping motor reinforcing mesh welding machine

,

8mm rebar mesh welding machine

Leave a Message
Product Description

Wire Diameter 4-8mm Middle-Sized Reinforcing Steel Bar Mesh Welding Machine





Reinforcing Steel Bar Mesh Welding Machine Introduction:



1. This reinforcing steel bar mesh welding machine is controlled by the special computer, the welding current and welding time in each welding transformer can be individually adjusted. The machine operating interface is made up with color touch screen and control buttons, easy to operate.

2. Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.

3. Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.

4. Modular design for the upper and lower electrodes, convenient to adjust the mesh.

5. weft-hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of disc device from the large hopper, and the weft hopper is installed in the removable pull rid, convenient to adjust and maintain.

6. The mesh pulling part driven by servo motor can be set a variety of weft space in the same mesh, pull the mesh continuously back and forth to extend the size of mesh, and use pneumatic clamping device to accurate weft spacing.

7. The warp feeding part driven by stepper motor can be fed the warps which a whole mesh needs when welding, so that the machine is very short interval of time.

8. Automatic CNC steel mesh welding machine WZ-2500A is equipped with a mesh roller frame and removable warp frame.



Reinforcing Steel Bar Mesh Welding Machine Producing Procession
1. Realize the automatic alignment of the line wires into the welding position, reduce the welding wait time, very good to achieve
a neat hair head, hair head length can be adjusted effect;
2. The line wires feeding part mainly realizes that each line wires head is aligned and quickly feeds to the welding position,
shortens the mesh welding interval time;
3. The line wires feeding part mainly consists of line wires feeding trolley, line wires feeding trolley track, line wires
alignment device and so on;
4. When the line wires feeding trolley in the thread position, line wires alignment device rises to the line wires to wire the position,
the operator will the line wires corresponding to enter into the line wires trolley The clip silk device, and the line wires to the cross wires alignment device positioning board, finished, press the automatic wire feeding button, line wires feeding trolley will be the wire clamping, line wires alignment device reset, feeding trolley step motor start, line wires feeding trolley drive line wires to welding position, when the first cross line is welded, the gripper is automatically loosened, the line wires feed
trolley is returned, and when the line wires is completely off the line alignment device, the worker can begin to work on the line
wires of the next mesh piece.
Reinforcing Steel Bar Mesh Welding Machine Technical Parameters:
Wire Diameter 4-8mm
Max Mesh Width 2500mm
Max Mesh Length 6m or 12m
Cross wire spacing 100-300 mm
Line wire spacing 100-300 mm
Mesh Form Produced in panel
Number of Line Wire 24
Welding Speed max50-80 cross wires/min
Power 160KVA*6( transformer with water cooling system )
Pulling Mesh Way pulling mesh back and forward repeatedly by Servo Motor
Rated voltage 380V 50Hz Three Phase
Main Motor 7.5KW (electromagnetic brake motor)
Welding Way Resistance Welding Controlled by the Silicon
Pressure Mode adjustable spring pressure
Welding Time 10ms~100ms
Weft Wire Feeding way step motor falling weft wire automatically
Machine weight 7.5T
Machine dimension 7.5x3.2*1.9m
Reinforcing Steel Bar Mesh Welding Machine Applications:
Reinforcing steel bar mesh is mainly used in coal mine roadway, concrete pavement, bridge deck, airport runway and construction mesh.

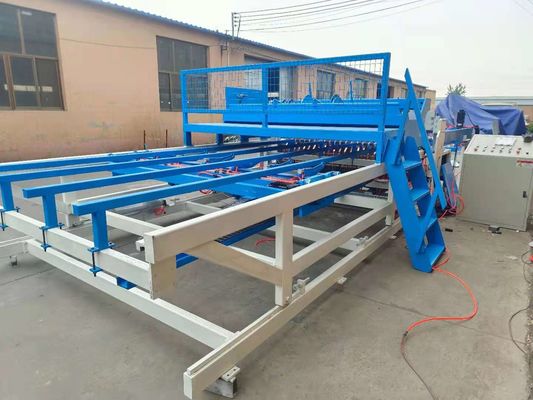

Reinforcing Steel Bar Mesh Welding Machine Photos:
