PLC Cross Wire 50-200mm Line Wire Mesh Welding Machine Auto Put Welded

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500B
Minimum Order Quantity One set
Packaging Details The welded fence mesh welding machine is nude packing. One machine need one 20 ft container to delivery.
Delivery Time 30 working days
Supply Ability 8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fence Mesh Welding Machine Warranty 2 Years
Wire Diameter 3-6mm Welding Speed 50-75 Times/min
Rated Capacity 125KVA*6pcs Mesh Width Max 2500mm
Rated Voltage AC380V 50HZ Rated Duty Cycle Adjusted By Transformer
Control System PLC+Touch Screen Cross Wire Space 50-200mm
Dimensions 7000mm*3200mm*1700mm Labor Requirement Two Workers
Pulling Mesh System By Servo Motor Line Wire Space 50-250mm
High Light

50mm wire mesh welding machine

,

200mm wire mesh welding machine

,

PLC wire mesh welding machine

Leave a Message
Product Description

Cross Wire 50-200mm Line Wire Auto Put Welded Fence Mesh Welding Machine





Welded Fence Mesh Welding Machine Introduction:



Welding system uses servo motor control, work accurately and use process does not produce sludge, has little effect on the environment. All key components are well-known brands, the quality of the procurement system in full accordance with ISO9001 standards. And comply with EU safety certification standards.

Wire alignment and length by integrated design, and the use of PLC control, easy to operate.

Wire mesh collection device to take up the space is little, simple, reliable, easy to assemble, easy to handle, suitable for the production flexibility of large customers.

System equipment can and desktop computers or notebook computers or workstations are connected. Easy operation. By raw material usage optimization system can achieve the ultimate. The greatest degree of raw material savings for customers. Improve production efficiency, provide more efficient, intelligent management.

welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.

Welded Fence Mesh Welding Machine Features:

1. CNC wheel-step design to provide high accurate mesh grid

2. Electrode lift system to extend electrode life

3. Line wire loop and balance system to ensure wire mesh accuracy.

4. Welding pressure steplessly adjust to apply multiple wire diameter

5. Line wire automatic put by from wire feeding car

6. Automatic mesh turning, stacking and conveying system

Welded Fence Mesh Welding Machine Technical Parameters:

Model DX-GWC-2000B DX-GWC-2500B
Thickness of steel wire 3-6mm 3-6mm
Suitable material galvanized wire,steel wire galvanized wire,steel wire
Power supply 120KVA 120KVA
Main motor power 5.5kw 5.5kw
Welding speed 50-75 times per min 50-75 times per min
Labor requirement 2 workers 2 workers
Width of mesh 2000mm 2500mm
Length of mesh 3000mm 3000mm
Welding transformer 125kva*5pcs 125kva*6pcs
Cross wire space 50-200mm 50-200mm
Line wire space 50-200mm 50-200mm
Machine weight 4.2T 4.5T
Pulling mesh system servo motor servo motor
Welding current 200A 200A



Welded Fence Mesh Welding Machine Applications:



The welded fence mesh is used in coal mine roof protection, tunnel, bridge construction, subgrade net bars, construction site construction materials.

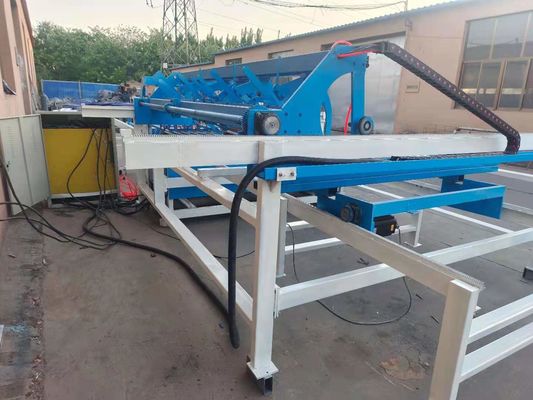

Welded Fence Mesh Welding Machine Photos:



PLC Cross Wire 50-200mm Line Wire Mesh Welding Machine Auto Put Welded 0

PLC Cross Wire 50-200mm Line Wire Mesh Welding Machine Auto Put Welded 1

PLC Cross Wire 50-200mm Line Wire Mesh Welding Machine Auto Put Welded 2
