Mesh Size 50-200mm Cnc Fence Mesh Welding Machine
| Place of Origin | China |
|---|---|
| Brand Name | DIXUN |
| Certification | CE |
| Model Number | DX-GWD-2500 |
| Minimum Order Quantity | One set |
| Packaging Details | The fence mesh welding machine is nude packaging. Need one 20 ft container to load. |
| Delivery Time | 30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 6 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fence Mesh Welding Machine | Wire Diameter | 3-6mm |
|---|---|---|---|
| Voltage | 380V/50HZ/Customized | Welding Speed | 50-75 Times/min |
| Color | As Requirement | Usage | Product Fence For Protect Highway And Railway |
| Rated Capacity | 150KVA*6 | Mesh Width | 1200/1500/2000/2500mm |
| Control System | PLC+Touch Screen | Cross Wire Space | 50-200mm |
| Dimensions | 7000mm*3200mm*1700mm | Current | 200A |
| Longitudinal Wire Type | 50-200mm | Cross Wire Type | 50-300mm |
| High Light | 200mm fence mesh welding machine,50mm fence mesh welding machine,cnc fence mesh welding machine |
||
Product Description
Mesh Size 50-200mm Wire Diameter 3-6mm CNC Fence Mesh Panel Welding Machine
CNC Fence Mesh Panel Welding Machine Introduction:
CNC fence mesh panel welding machine is designed for the production of fencing mesh for high-quality 3D wire mesh fence. The fence mesh panel welding machine is suitable for the production of dimensionally accurate meshes in all lot sizes. The wires can be pre-straightened and cut.
1. Wire diameter: 3-6mm
2. Line wire from: coil wire.
Cross wire from: pre-cut wire.
3. Control system :synchronous control with PLC,touch screen board.
4. Firm welding, little noise, high speed
5. Finished production: panel mesh
6. Application materials: iron wire, stainless steel wire, galvanized wire, rebar
7. Warranty :Two years for complete machine,except for consumable parts
CNC Fence Mesh Panel Welding Machine Features:
1. CNC fence mesh panel welding machine adopts electrical and electronic synchronous control technique. Controlled by PLC, welding time and sub-control are accurate.
2. Two kinds of input methods, touch screen and keyboard, make operation more intelligentize and reasonable.
3. Cross wire drops from hopper automatically. Dropping positon is accurate.
4. Line wires pre-straighten and pre-cut by wire straightening and cutting machine. High-speed roller type straightening machine made line wires straighten.
5. Mesh pulling driven by servo motor, pull the panel back and forth, pneumatic lock the cross wire, ensure position accurate.
CNC Fence Mesh Panel Welding Machine Technical Parameters:
| Reference items | The main parameter | ||
| model | DX-GWD-2100 | DX-GWD-1600 | DX-GWD-1200 |
| wire diameter | 3-6mm | 3-6mm | 3-6mm |
| welding aperture | 50x50-300x300mm | 50x50-300x300mm | 50x50-300x300mm |
| width of mesh | 2100mm | 1600mm | 1200mm |
| number of electrodes | 40(customized) | 32(customized) | 24(customized) |
| welding speed | 40-60times/min | 40-60times/min | 40-60times/min |
| rated voltage | 380V(customized) | 380V(customized) | 380V(customized) |
| rated capacity | 5x125KVA(customized) | 4x125KVA(customized) | 3x125KVA(customized) |
| overall dimension | 2.8x1.7x1.5m | 2.3x1.7x1.5m | 1.9x1.7x1.5m |
| machine weight | 4T | 3.5T | 3T |
| line wire&cross wire form | pre-straightening and pre-cutting wire | pre-straightening and pre-cutting wire | pre-straightening and pre-cutting wire |
| operation | touch-screen board | touch-screen board | touch-screen board |
CNC Fence Mesh Panel Welding Machine Applications:
The fence mesh panel is widely used in air port, higway,railway etc.

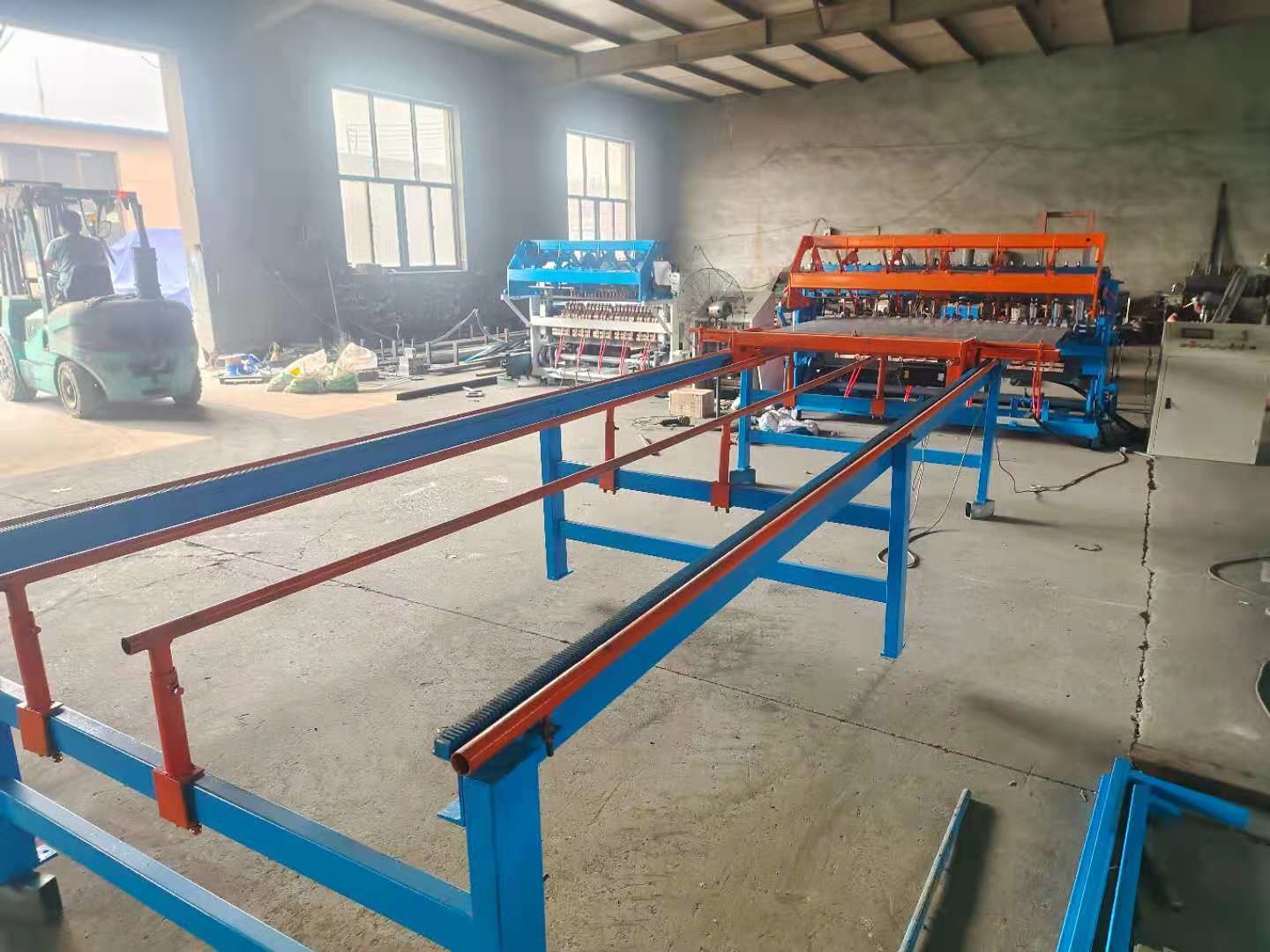

CNC Fence Mesh Panel Welding Machine Photos:
