Rebar Diameter 5-12mm Hole 100*100mm Weld Mesh Making Machine

Place of Origin China
Brand Name DIXUN
Certification CE
Model Number DX-GWC-2500D
Minimum Order Quantity One set
Packaging Details The wire mesh welding machine is nude packing. Need one 40 ft container to load.
Delivery Time 45 working days
Supply Ability 6 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Wire Mesh Welding Machine Wire Diameter 5mm-12mm
Certification CE Warranty 2 Years
Color Can Be Customized Voltage 380V/440V/415V/220V
Welding Speed 40-60 Times/minute Type Fully Automatic
Condition New Usage Security Reinforcing Concrete Wire Mesh Welding Machine Made In China
Mesh Width 2500mm Hole Size 100*100mm
Mesh Length 12m Suitable Material Ribbed Bar,round Bar,galvanized Wire.
High Light

hole 100*100mm weld mesh manufacturing machine


5mm weld mesh making machine


hole 100*100mm weld mesh making machine

Leave a Message
Product Description

Rebar Diameter 5-12mm Hole Size 100*100mm Wire Mesh Welding Machine



Wire Mesh Welding Machine Introduction:


Wire mesh welding machine adopts power electronic synchronous control technology, welding time and separate control welding are managed by automatic control system, human-machine interface, intelligent operation, humanization. Separate the welding transformer to reduce the requirement of power transformer.

Wire mesh welding machine, also called BRC mesh welding machine, Construction mesh welding machine.

The wire mesh welding machine is used to make steel rebar mesh, road mesh, building construction mesh, etc. With more-than-20 years experience in design and manufacture, our wire mesh welding machine is featured by high capacity, easy operation, and precise control.


Wire Mesh Welding Machine Features:


1. Control system Panasonic PLC automatic control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.

2. Cross wire hopper: the stepper motor drives the disk-type device to automatically drop wires, and the hopper has a large capacity of storing wires max up to 1.5 ton. When there is no wire in the hopper, the equipment will automatically stop running.

3. Sending longitudinal wire feeding mechanism: Japan Panasonic servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send wire to the welding position. The equipment is automatically welding.

4. Mesh pulling mechanism: Japan Panasonic servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

5. Water-cooled welding electrodes and a new type of special water-cooling transformer welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.

6. Low-voltage electrical appliances are made of Schneider, well-known brands to ensure the efficient and stable operation of the equipment.

7. The wire mesh welding machine will stop working automatically if there is no cross wires in hopper device.

8. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

9. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.Very easy and convenient to operate.

10. The mesh pulling system is automatically calculated in cycle.No need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling mesh.

11. The suitable material of wire mesh welding machine: ribbed bar,round bar.


Wire Mesh Welding Machine Technical Parameters:


Model DX-GWC-2000D DX-GWC-2500D
Rebar diameter 5-12mm 5-12mm
Mesh width 2000mm 2500mm
Mesh length 3-12m 3-12m
Longitudinal wire space 100-250mm 100-250mm
Cross wire space 100-300mm 100-300mm
Welding transformer 160KVA*10pcs 160KVA*12pcs
Welding electrode 20PCS 24PCS
Material of welding electrode CuCrZr CuCrZr
Size of welding electrode 40*40*40mm 40*40*40mm
Pulling mesh system By servo motor By servo motor
Send longitudianl wire system By servo motor By servo motor
Machine weight 7500kg 8500kg
Machine dimension 9500*2700*2200mm 9500*3200*2200mm
Power consumption  20KW/hour 23KW/hour


Wire Mesh Welding Machine Applications:


The finished product reinforcing mesh panel is widely used in road mesh,highway, bridge construction etc.


Wire Mesh Welding Machine Photos:

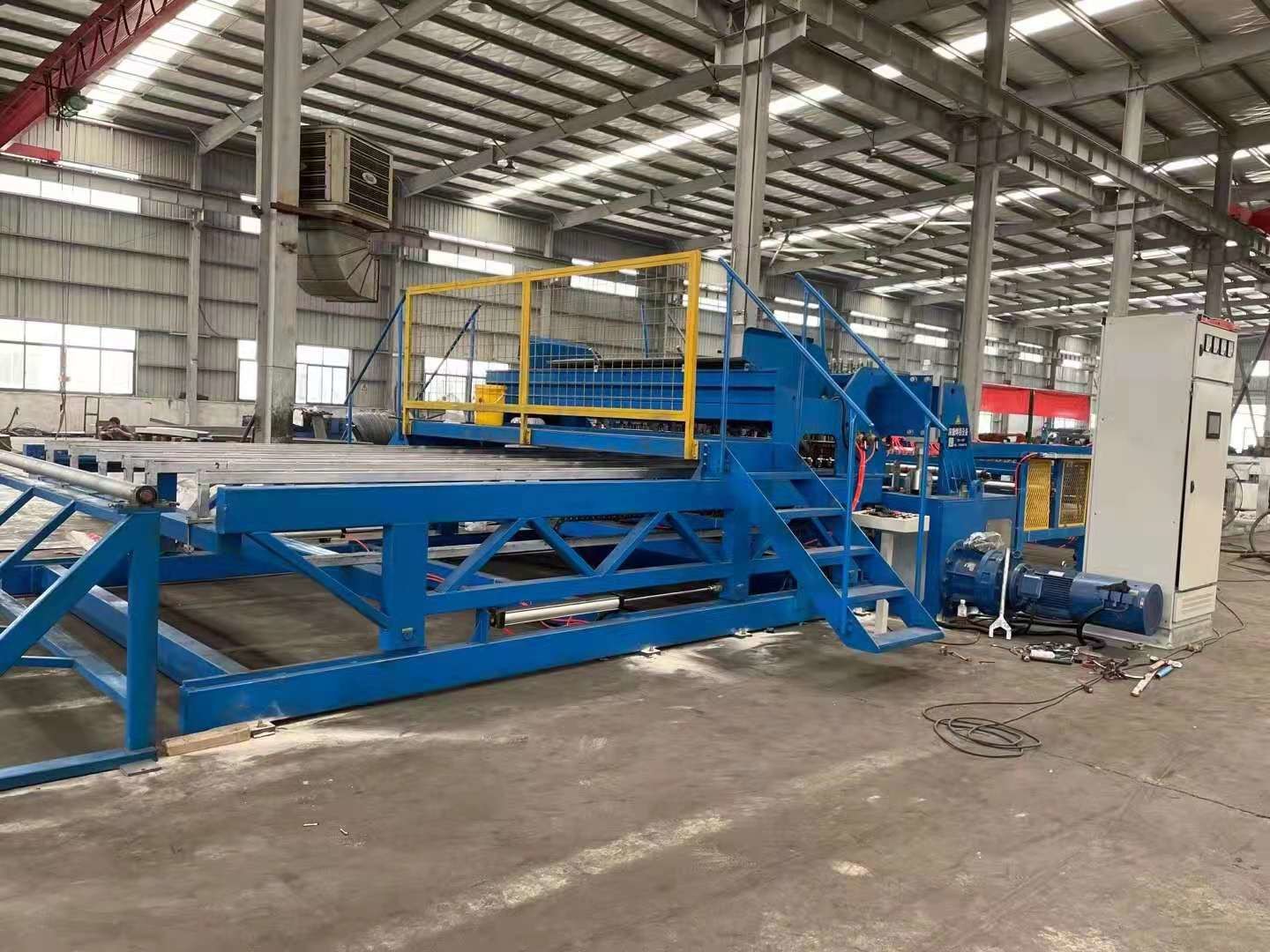

Rebar Diameter 5-12mm Hole 100*100mm Weld Mesh Making Machine 0

Rebar Diameter 5-12mm Hole 100*100mm Weld Mesh Making Machine 1

Rebar Diameter 5-12mm Hole 100*100mm Weld Mesh Making Machine 2

Rebar Diameter 5-12mm Hole 100*100mm Weld Mesh Making Machine 3
